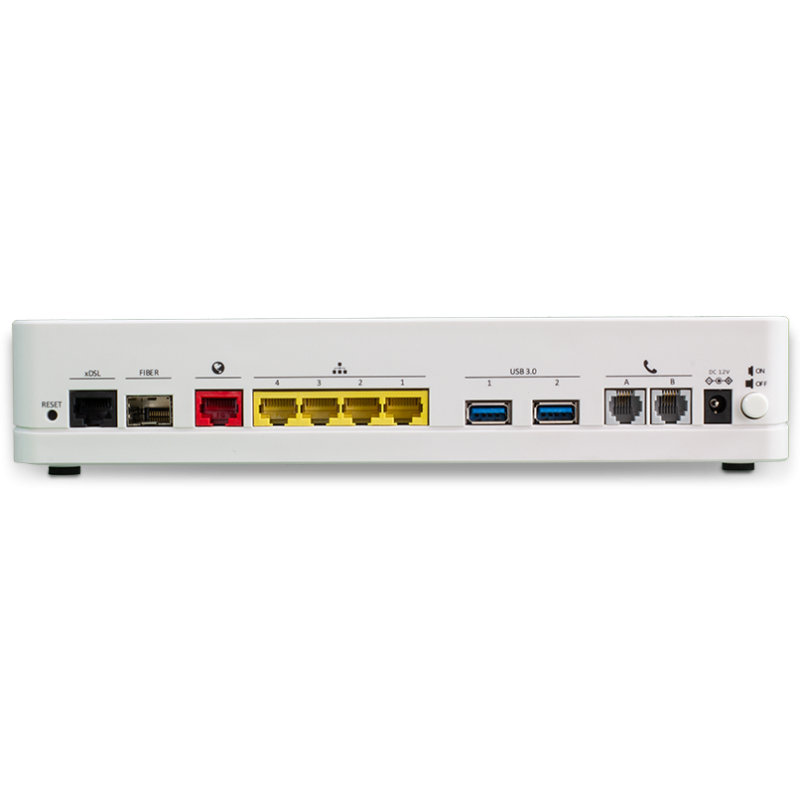

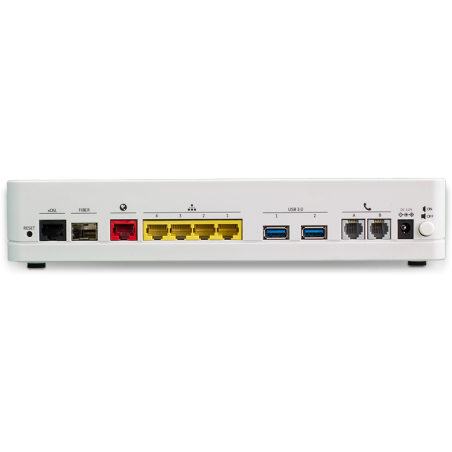

Vodia IO - All-in-One Router with PBX
Vodia IO - All-in-One Router with PBX
Vodia IO - All-in-One Router with PBX
Vodia IO - the all-in-one broadband router
Everything you need for on-site communication
VoIP has found its way into the router.
With Vodia I O, self-employed individuals and small and medium-sized businesses receive a router with DSL, fiber optic connection and Ethernet, Wi-Fi, a switch, a firewall, a powerful telephone system plus a built-in DECT base station and analog telephone connections. Combined with the Intel® router platform, this is the ideal solution for small businesses and self-employed individuals – such as shops, doctor's offices, law firms, or restaurants – that need internet access and telephony but are wary of the complexity of multiple devices.
With Vodia IO, you don't need to run a dedicated device on your LAN for your phone server (see our article here ). This not only saves you the cost of purchasing multiple devices, but also eliminates the need to manage multiple devices, saving you time and energy.
Vodia IO handles up to 16 simultaneous phone calls, making it an excellent choice for a wide variety of office types. The built-in broadband router offers the latest high-speed options with Gigabit WAN, fiber optic, VDSL2+, or ADSL2+. Vodia IO provides you with all the necessary options to manage your entire company's local network, including LAN and WLAN (2.4 and 5 GHz).
The integrated FXS ports and DECT base station allow you to connect multiple voice devices in combination with your standard SIP devices. The analog ports are suitable for connecting POS devices, door intercom systems, or fax machines.
A wide range of DECT devices makes office language mobility robust and simple.
The router and telephone system are easily managed via the web interface. The built-in OLED display can be used for simple configurations such as WPS pairing.
Only available in the EU
Main features
Plug and Play:
Integrate VoIP phones within seconds via the web interface
xDSL:
Connect to broadband internet via ADSL or VDSL
Fiber optic:
Use your fiber optic connection for gigabit internet
SIP trunks:
Choose from a list of available SIP trunk providers
SIP devices, DECT:
Connect your favorite phone from a long list of available devices
Mobile phones:
Use mobile phones as if you were in the office
Management via browser:
Manage everything via a web interface
WiFi:
Use state-of-the-art Wi-Fi with built-in directional antennas
- Broadband router with a variety of supported standards: ADSL2+, VDSL2+, fiber optic, WAN
- Ethernet Gigabit Switch with 4 ports
- 2 USB 3.0 ports
- 2 FXS ports for analog devices such as door intercoms, alarm systems or credit card terminals
- Integrated DECT base station for up to 6 handsets based on CAT-iq 2.0
- WiFi 802.11ac with 2 SSIDs
- Up to 16 simultaneous calls
- 128 MB memory
Business communication
Vodia IO will enhance your daily communication. With features designed to increase productivity, foster collaboration, and enable better internal and external communication, Vodia IO lets you experience what 21st-century communication is all about.
Designed to industry standards with a sleek design, Vodia IO offers a solution for all your devices—DECT, FXS, and VoIP. And when used with high-quality SIP phones or the Vodia softphone, you benefit from Vodia's reliability and interoperability as your one-stop shop for business communications.
Configure and manage the entire system using Vodia IO's user-friendly configuration utility, easily accessible via a web interface. Set up users, IP phones, and SIP trunks quickly and easily, and make additions and changes in a flash. Reports, charts, system alerts, and notifications give you peace of mind that your Vodia IO, and therefore your business communications, are running smoothly and securely.
Overview of telephony functions
Transferring, parking, and recording calls Recording calls with corresponding announcements Audio conferences with and without invitations Redirecting and incorporating mobile phones Automatic announcements, control via telephone keypad Call center functions including listening in and trainer mode Receiving faxes and forwarding them as faxes Mailbox functions, forwarding as email ... and many more functions
Technical overview:
Broadband router with DSL, fiber optic support and WAN access
IEEE 802.11ac and 802.11bgn WiFi
Integrated DECT base station for up to 6 handsets
Ethernet Gigabit Switch with 4 ports
2 USB 3.0 ports
2 FXS connectors for analog devices
Pre-installed telephone system for up to 16 simultaneous calls
Router specification:
Router for IPv4 and IPv6
Built-in DHCP server with support for Option 66
Firewall with NAT / DMZ
NTP client and server
Support for various DSL standards VDSL2+ or ADSL2+
Support for Gigabit fiber optic Internet access via plug-in module
Gigabit WAN connector for external modem or external firewall
WiFi support:
Support for 2.4 and 5 GHz WLAN frequency bands
802.11ac WiFi (up to 1,300 Mbps), 802.11bgn WiFi (up to 600 Mbps)
Built-in directional antennas
Authentication of users for public Internet access
DECT base station:
DECT base station for up to 6 handsets and 3 simultaneous calls
Support for DECT CAT-iq 2.0 and DECT GAP
Registering DECT devices via Vodia IO Display
Software specification
Vodia PBX for up to 50 extensions and 16 simultaneous calls*
Standard license for 4 simultaneous calls pre-installed
Web-based administration interface can also be used for remote maintenance
Automatic provisioning of VoIP phones in the LAN
Possibility to record calls depending on license (requires external storage)
Mobile integration:
Mobile devices can be operated in parallel with VoIP phones
Automatic detection of users when they call the telephone system
Automatic provisioning of popular VoIP apps
Call back voicemail messages
SMS notifications
SIP Trunks:
Large number of predefined SIP trunks
Support for UDP, TCP and TLS-based SIP trunks
Support for registration and IP address trunks
Possibility to provision SIP trunks via the license
Security:
Encryption of calls via SIP/TLS, SRTP/SDES and ZRTP
HTTPS server, client and provisioning
Support for ACME (letsencrypt.org) X.509 certificate management
TLS 1.0, 1.1 and 1.2 support
Checking the quality of user passwords
Sign in with your Google account
Passwords and other sensitive information are stored encrypted
Automatic classification of IP addresses (DoS defense)
Manually enabling IP addresses for administrators and users
FTP and TFTP server sandbox for provisioning specific LAN devices
Anti-port scanner mechanism
Network:
Far-end and near-end NAT traversal through session border controllers
IPv4 and IPv6 support for SIP, HTTP and other protocols
DNS A, AAAA, SRV, NAPTR and ENUM support
Multiple ports for SIP, HTTP, TFTP, FTP, LDAP and NTP
Quality of Service (QoS) support
Automatic determination of the public IP address
Monitoring and reporting of packet throughput
SNMP server, NewRelic client
SMTP (email) client
Hardware specifications:
Dimensions: 265 x 195 x 55 mm
Weight: 930 g
Memory: 64 MB built-in memory, of which approx.
Power consumption: 42 W max
Ambient temperature: 0-40 °C
Wall mounting: Two brackets
Display: 32 x 128 B/W
