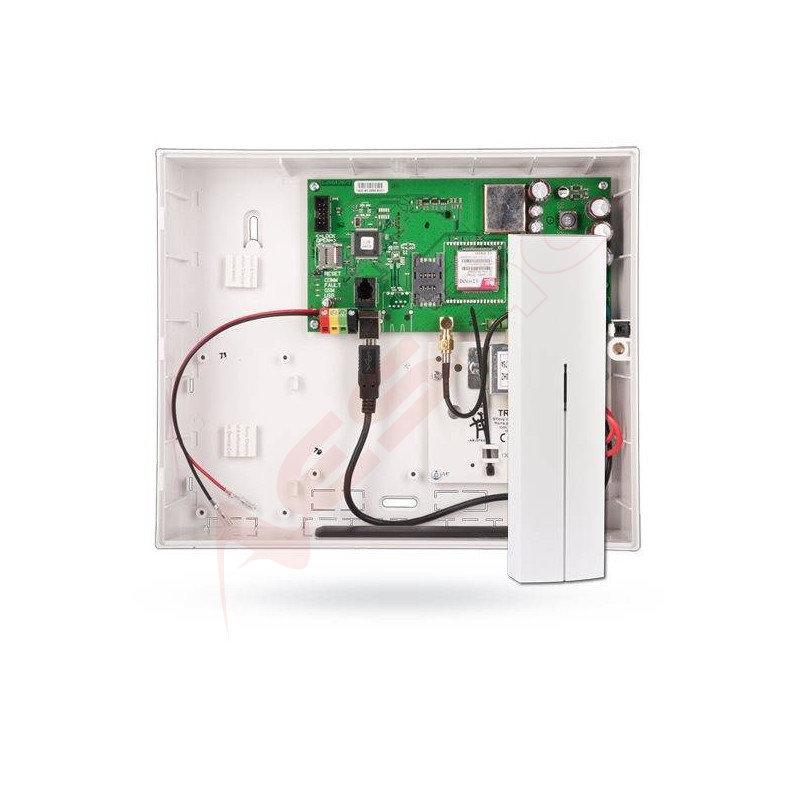

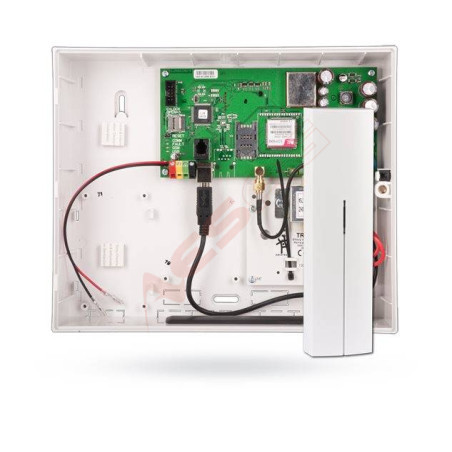

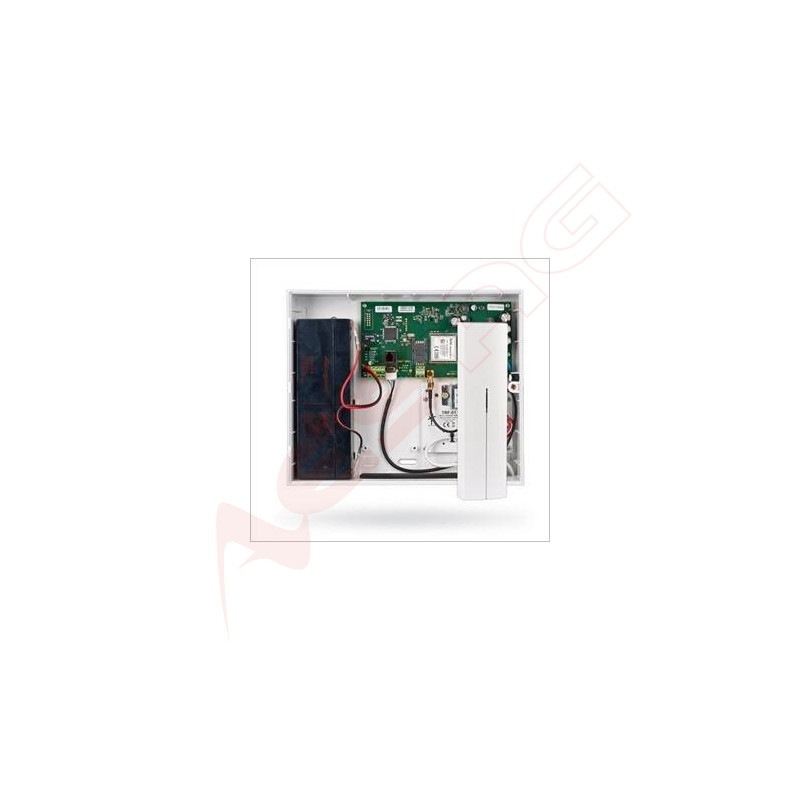

JABLOTRON 100 - Zentrale incl. LAN, Funk & 3G-Module

The JABLOTRON JA-100 alarm system with its innovative, revolutionary, easy-to-use control is a comprehensive solution for protection against burglary, fire and much more. The highest level of security is guaranteed to be extremely easy to use , while cloud-based smart home solutions provide unprecedented convenience.

It is a highly professional security system which requires installation and programming by a trained specialist installer.

The protection can be set up individually and precisely to meet the needs of the owner. Be it as a bus system, as a complete radio system, or as a combination of both.

The flexibility of the JA-100 alarm system allows the system to be used for single-family and multi-family households, offices, companies and even large building complexes . The alarm system remains particularly easy to operate for all users.

These seemingly incompatible requirements are made possible with a revolutionary patented operating system . It is not just the way it is operated that is new, but the entire system architecture. The range of components, the bus arrangement, a new radio protocol, the communication options with cloud services and apps for remote service and user access make the alarm system a reliable and modern solution for electronic security.

Patented control

The system can be operated by up to 300 different users . Thanks to the easy-to-understand switching and display segments with green and red LEDs , the system is intuitive and easy to control.

The switching segments, with their traffic light logic , also indicate the status of the individual alarm areas and PG switching outputs.

The system is operated by pressing the respective segment and verified by entering a code on the keyboard or inserting the RFID card or chip tag. Up to 20 switching and display segments can be connected one above the other to an operating device.

System Properties

The JABLOTRON JA-100 alarm system was designed according to EN 50131 and is certified up to security level 2

The alarm control panel combines the possibilities of a modern bus architecture with those of radio-based peripheral connections. The radio communication is based on a bidirectional transmission protocol newly developed for the JA-100 , which is equipped with multiple security layers and integrity functions against intentional and accidental data collisions in the 868 MHz frequency band.

The radio ranges can be increased almost as desired by connecting additional radio modules to the bus.

The large JA-106K/106KR alarm control panels have up to 120 radio or bus zones/detection lines available for the assignment of detectors, keypads and control elements, sirens, etc. The system can be divided into 15 sections/alarm areas and 32 programmable outputs can be used.

communication

The control panel already has a built-in GSM/GPRS module (JA-101K/101KR) or a built-in GSM/GPRS/LAN module (JA-106K/106KR), which enables voice, SMS or GPRS communication with the users and/or the alarm receiving center. It can be supplemented with a dialer for the PSTN landline.

In addition to the function of transmitting information from the system, the modules also function as a modem for full remote access, monitoring, programming and also controlling the outputs (e.g. of household appliances). Remote access can be achieved via Internet apps for smartphones, SMS commands and USB connection of the F-Link configuration software.

A wide range of peripheral detectors in bus and radio versions are available for individual property security. These include innovative detector types such as a combined PIR and medium-wave motion detector, an "invisible" magnetic detector for hidden installation, a motion detector with integrated glass breakage sensor or motion detectors and light barriers for outdoor use.

For fire protection, an optical and thermal dual detector with high detection reliability is used.

Modular design - The variants of the Jablotron 100 in comparison

There is hardly an object that cannot be optimally secured with the JABLOTRON JA-100. This is why you can choose from 4 different types of control panel.

• The JA-100K is the smaller of two variants with LAN module, 32 detection lines, 4 areas, without radio module (End Of Life)
• The JA-100KR is the smaller of two variants with LAN module, 32 detection lines, 4 areas, with radio module (End Of Life)
• The JA-101K is the smaller of two variants, with GSM/GPRS module, 50 detection lines and 6 areas, without radio module. (End Of Life)
• The JA-101KR is the smaller of two variants, with GSM/GPRS module, 50 detection lines and 6 areas, with radio module. (End Of Life)
• The JA-101KR-LAN3G is the smaller of two variants, with GSM/GPRS and LAN module, 50 detection lines and 6 areas, with radio module. (End Of Life)
• The JA-103K is the smaller of two variants, with LAN module, 50 detection lines, 8 areas, without radio module
• The JA-103KR is the smaller of two variants with LAN module, 50 detection lines, 8 areas, with radio module
• The JA-106K is the larger of two variants, with GSM/GPRS/LAN module, 120 detection lines and 15 areas, without radio module. (End Of Life)
• The JA-106KR is the larger of two variants, with GSM/GPRS/LAN module, 120 detection lines and 15 areas, with radio module. (End Of Life)
• The JA-106K-3G is the larger of two variants, with 3G GSM module, LAN module, 120 detection lines and 15 areas, without radio module. (End Of Life)
• The JA-107K is the larger of two variants with LAN module, 230 detection lines, 15 areas, without radio module
• The JA-107KR is the larger of two variants with LAN module, 230 detection lines, 15 areas, with radio module

Product Highlights:

• up to 50 radio or bus lines
• up to 50 user codes
• up to 8 security areas
• up to 16 programmable PG outputs
• 20 independent timers
• SMS and voice reports from the system to up to 8 users
• Remote control via SMS, voice menu and the MyJABLOTRON portal
• 4 adjustable alarm receiving points (AES)
• 5 selectable protocols for AES transmission
