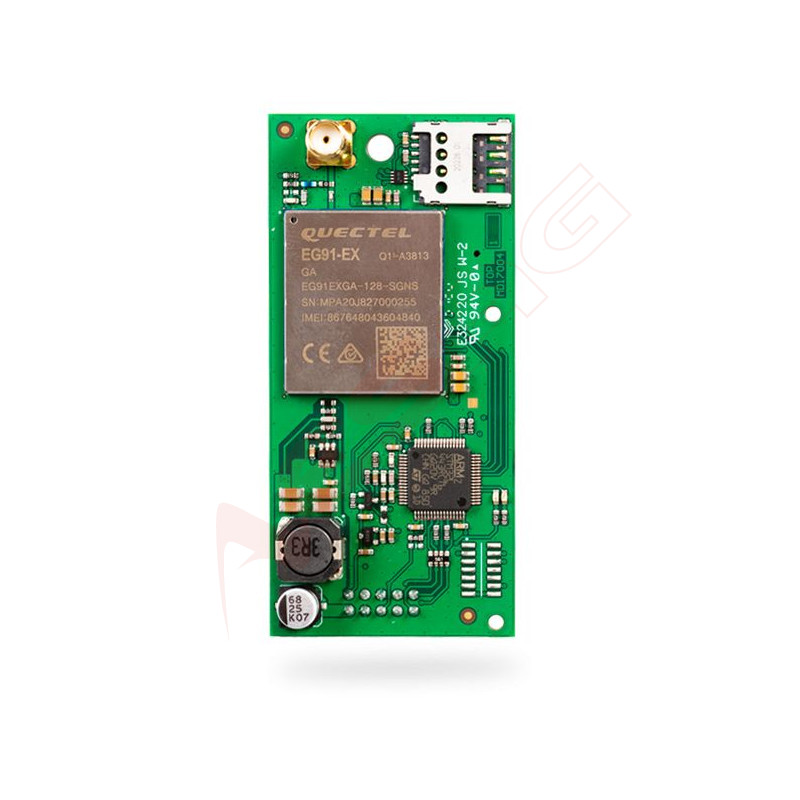

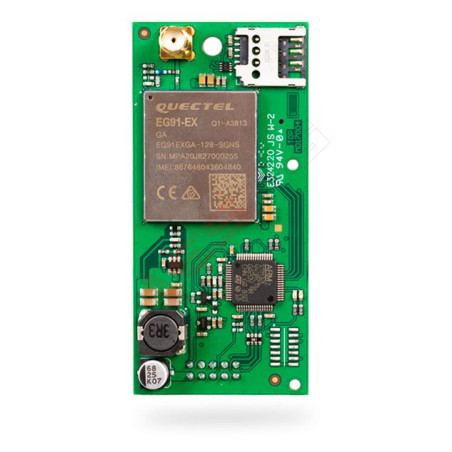

JABLOTRON 100 - GSM-Module 2G, 3G & 4G (LTE)
The GSM communication module is used in the control panels of the JA-101K and JA-106K security systems of the 100+ series from JABLOTRON.
JABLOTRON 100 - GSM-Module 2G, 3G & 4G (LTE)
A control panel equipped with the JA-194Y module can communicate with a monitoring station via GSM networks to transmit an alarm via SMS and voice messages. It also allows the control panel to be configured remotely using the F-Link software.
Product Highlights:
- Compatible with the JA-101x & JA-106x systems
- Additional communication channel
- Plug-in module
- Multiband, 2G, 3G and 4G (LTE)
Technical data
| Power supply of the module | 9 - 15 V DC (from the control center) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Average power consumption | approx. 9 mA (depending on the signal strength of the GSM network) | ||||||||||||
| Peak power consumption | 720mA | ||||||||||||
| GSM frequency band | 2G (GSM, EDGE) 900/1800MHz 3G 900/2100MHz (B8, B1) 4G (LTE) 800 / 900 / 1800 / 2100 / 2600 MHz (B20, B8, B3, B1, B7) |
||||||||||||
| I&HAS classification | Safety level 2/environmental class II | ||||||||||||
| Dimensions | 70x37x25mm | ||||||||||||
| Weight | 23g | ||||||||||||
| Operating environment | General interior areas | ||||||||||||
| operating temperatur | -10 °C to +40 °C | ||||||||||||
| Average operating humidity | 75% RH, non-condensing | ||||||||||||
| Compatible with RCT (control center receiver) | Complies with the communication protocol | ||||||||||||
| SPT communication type | SPT Type Z (central unit expansion module) | ||||||||||||
| AS/SPT interface | Forwarding | ||||||||||||
| Supported ATS classes/communication protocol |
|
||||||||||||
| Certification Authority | Trezor Review (No. 3025) | ||||||||||||
| Corresponds | EN 62368-1, ETSI EN 301 511, EN 50130-4, ETSI EN 301 489-1, ETSI EN 301 489-52, ETSI EN 301 486-19, ETSI EN 301 908-1, ETSI EN 301 908-13, ETSI EN 301 908-2, ETSI EN 303 413, EN 55032, EN 50665, EN 50581, EN 50131-1, EN 50131-3, EN 50131-10, EN 50136-1, EN 50136-2, ANSI SIA DC-09 |
