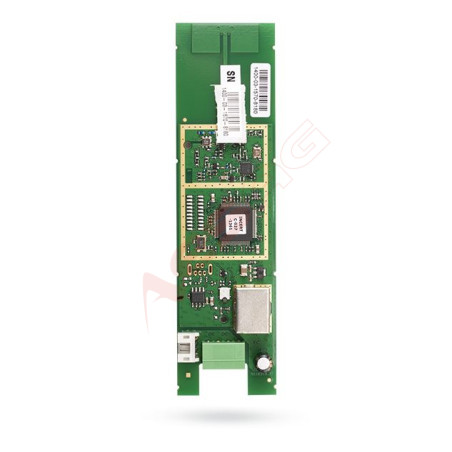

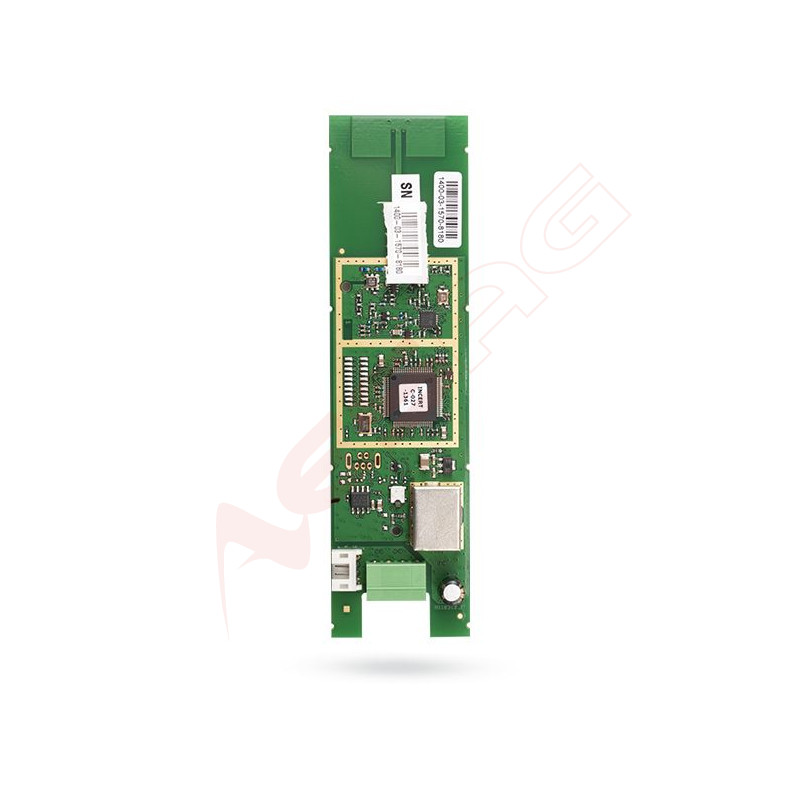

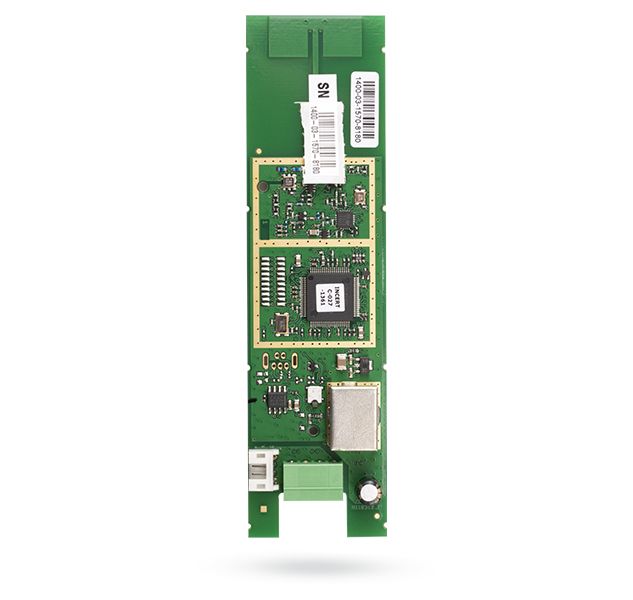

JABLOTRON 100 - Radio module-Platine
The JA-111R wireless bus module is used to connect all wireless devices of the JABLOTRON 100+ system. To perfectly cover all monitored premises, up to 3 JA-111R modules can be installed in one system.
JABLOTRON 100 - Radio module-Platine
The electronic unit is located in the front part of the cover and is equipped with a plug-in terminal block that allows for convenient connection of cables. In the rear part there are passages for cables.
The module communicates with the control panel bus and is powered by it. The module is designed for installation outside the control panel and is used as the second or third module in the system. If you need a radio module inside the control panel, we recommend purchasing a control panel with a radio module: the JA-10xKR-xx unit.
Product Highlights:
- Module can be installed directly in the control panel or mounted remotely
- Multiple modules can be operated
Technical data
| Compatible with | F-Link from 1.4.0 |
|---|---|
| Electricity | from the BUS of the control center 12 V DC (9 … 15 V) |
| Power consumption in standby mode | 35mA |
| Power consumption for cable selection (maximum) | 80mA |
| Communication band | 868.1 MHz, JABLOTRON protocol |
| Maximum radio frequency power | 25mW |
| RF range | 300m |
| Dimensions | 43x160x23mm |
| Weight (PCB only) | 70g |
| Classification |
Safety class 2 / Environmental class II / ACE type B (According to EN 50131-1) |
| Operating environment | General interior areas |
| Operating temperature range | -10 °C to +40 °C |
| Average operating humidity | 75% RH, non-condensing |
| Certification body | Trezor Test sro (No. 3025), Telefication BV |
| Corresponds | EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3+A1, ETSI EN 300 220-1-2, EN 50130-4 ed. 2+A1, EN 55032, EN 62368-1, EN 50581, T 031 |
| Operation according to | ERC-REC 70-30 |
