The second generation intelligent control panel with four communication channels, a new powerful processor, 3 times more RAM and twice as much flash memory. Hub Plus monitors the operation of all Ajax sensors and immediately alerts the system owner and the security company. - (Alarm SIM card from DATAMOBILE included)

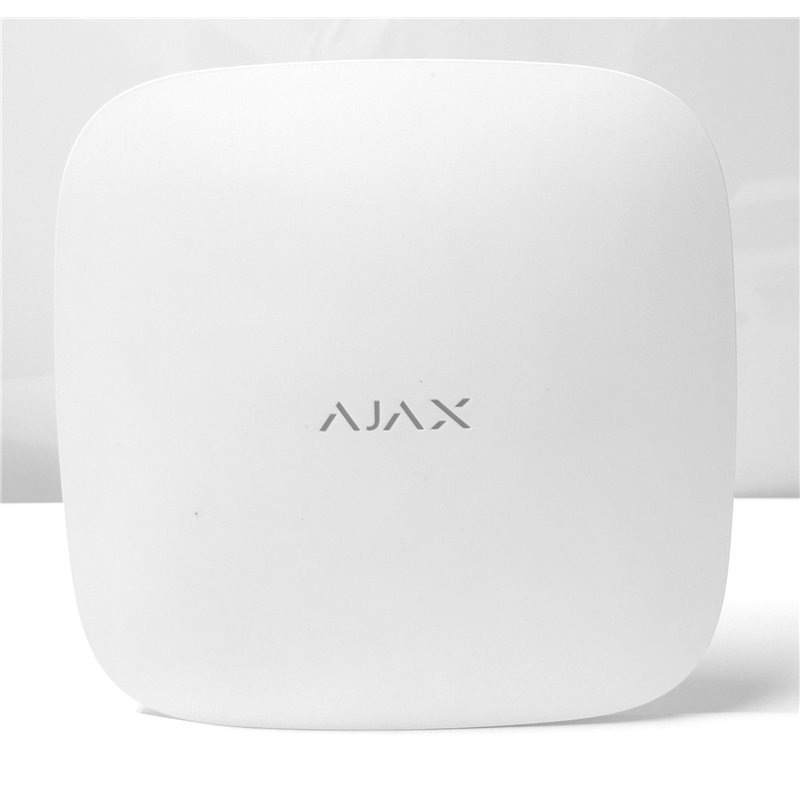

AJAX HUB PLUS alarm system
Second generation intelligent control panel with four communication channels (2x 3G-GSM, WiFi & LAN) , a new powerful processor, triple RAM capacity and double flash memory. The AJAX HUB PLUS monitors the operation of all Ajax detectors and immediately notifies the owner and security service if necessary.
One system for everything - AJAX HUB PLUS protects large areas:
Hub Plus protects large facilities with a large number of rooms and people. With the new powerful processor and increased memory capacity, the functions of the control panel have been expanded: up to 150 detectors and 50 cameras can be connected to the hub, and you can add 50 users and create 25 groups for security management.
Increased stability & reliability:
The AJAX HUB PLUS has a GSM module with two SIM card slots , each supporting 2G and 3G networks . Now you can use SIM cards from two different providers without any communication errors. The hub instantly switches between 2G and 3G networks. If one SIM card does not respond, the second one is automatically activated.
Communication channels
The AJAX HUB PLUS is the absolute market leader in terms of the number of communication channels: the control panel can be connected to the Internet via Wi-Fi, Ethernet, WCDMA and GSM. Together, these functions ensure an extremely stable connection and instant sending of alarms to the owner's smartphone and to the monitoring center.
The AJAX HUB PLUS allows the use of a redundant Internet connection , as the central unit is connected to networks of two independent communication providers: on the one hand to a main connection via Ethernet, on the other hand to an emergency network via Wi-Fi. If the connection of one provider fails, the hub remains connected and continues to monitor the situation at the site.
Simplifies installation and setup:
Hub Plus now has a WiFi module, so there is no need to lay a cable to connect to the router. The control panel is ready to use immediately. Setup is done via the mobile application and the detectors are connected with a single click. The device can be mounted in a few minutes using the SmartBracket mount.
Installing Hub 2 takes just a few minutes. Connect to the Internet and plug in the power cable. Then scan the QR code with the Ajax app. In most cases, your devices do not need to be set up additionally. Hub 2 will work as soon as the system is online.
Increase the potential of your security system with Ajax Scenarios to actively counteract detected threats and automate your routines. Set up a night mode activation on schedule; automatically turn off all office lights by arming the system; program street lights to illuminate intruders when they trigger an outdoor motion detector; or install a sustainable flood protection system. The system runs scenarios even if the connection to the Ajax Cloud Server is lost.
The AJAX HUB at a glance:
| HUB | HUB2 | HUBPLUS | HUB 2 PLUS | |
|---|---|---|---|---|
| Devices | 100 | 100 | 150 | 200 |
| Cameras and DVRs | 10 | 25 | 50 | 100 |
| ReX | 1 | 5 | 5 | 5 |
| user | 50 | 50 | 99 | 200 |
| Security areas | 9 | 9 | 25 | 25 |
| Scenarios 1 | 5 | 32 | 64 | 64 |
| Support photo confirmation of alarms | No | Yes | No | YES (MotionCAM) |
| Communication channels | 2G 1xSIM Ethernet |
2G 2хSIM Ethernet |
2G&3G ( 2xSIM) |
2G, 3G & 4G LTE ( 2хSIM ) Ethernet Wi-Fi |
| Model | AJAX HUB PLUS |
| Maximum number of connected devices | 150 |
| Maximum number of groups | 25 |
| Maximum number of hub users | 99 |
| Number of connectable ReX | 5 |
| Number of scenarios | 64 |
| Sabotage contact | Yes |
| Frequency band | 868.0-868.6MHz |
| Effective radiant power | 8.20 dBm / 6.60 mW (limit 25 mW) |
| modulation | GFSK |
| Radio signal | Up to 2,000 m (open field) |
| Max. Video Cameras/DVRs | 50 |
| Mobile APP (compatibility) | Android 4.1 or higher iOS 9.1 or higher |
| Communication channels | 2G (GSM900/DCS1800) 3G (WCDMA 900/ 2100 (B8/B1) WiFi (802.11 b/g/n) Ethernet |
| Switching between 2G and 3G | immediately |
| Switching between SIM1 and SIM2 | 4 minutes |
| Communication with the control center | Contact ID, SIA |
| Alarm notification | SMS, call, push notification |
| Power supply | 110 to 240 V Power consumption: 10Wh |
| battery pack | Li-Ion 2 Ah (up to 16 hours of autonomous operation*) |
| processor | POOR |
| operating system | OS Malevich |
| Operating temperature range | From -10 °C to 40 °C |
| Overall dimensions | 163x163x36mm |
| Weight | 350g |
