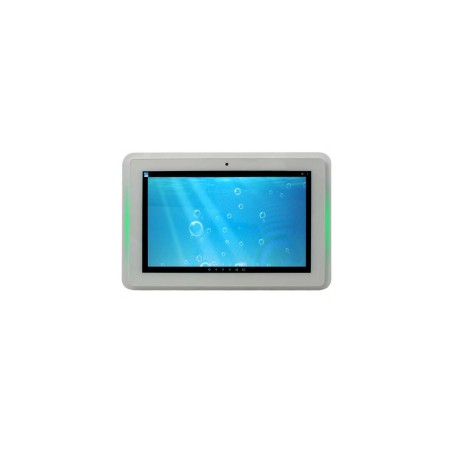

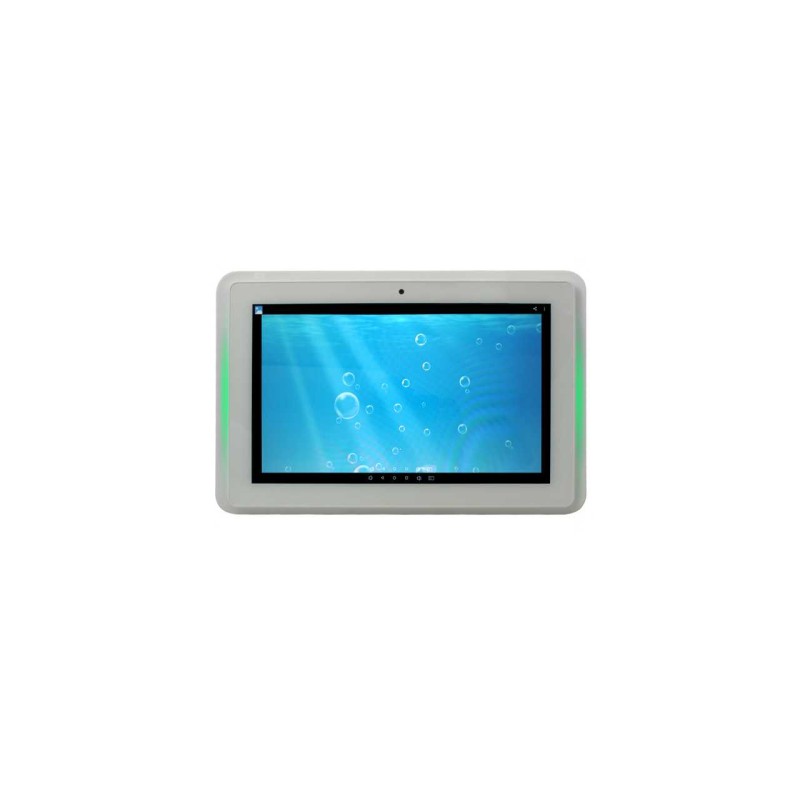

ALLNET Design LED Tablet 10 inch RK3288 Android 10 and NFC, meeting room tablet
ALLNET Design LED Tablet 10 inch RK3288 Android 10 and NFC, meeting room tablet
ALLNET Design LED Tablet 10 inch RK3288 Android 10 and NFC, meeting room tablet
ALLNET Design LED Tablet 10 inch RK3288 Android 10 and NFC, WiFi, PoE, Bluetooth
Includes power supply and ultra-flat wall bracket. RGB LED for displaying warning signals, occupancy of meeting rooms, etc.
Currently tested Android time terminal software:
| PDS time recording | works, but config file must be imported manually, camera is not addressed |
| AIDA time recording | According to the manufacturer, works with our article numbers 174715/174716/174717/174888 and 182897 |
| VIRTIC Mobile Time Recording | Works according to the manufacturer |
Supported NFC cards:
Type Tested
1 ISO14443A OK
2 ISO14443B OK
3 ISO 15693 OK
4 Mifare Classic OK
5 Mifare Classic 4K OK
6 Mifare Classic 8K OK
7 Mifare Ultralight OK
8 Sony Felica OK
9 MIFARE DESFire EV2 OK
10 MIFARE DESFire EV1 OK
system | CPU | RK3288,Quad-core cortex A17,1.8G |
R.A.M. | 4GB (2024) | |
Internal memory | 16 GB | |
Operating system | 10 | |
Touch screen | 10-point capacitive touch | |
Display | Panel | 10.1" LCD IPS panel |
resolution | 1280x800 | |
Active area | 216.96(H)x135.6mm(V) | |
Display mode | Normally black,IPS | |
Viewing angle | 85/85/85/85(L/R/U/D) | |
Contrast ratio | 800 | |
Luminance | 250cd/m2 | |
Aspect Ratio | 16:10 | |
Network | WiFi | 802.11a/b/g/n 2.4/5GHz |
Ethernet | 100M/1000M ethernet | |
Bluetooth | Bluetooth4.0 | |

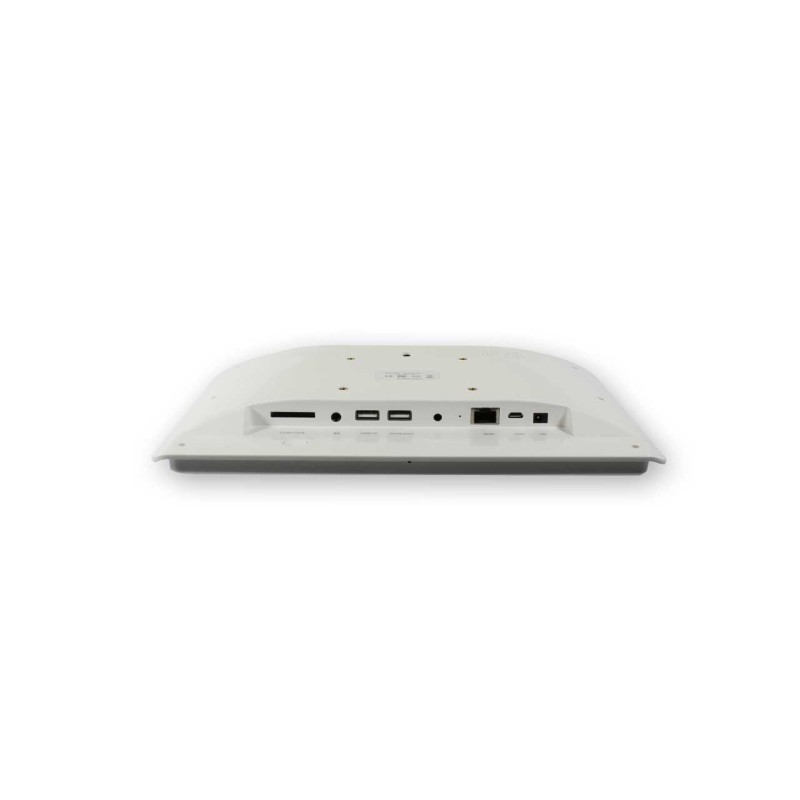

interface | Card slot | SD card |
USB | USB Host | |
MicroUSB | Micro USB OTG | |
USB | USB for serial | |
RJ45 with POE | RJ45 | |
POU | IEEE802.3at/af | |
Power jack | DC power input | |
Earphone | 3.5mm earphone + Micphone | |
Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K |
Audio format | MP3/WMA/AAC etc. | |
photo | jpg | |

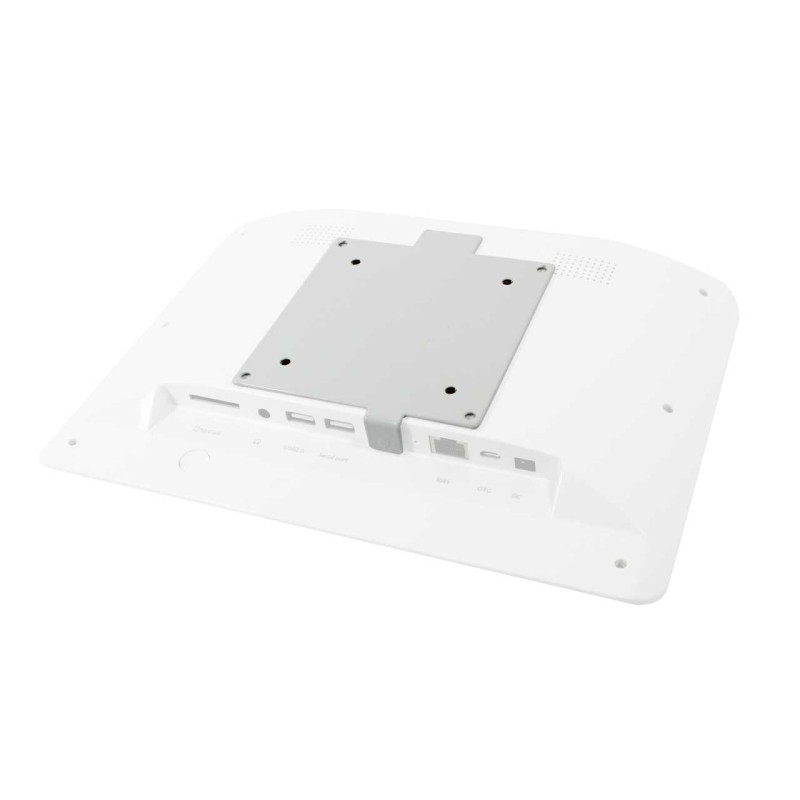

VESA | 75x75mm | |
Speaker | 2*1.5W | |
LED light bar | LED light bar | |
Camera | 2.0MP,Front camera | |
Working temp | 0--40degree | |
Certificates | CE/FCC/RoHS | |
Language | Multi-language | |

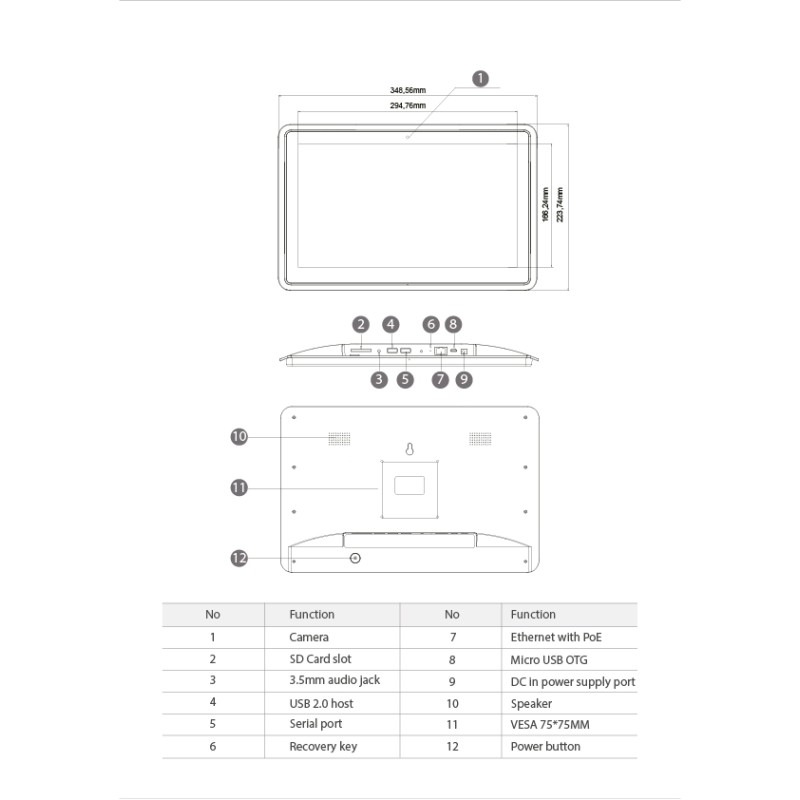

| dimension | 348.5x223.7x34mm | |
Accessories | adapter | Adapter,12V/1.5A |
User manual | yes |
Details about ALLNET Design LED Tablet 10 inch RK3288 Android 10 and NFC, meeting room tablet
Manufacurer:
DT10RK3288A80NFCv2
Weight:
DT10RK3288A80NFCv2
