JABLOTRON 100 - BUS outdoor siren base plate JA-111A-BASE-RB

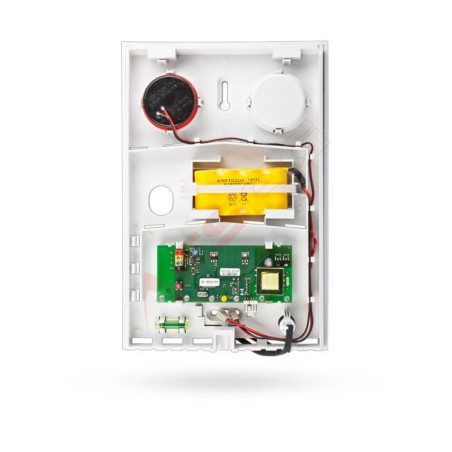

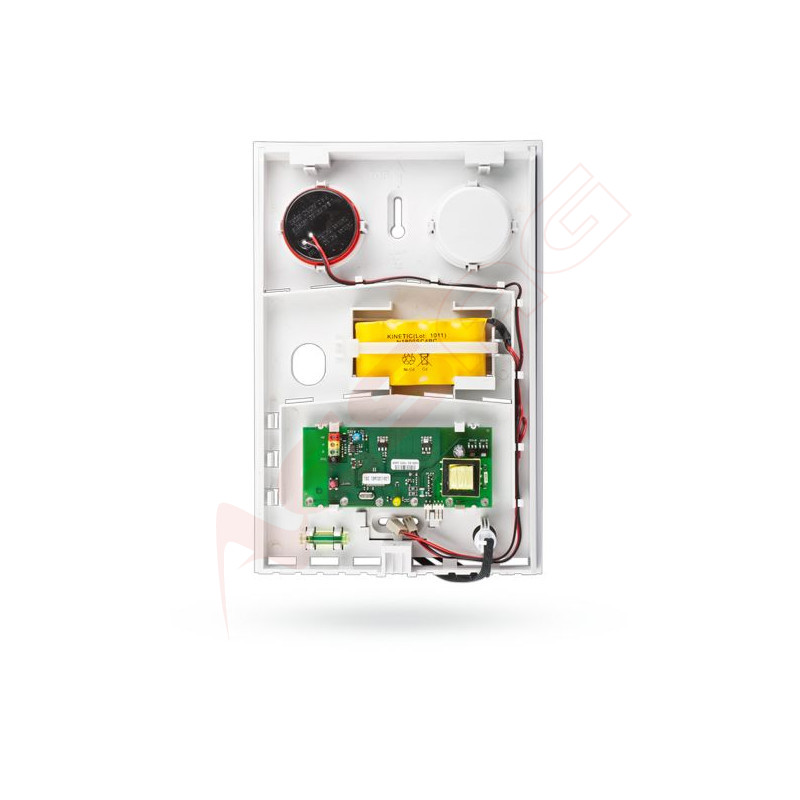

This base plate of the outdoor siren including electronics serves as the basis for the outdoor siren which is then supplemented and completed with the appropriate and desired optional cover.
JABLOTRON 100 - BUS outdoor siren base plate JA-111A-BASE-RB
The BUS siren module JA-111A-Base-RB is the wired basic module for the Jablotron outdoor sirens.
This siren is designed for outdoor use.
A variety of different covers and color variations are available for the basic module. This means that a suitable combination can be selected for every building, facade and application. Please order the desired housing cover separately!
Product Highlights:
- Suitable for the JA-100 system
- acoustic and visual alarm
- modular siren concept with different covers
- Energy saving function in case of power failure
- loud piezoelectric alarm with 110 dB/m
Technical data:
- Power supply via the control unit's BUS, 12 V
- Occupies a position in the JA 100 system
- Power consumption in energy saving mode during power failure: 5 mA
- Power consumption when charging the battery: 50 mA
- Backup battery: NiCd battery 4.8 V / 1800 mAh
- Battery life: approx. 3 years
- Siren: piezoelectric, 110 dB/m
- Dimensions: 200 x 300 x 70 mm
- Operating temperature range: -25 to 60 °C
- Environmental conditions: EN 50131-1: Outdoor IV
- Safety level: Grade 2, EN 50131-1, EN 50131-4
- Protection class: IP 34D
