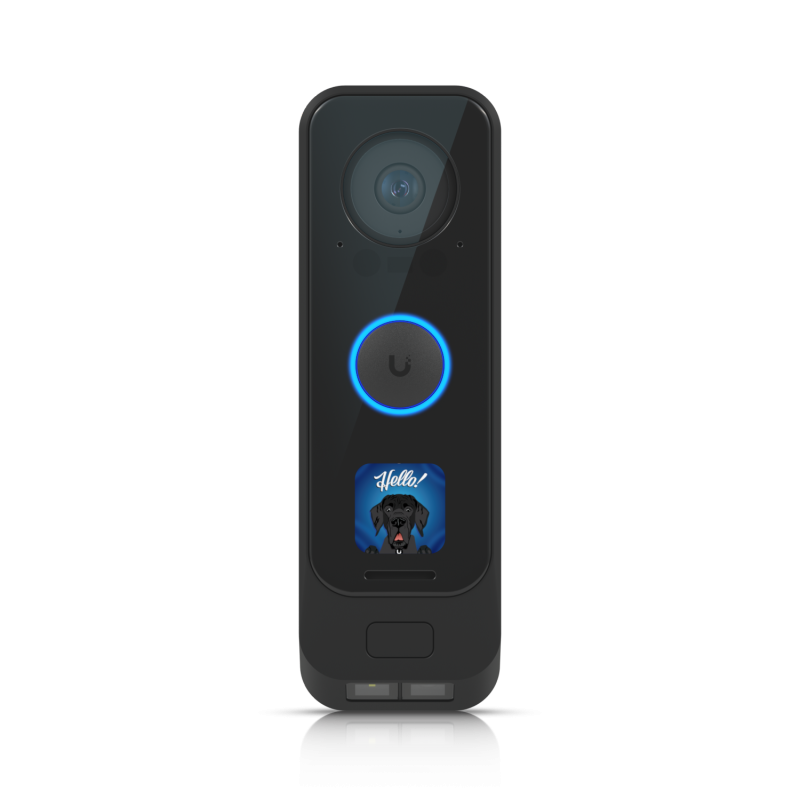

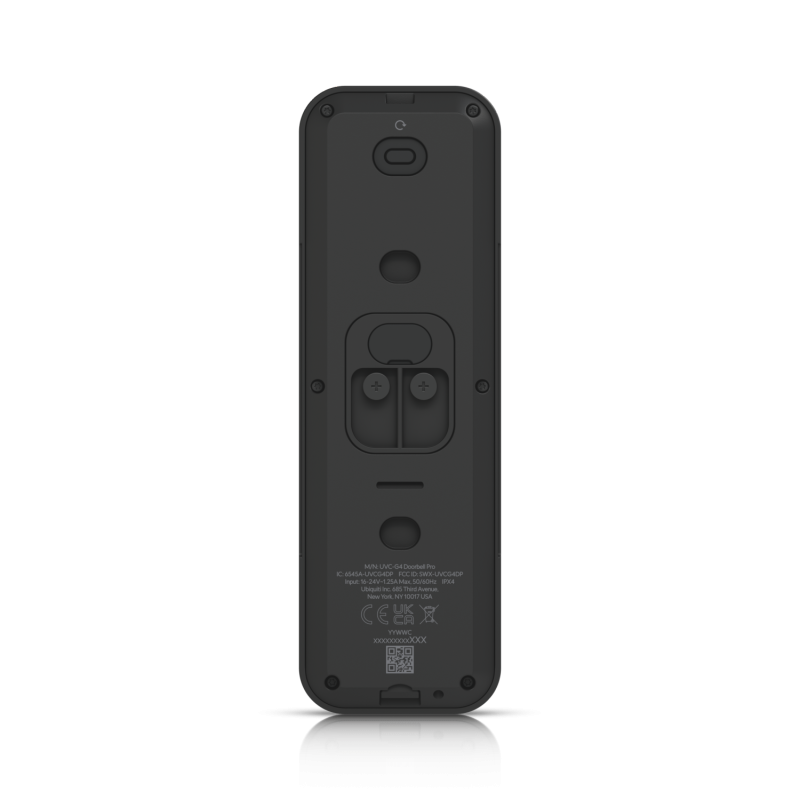

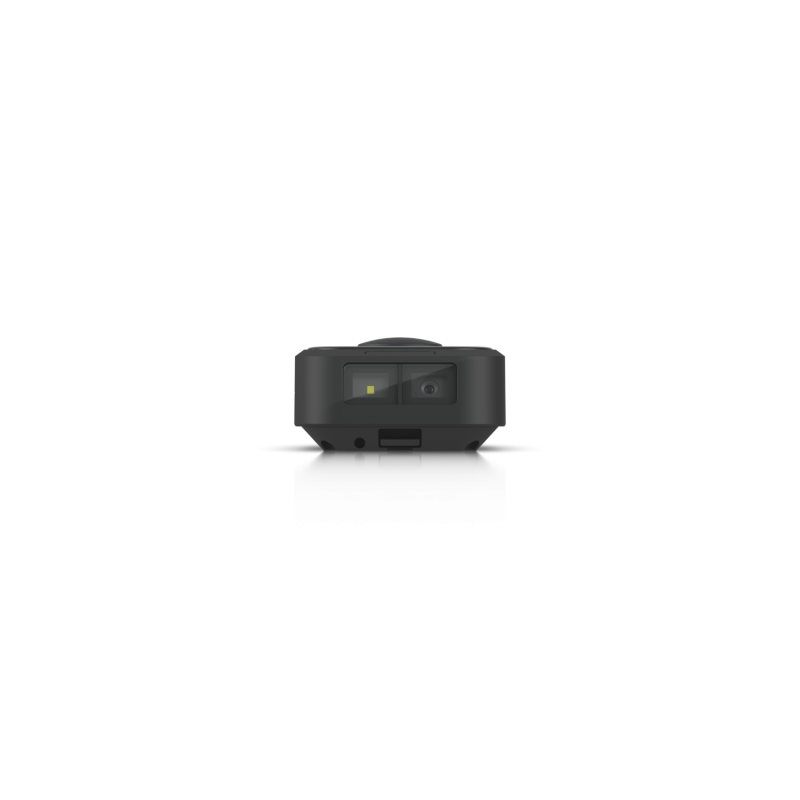

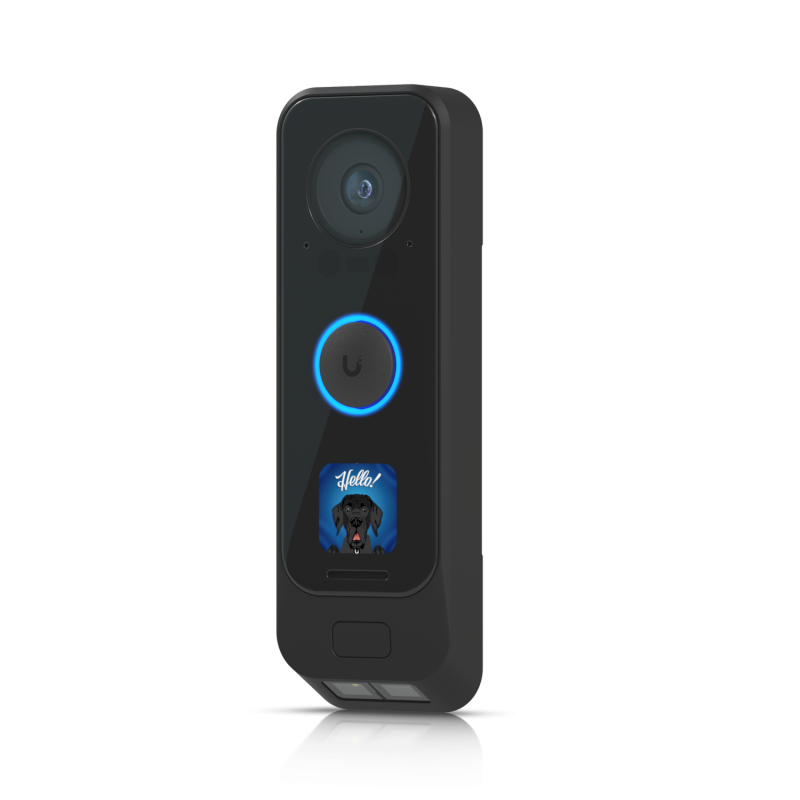

Ubiquiti Unifi Protect G4 Doorbell Professional / Wifi / 8MP Camera / 2-Way Audio / UVC-G4 Doorbell Pro
Ubiquiti Unifi Protect G4 Doorbell Professional / Wifi / 8MP Camera / 2-Way Audio / UVC-G4 Doorbell Pro
Ubiquiti Unifi Protect G4 Doorbell Professional / Wifi / 8MP Camera / 2-Way Audio / UVC-G4 Doorbell Pro
Ubiquiti Unifi Protect G4 Doorbell Professional / Wifi / 8MP Camera / 2-Way Audio / UVC-G4 Doorbell Pro
Improved HDR and low-light performance
Programmable welcome display and secondary package detection camera
AI event detection
Wirelessly connected with UniFi WiFi Auto-Link*
Integrated 2-way audio
Including PoE chime
Weatherproof (covered outdoors)
Technical specifications
UVC-G4 Doorbell Pro |
|
|---|---|
| Mechanically | |
| Mass | Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4") Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7") wedge : 161.1 x 52.1 x 25.7mm (6.3 x 2.1 x 1") One wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1") |
| Weight | Device: 264 g (9.3 oz) Wall mount: 56 g (2 oz) Wedge: 33 g (1.2 oz) Wall mount: 53 g (1.9 oz) |
| Housing materials | Aluminum alloy, polycarbonate |
| Assemble materials | Wall mount: aluminum alloy. Wedge: polycarbonate. Bracket: Polycarbonate |
| Weatherproof | IPX4 |
| optics | |
| sensor | Main camera: 5MP CMOS sensor Package camera: 8MP CMOS sensor |
| lens | Fixed focal length |
| perspective | Main camera: H: 138°, V: 114°, D: 155° Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
| Night mode | Integrated IR LED illumination and IR cut filter |
| video | |
| Video compression | H.264 |
| resolution | Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3) |
| Max. frame rate | 30 FPS |
| system | |
| processor | Quad-core Arm® Cortex®-A53-based chip |
| Network interface | 802.11a/b/g/n/ac WiFi Bluetooth 5.0 GbE support (with UACC adapter DBPOE) |
| Power method | 16–24 V AC, 1.25 A max., 50/60 Hz USB-C power cable, 5 V DC, 2 A |
| Supported voltage range | 37–57 V DC |
| Max. energy consumption | 7W |
| LED | Link/Activity |
| button | (1) Bell button (1) Factory reset |
| Operating temperature | -30 to 40 °C (-22 to 104 °F) |
| Operating humidity | 10 to 90% non-condensing |
| Certifications | CE, FCC, IC |
| Audio | |
| microphone | Yes (can be deactivated) |
| Speaker | Yes |
| software | |
| UniFi OS application | UniFi Protect |
| App | UniFi Protect iOS™ and Android™ |
UP-Chime PoE |
|
| Mechanically | |
| Mass | Device: Ø62 x 54 mm (Ø2.5 x 2.1") Flush mounting: Ø89 x 63.1 mm (Ø3.5 x 2.5") Surface mounting: Ø62 x 20.2 mm (Ø2.5 x 0.8") |
| Weight | Device: 158 g (5.6 oz) Flush-mounted: 91 g (3.2 oz) Surface mounting: 28 g (1 oz) |
| Housing materials | Aluminum alloy, polycarbonate |
| Assemble materials | Polycarbonate, zinc alloy |
| system | |
| processor | Dual-core Xtensa®, 32-bit, 400 MIPS |
| Network interface | 10/100 MbE port |
| Power method | PoE |
| Supported voltage range | 44–57 V DC |
| Max. energy consumption | 3.5 W |
| ESD/EMP protection | Air: ± 16 kV, contact: ± 8 kV |
| LED | R/G/B/W |
| button | Factory settings reset |
| Operating temperature | 0 to 40 °C (32 to 104 °F) |
| Operating humidity | 10 to 90% non-condensing |
| Certifications | CE, FCC, IC |
| Audio | |
| Speaker | Yes |
| Summer | Yes |
| software | |
| Internet application | UniFi Protect |
| App | UniFi Protect iOS™ and Android™ |
