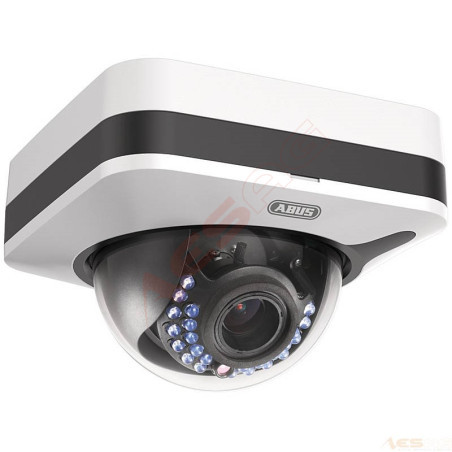

ABUS IP Dome 8 MPx (2.8 - 12 mm) PoE IP67 IK10

The IP dome delivers video streams in 8 MPx resolution at up to 20 frames/s. The dust- and waterproof IP67 housing with IK10 shock resistance provides optimal protection against sabotage and vandalism. Integrated IR LEDs deliver usable images day and night. The camera can be conveniently accessed at any time via the app.

Best overview

The IP dome with a 2.8-12 mm motor zoom lens covers an area of 35-115°. The focal length and focus can be adjusted conveniently and precisely via the web interface.

Recording and compatibility

Recording can be done either on an ABUS recorder, 3rd party video management software or locally on a microSD card. The camera is also compatible with the ABUS alarm control panel Secvest and the ABUS access control system wAppLoxx.

Convenient commissioning

The IP dome is mounted on the ceiling or optionally on the wall with a bracket. We recommend our installation box (TVAC31300) and the wall bracket (TVAC31340). The free software "ABUS IP Installer" is available for quick and easy commissioning in the network. This finds the camera quickly and easily in the network and supports commissioning.

The effective IR range depends on the location. Light-absorbing surfaces or objects in the field of view that do not reflect IR light reduce the IR range or result in a video image that is too dark. Furthermore, reflective objects in the immediate vicinity of the camera (gutter, wall) can result in disruptive reflections of the IR light in the image.

Product features

• 8 MPx (4K) Resolution: 3,840 x 2,160 @ 20 fps
• 2.8 - 12 mm motor zoom lens
• Ultra low-light performance for excellent results in low light
• 120 dB WDR function to compensate for image contrast
• Vandal- and weatherproof housing (IK10 & IP67)
• IR LEDs (up to 30m range)
• Supports H.264, H.265, MJPEG (including Dynamic GOP)
• microSD card slot for internal data storage
• 12V DC & PoE (802.3af)

Technical data:

• Article number: IPCB78520
• EAN No.: 4043158149623
• Packaging dimensions LxWxH: 240x180x180 mm
• Alarm output: 1
• Alarm input (NO/NC): 1
• Alert: Email, NAS, FTP
• Connectors: 1 x RJ45, 1 x DC, 1 x video output, 1 x audio output, 1 x audio input, 1 x alarm input, 1 x alarm output
• Number of users: 32
• Number of IR LEDs: 10
• Number of streams: 3
• Audio: 2-way audio (via browser, CMS)
• Resolution: 8MPx
• Resolution modes: 3840 x 2160, 3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360, 352 x 288
• Design: Dome
• Motion detection: 8 zones
• Image sensor: 1/2.5" Progressive Scan CMOS
• Picture elements (effective): 3840(H) x 2160(V) pixels
• Image optimization: WDR, BLC, HLC, 3D DNR, Vertical Display
• Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 30 fps
• Aperture at minimum illumination (color): F1.4
• Horizontal viewing angle: 35 – 115 °
• Vertical viewing angle: 19 – 60 °
• Width: 143mm
• Focal length: 2.8 – 12.0 mm
• Dynamic range (WDR): 120 dB
• Electronic shutter: 1/3 - 1/100000 s
• Functions: Scene Change Detection
• Backlight compensation: WDR, BLC, HLC
• Concurrent network access: 6
• Height: 100mm
• ICR day/night function: Yes
• IR LEDs: Yes
• IR range (up to): 30 m
• Camera type: Dome
• Compatible with: NVR, IPCam Plus
• Compatible with Secvest: Yes
• Compatible with wAppLoxx: Yes
• Length: 143mm
• Max. resolution @ frame rate: 3840 x 2160 @ 20 fps
• Max. operating temperature: 60 °C
• Max. humidity: 95%
• Microphone: No
• Min. operating temperature: -30 °C
• Minimum illumination (color): 0.01 lx
• Minimum illumination (IR): 0 lx
• Net weight: 1.2 kg
• Network bandwidth video: 32 kBit/s - 16 MBit/s
• Network connection: RJ45
• Network connection LAN: RJ45 10M/100M self-adaptive
• Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ONVIF Profile S, ONVIF Profile G, ABUS Server, Secvest Link
• ONVIF: Profiles S, Profiles G
• Lens: Motor zoom
• Optical zoom: 4.2x
• PoE standard: IEEE 802.3af
• Private zones: 4
• Noise reduction: 3D DNR
• Protection class IK: 10
• Protection class IP: 67
• Other features: Auto Backup Recording, Secvest Connectivity
• Power supply DC: 12 (+/-10 %) V
• Storage medium: Optional microSD card (max. 256 GB)
• Language manual: DE, UK, FR, NL, DK
• Language OSD: DE, UK, FR, NL, DK
• Current consumption: 1,075 mA
• Day/night switching: ICR/color/B/W
• Technology: IP
• Supported browsers: IE10, IE11, Mozilla Firefox 30.0+, Chrome 31.0+
• Encryption: HTTPS
• Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection
• Video compression: Stream 1: H.264, H.265, Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265; Dynamic GOP
• Video system: IP
• White balance: AWB, Manual

Scope of delivery:

• 1x ABUS IPCB78520 IP Dome 4K Day/Night IR PoE IP67 IK10 Vandal
  1x Quick guide
