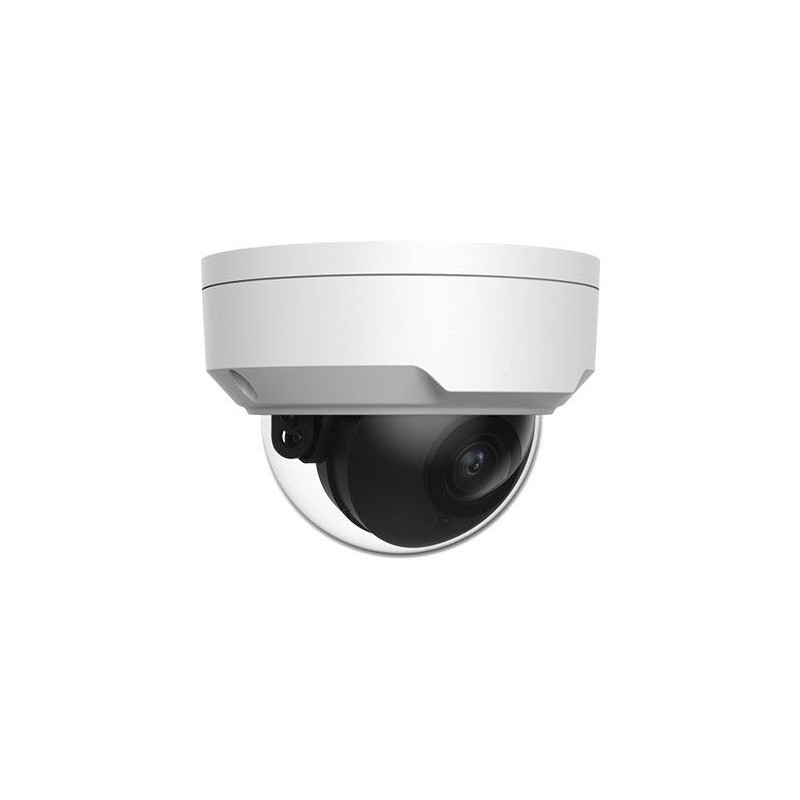

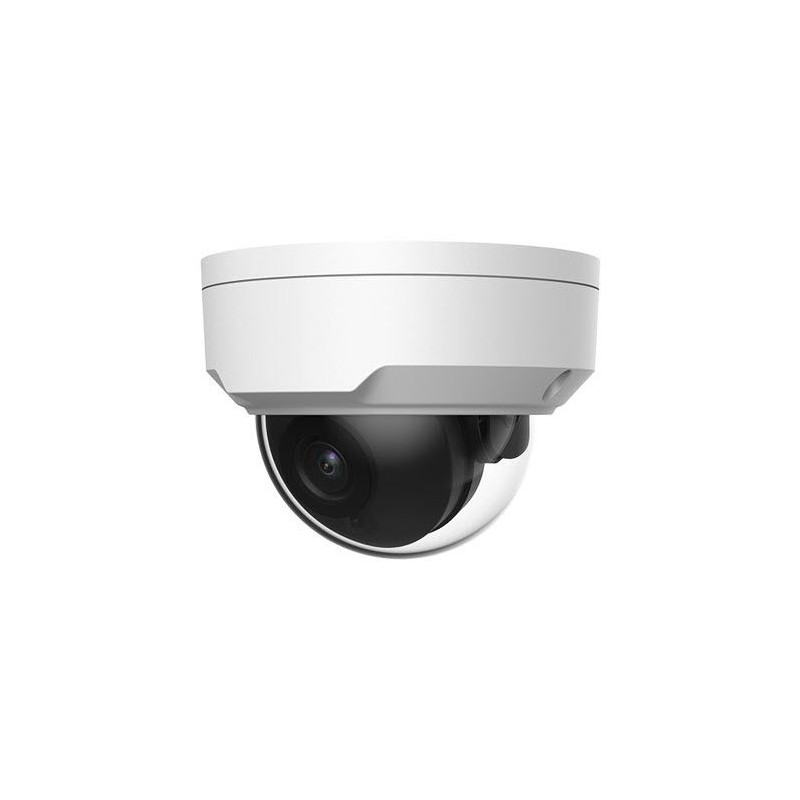

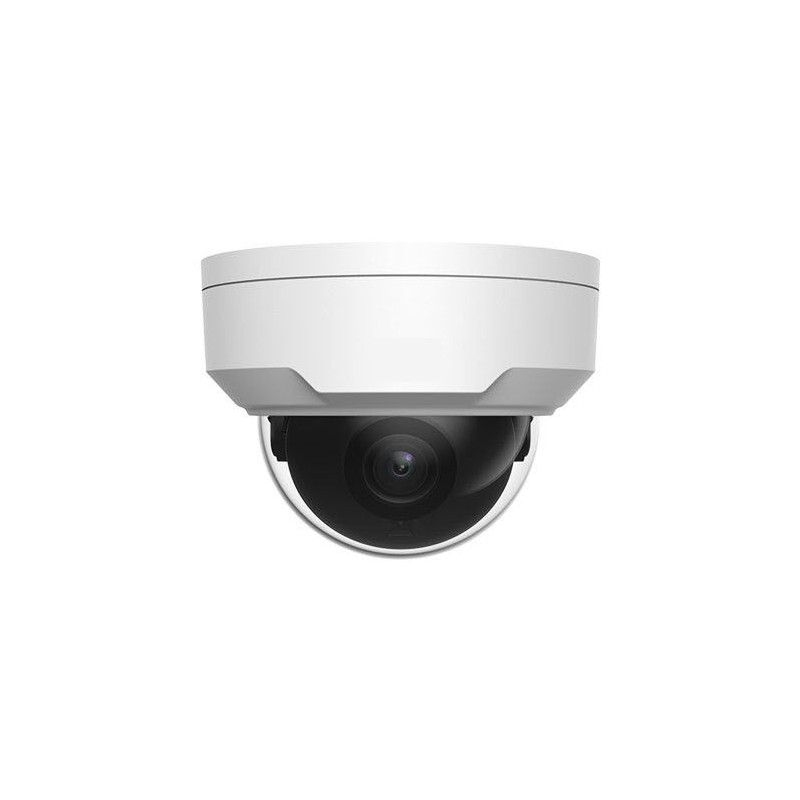

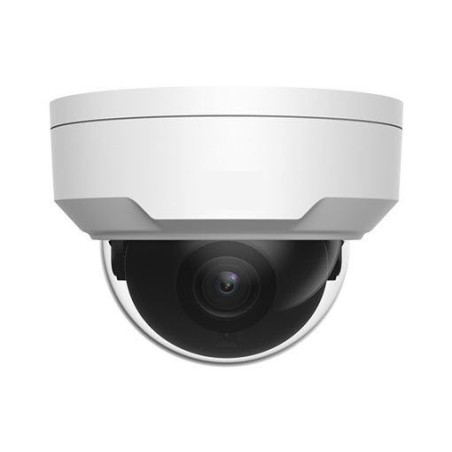

ALLNET IP Kamera Fix Dome Outdoor / 5MP / IR / Vandalismus / Low-Light / 79° / "ALL-CAM2488v3-LVEN"
ALLNET IP Kamera Fix Dome Outdoor / 5MP / IR / Vandalismus / Low-Light / 79° / "ALL-CAM2488v3-LVEN"
ALLNET IP Kamera Fix Dome Outdoor / 5MP / IR / Vandalismus / Low-Light / 79° / "ALL-CAM2488v3-LVEN"
Highlights:
- Hohe Bildqualität mit 5MP, 1/2.7 "CMOS Sensor
- 5MP (2880*1620)@ 30/25fps 4MP (2560*1440)@ 30/25fps 3MP (2304*1296) @30/25fps 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- LightHunter-Technologie sorgt für ultrahohe Bildqualität bei geringer Beleuchtung
- 120dB true WDR Technologie ermöglicht ein klares Bild bei starken Lichtverhältnissen
- Unterstützt 9:16 Korridormodus
- Alarm: 1 Eingang/1 Ausgang, Audio: 1 Eingang/1 Ausgang
- Smart IR, bis zu 30m (98ft) IR Entfernung
- Unterstützt 256 G Micro SD Karte
- IK10 vandalismusgeschützt
- IP67-Schutz
- Unterstützt PoE-Stromversorgung
Links zu direkten Streams siehe = https://service.allnet.de/index.php?/Knowledgebase/Article/View/347/0/ipcamera---link-fr-den-direkten-stream---all-cam24xx
Technical Details:
| ALL-CAM2488v3-LVEN | ||||||
| Camera | ||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||
| Lens | 4.0mm@F1.6 | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | ||
| Angle of View (H) | 78.7° | |||||
| Angle of View (V) | 44.9° | |||||
| Angle of View (O) | 89.2° | |||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour:0.003 Lux (F1.6, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital Noise Reduction | 2D/3D DNR | |||||
| S/N | >56dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream:5MP (2880*1620), Max 30fps 4MP (2560*1440), Max 30fps 3MP (2304*1296), Max 30fps 1080P (1920*1080), Max 30fps Sub Stream: 720P (1280*720), Max 30fps D1 (720*576), Max 30fps 640*360,Max 30fps 2CIF(704*288), Max 30fps CIF(352*288), Max 30fps Third Stream: D1 (720*576), Max 30fps 640*360,Max 30fps 2CIF(704*288), Max 30fps CIF(352*288), Max 30fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital Noise Reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | N/A | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Two-way audio | Supported | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
| Client | EZStation EZView EZLive | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||
| Interface | ||||||
| Audio I/O | Input: impedance 35kΩ amplitude 2V [p-p] | |||||
| Output: impedance 600Ω amplitude 2V [p-p] | ||||||
| Alarm I/O | 1/1 | |||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||
| Certifications | ||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 4.5W | ||||||
| Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) | |||||
| Net Weight | 0.425kg (0.93lb) | |||||
| Material | Metal + Plastic | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 2KV | |||||
| Ingress Protection | IP67 | |||||
| Vandal Resistant | IK10 | |||||
| Reset Button | N/A | |||||
Details about ALLNET IP Kamera Fix Dome Outdoor / 5MP / IR / Vandalismus / Low-Light / 79° / "ALL-CAM2488v3-LVEN"
| 01-CAMERA TYPE | Domekamera (Fix) |
|---|---|
| Image resolution | 5 MPx |
| 01-Gehäusefarbe | Weiss |
