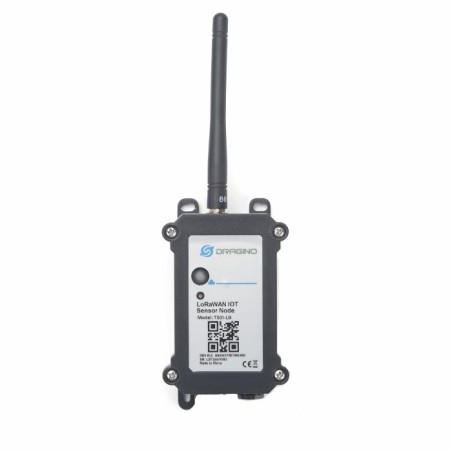

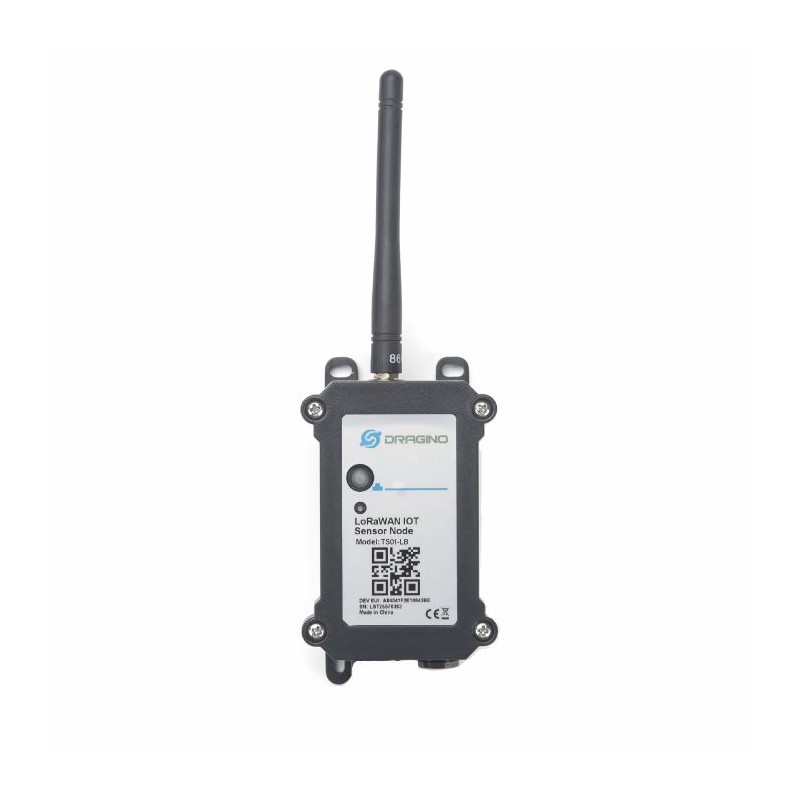

DRAGINO - Sensor - LoRa - Tilt sensor - TS01-LB-EU868

The Dragino TS01-LB is a LoRaWAN tilt sensor for Internet of Things solutions. The TS01-LB/LS is an outdoor tilt sensor specifically designed to detect the angle of trees, buildings or large appliances.TS01-LB measures the tilt and roll angle and converts it into LoRaWAN radio data, which it sends to the IoT platform via the LoRaWAN network.

The LoRa radio technology used in the TS01-LB enables the device to send data and achieve extremely long ranges at low data rates. It offers spread spectrum communication with extremely long range and high interference immunity with minimal power consumption.

The TS01-LB supports BLE configuration and wireless OTA updates, making it easier for the user to use.

The TS01-LB is powered by an 8500mAh Li-SOCI2 battery and is designed for long-term use of up to 5 years.

Each TS01-LB is pre-loaded with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN servers and it will automatically connect after power on.

Features:

• LoRaWAN 1.0.3 Class A
• Bänder: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Ultra-low power consumption
• Pitch and roll angle detection
• Supports angle alarm
• Supports Datalog function
• Battery level monitoring
• Supports Bluetooth v5.1 and LoRaWAN remote configuration
• Supports wireless OTA firmware updates
• Uplink at regular intervals
• Downlink to change the configuration
• 8500mAh Li/SOCl2 battery (TS01-LB)

Technical data:

Supply voltage: Built-in battery, 2.5v ~ 3.6v
Operating temperature: -40 ~ 85°C

Angle Specification:

• Measurement of pitch and roll
• Accuracy: 0.3°C

LoRa Specification:

• Frequency range, Band 1 (HF): 862 ~ 1020 Mhz, Band 2 (LF): 410 ~ 528 Mhz
• Max. +22 dBm constant RF output vs.
• RX sensitivity: up to -139 dBm.
• Excellent blocking immunity

Rechargeable battery:

• Non-rechargeable Li/SOCI2 battery
• Capacity: 8500mAh
• Self-discharge: &lt1% / year @ 25°C
• Max. Continuous current: 130mA
• Max. Charging current: 2A, 1 second

Power consumption:

• Sleep mode: 5uA @ 3.3v
• LoRa transmit mode: 125mA @ 20dBm, 82mA @ 14dBm
