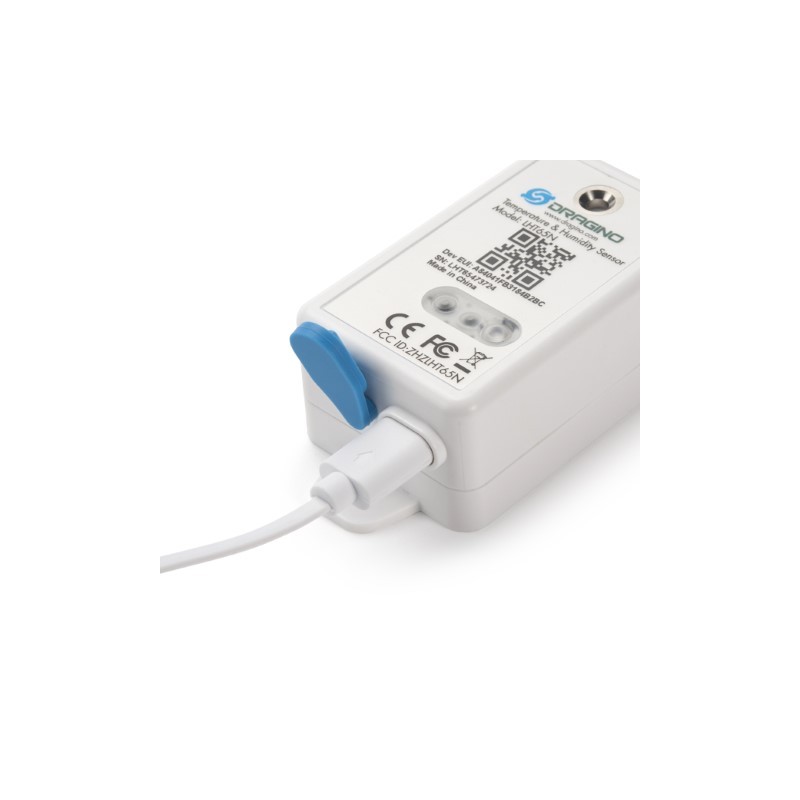

DRAGINO LHT65S-EU868-E3 Temperature & Humidity Sensor

overview

Dragino LHT65S Temperature and Humidity Sensor is a long range LoRaWAN sensor. It contains a built-in SHT20 temperature and humidity sensor and has an external sensor port for connecting external sensors such as temperature sensor, soil moisture sensor, tilt sensor, etc.
The LHT65S allows users to send data and achieve ultra-long range. It provides ultra-long range spread spectrum communication and high interference immunity with minimal power consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, etc. The LHT65S has a built-in 2400mAh non-rechargeable battery that can be used for more than 10 years*. The LHT65S is fully compatible with LoRaWAN v1.0.2 protocol, it can work with standard LoRaWAN gateway. The LHT65S has 3200 records with date and time, which can be retrieved with date and time for further analysis.

The external antenna allows the sensor to achieve better coverage than the LHT65N.

Characteristics

• LoRaWAN Class A protocol
• Frequency bands: EU868
• AT commands to change parameters
• Remote configuration parameters via LoRaWAN downlink
• Firmware upgrade possible via program port
• Built-in 2400mAh battery for more than 10 years of use.
• Built-in temperature and humidity sensor
• Optional external sensors
• Three-color LED for status display
• Data logging when network connectivity is interrupted

Applications

• Wireless alarm and security systems
• Home and building automation
• Automatic meter reading
• Industrial monitoring and control
• Long distance irrigation systems, etc.

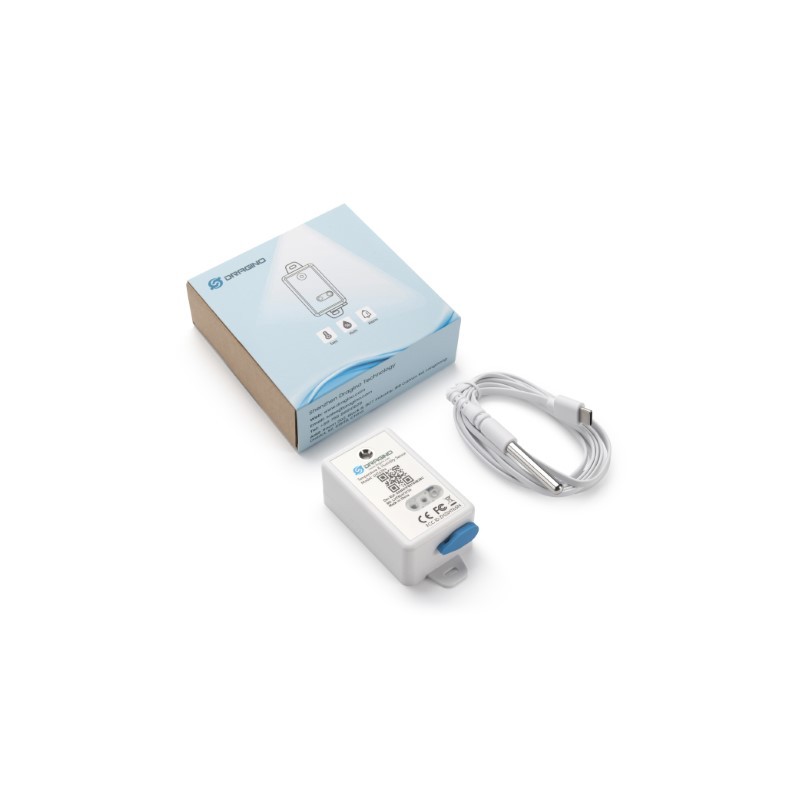

scope of delivery

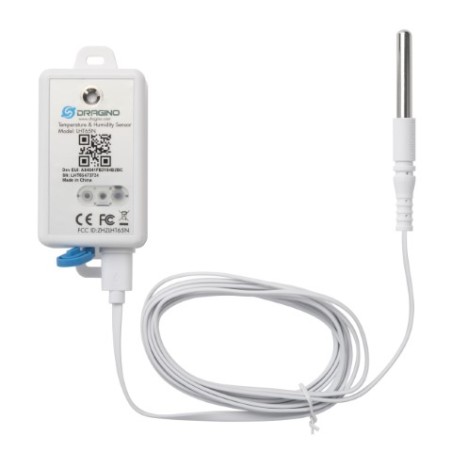

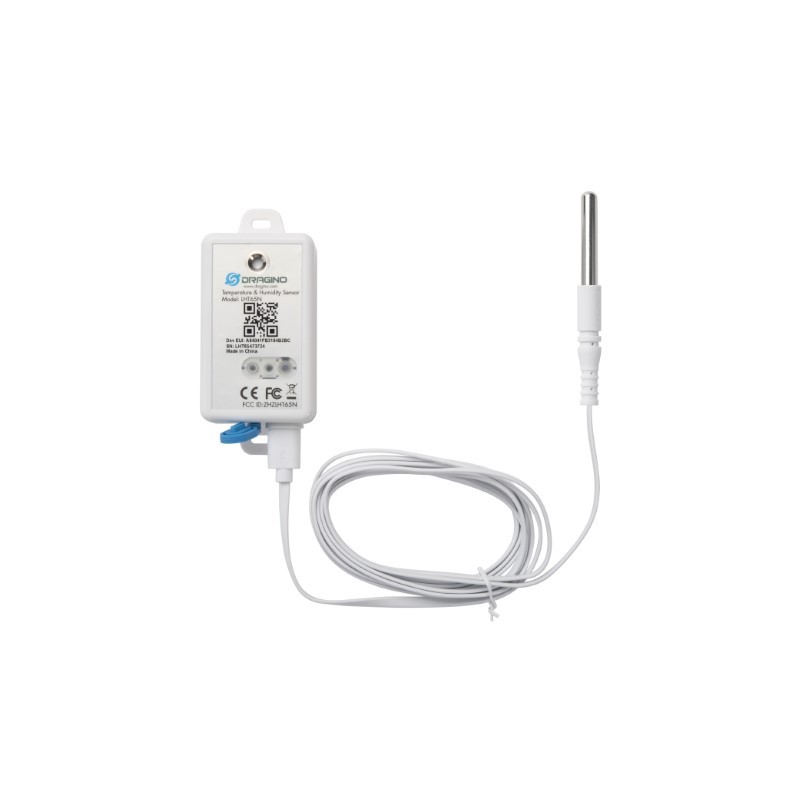

• 1 x Dragino LHT65N-EU868-E1 humidity and temperature sensor
• 1 x temperature sensor
