Adeunis · LoRa · LoRaWAN Comfort CO2 · Indoor Air Quality · EU868 · ARF8373AB

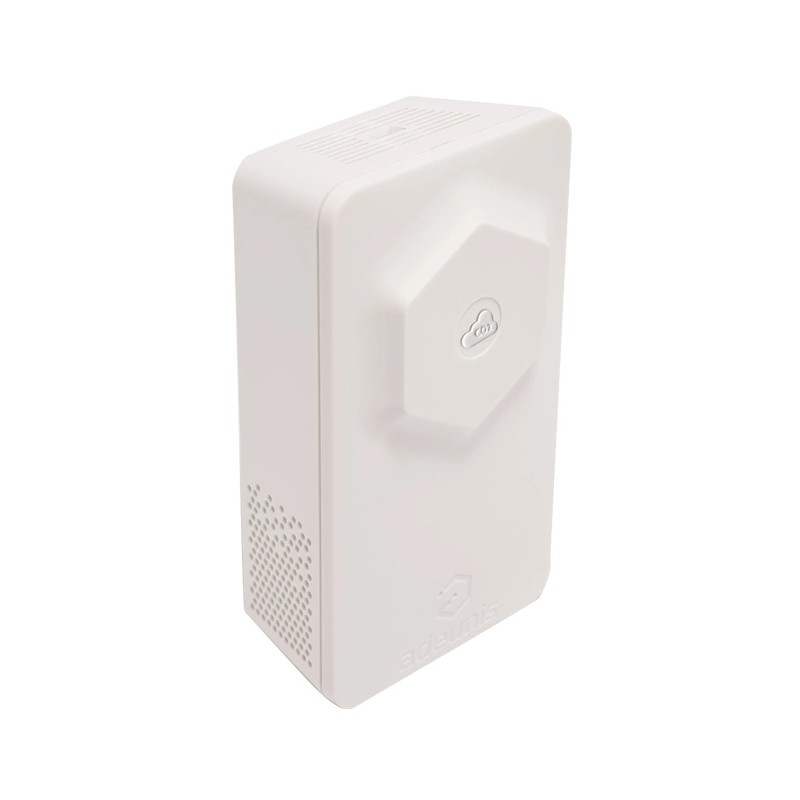

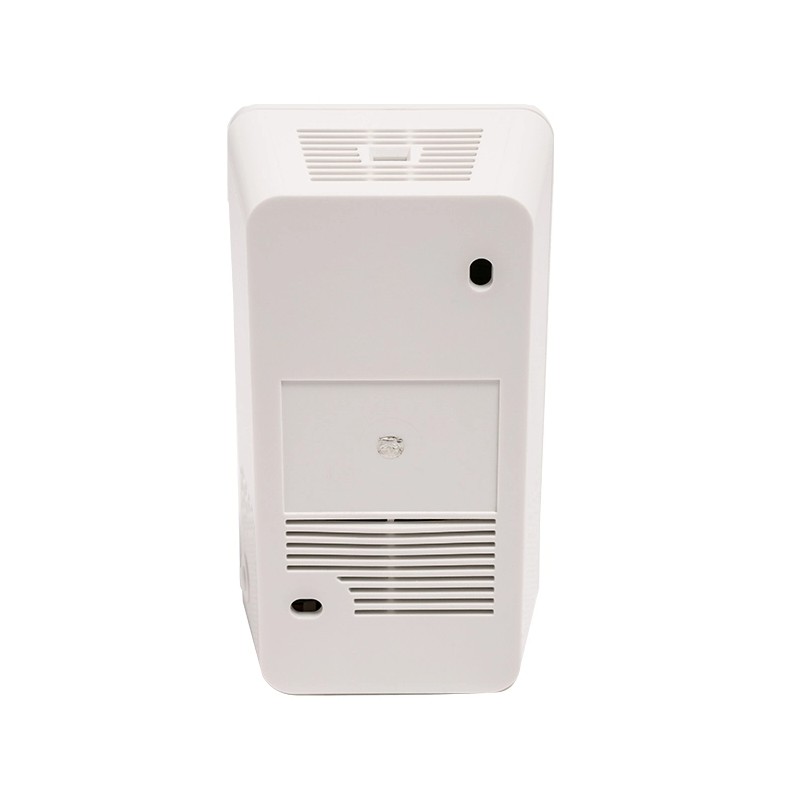

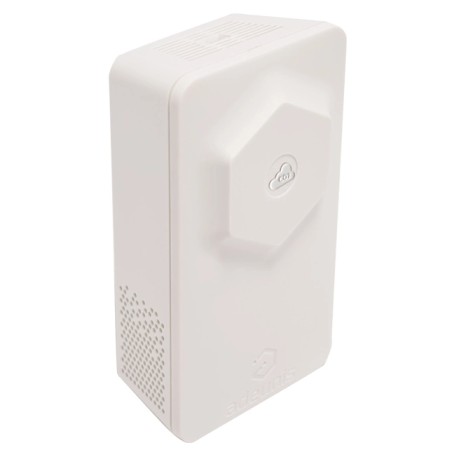

LoRa Adeunis LoRaWAN Comfort CO2 Indoor Air Quality Sensor

ARF8373AB

overview

The Adeunis Comfort CO2 Indoor Air Quality Sensor constantly measures the CO2 levels and can inform you if levels are too high. The Comfort CO2 Sensor also measures the temperature and humidity.

Highlights

• Triple effect: temperature, humidity, CO2
• Daily 24-hour chart:

1. ICONE Index
2. Time spent in poor indoor air quality (IAQ)
3. Min/Max/Average temperature + humidity + CO2

• Additional functions: alarm button, dry contact input
• Automatic or manual CO2 calibration
• User information: Indicator light on the device
• Data recording and redundancy
• Data transmission: periodically or in case of alarm
• Local and remote configuration
• Battery operated product

Technical data

• CO2 calibration: automatic or manual via button or downlink
• Data transfer mode: periodic and/or event-based
• Optimizing autonomy: historicization
• Accessibility of data: redundancy
• Alarm repetition in case of a persistent event
• Error/fault management: configuration error, low battery
• Time stamping of data (LoRaWAN)
• Checking the network quality at startup (LoRaWAN)
• Temperature: 0°C /+50°C
• Humidity: 0 to 85% RH (non-condensing)
• Weight: 146 g (including battery)
• Dimensions: 111 x 61 x 40 mm
• Housing: IP20, plastic Bayblend® FR3010 (PC/ABS), white
• Mounting: Wall or flat
