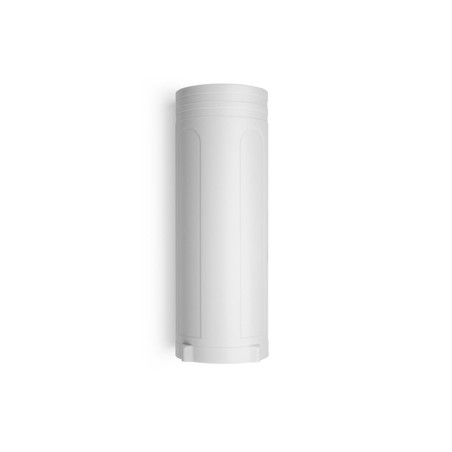

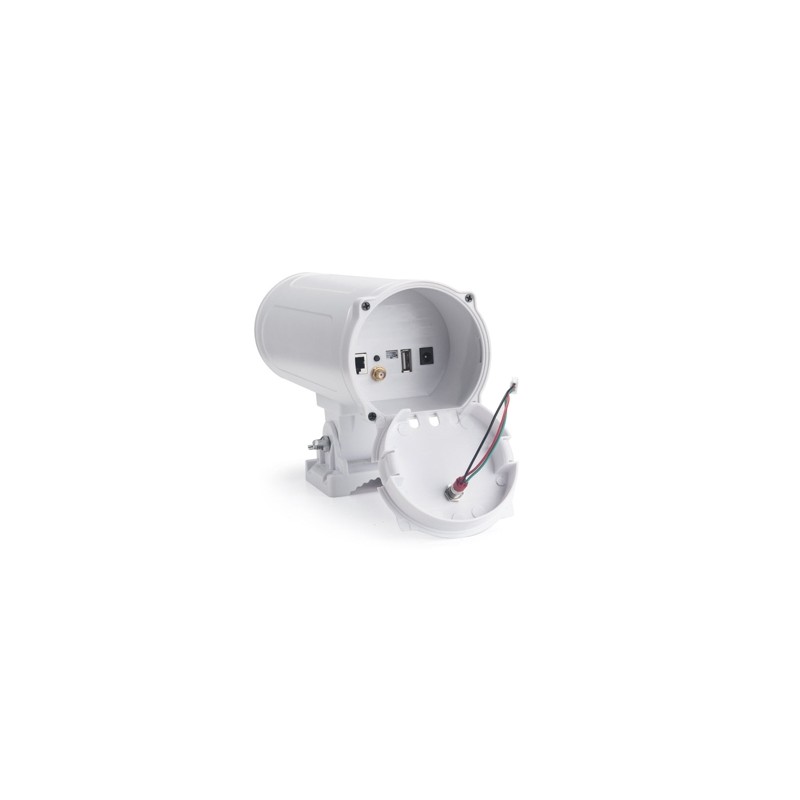

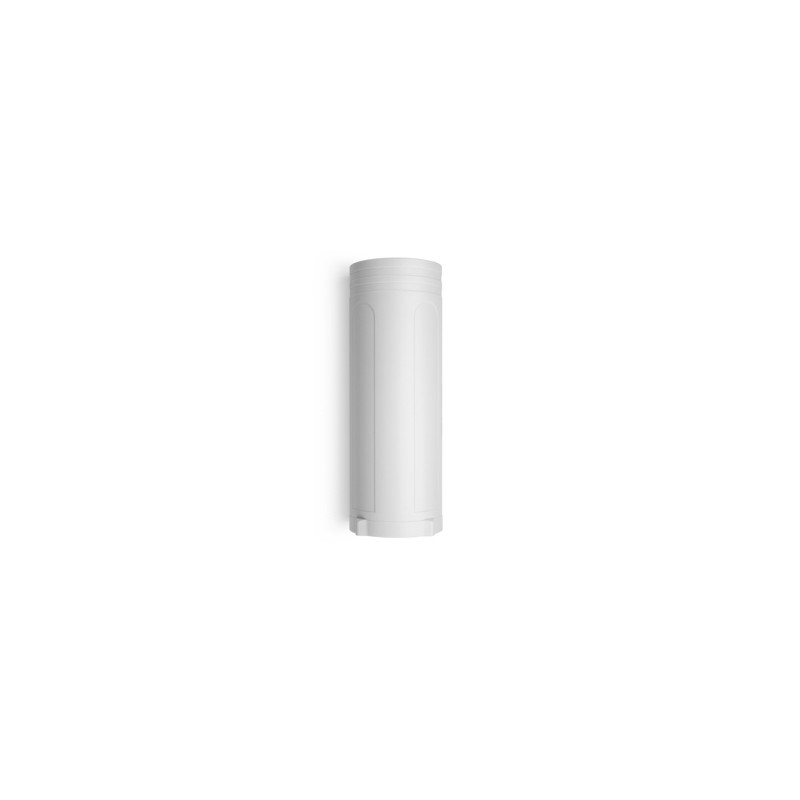

DRAGINO DLOS8N-868 with 4G

overview

The DLOS8N is an open source outdoor LoRaWAN gateway. It allows you to connect a LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular. LoRa wireless allows users to send data and achieve extremely long ranges at low data rates. The DLOS8 uses semi-engineered packet forwarding and is fully compatible with the LoRaWAN protocol. It includes a SX1301 LoRaWAN concentrator that provides 10 programmable parallel demodulation paths. DLOS8N has pre-configured LoRaWAN standard frequency bands for use for different countries. The user can also customize the frequency bands for use in their own LoRaWAN network. DLOS8 can communicate with ABP LoRaWAN end nodes without a LoRaWAN server. System integrators can use it to integrate into their existing IoT service without setting up their own LoRaWAN server or using a third-party LoRaWAN service.

Characteristics

• Open source OpenWrt system
• Managed via web GUI, SSH over LAN or WiFi
• Emulates 49x LoRa demodulators
• LoRaWAN gateway for outdoor use
• 10 programmable parallel demodulation paths
• LoRaWAN packet filtering
• Far-seeing LED display
• Built-in GPS module for tracking and timing
• External fiber optic antenna
• 802.3af PoE
• IP65
• Protection of lighting
• Power consumption:12v 300 ~500mA

Applications

• Smart buildings and home automation
• Logistics and supply chain management
• Smart Metering
• Smart Agriculture
• Smart Cities
• Smart Factory

Specifications

LoRa specification:

• 1 x SX1302 + 2 x 1257 LoRa transceiver

General specifications

• 10M/100M RJ45 Ports x 1
• 1 x 2.4G WiFi (802.11 bgn)
• 1 x USB host port
• Power by 12v DC or PoE

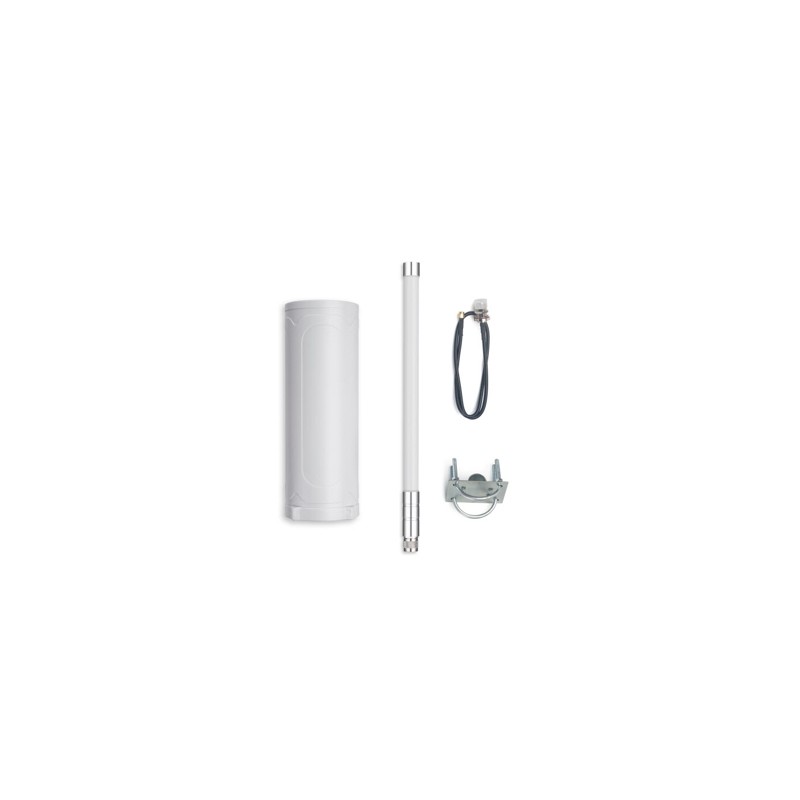

scope of delivery

• 1 x Dragino DLOS8 with 4G
