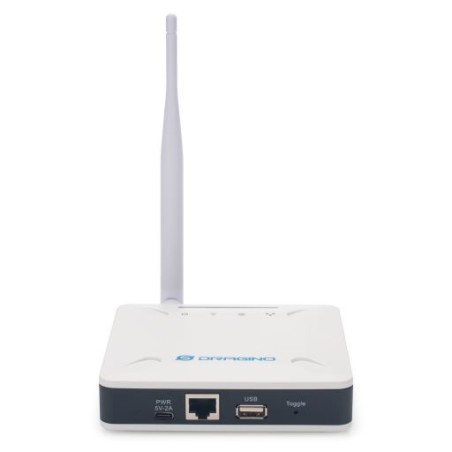

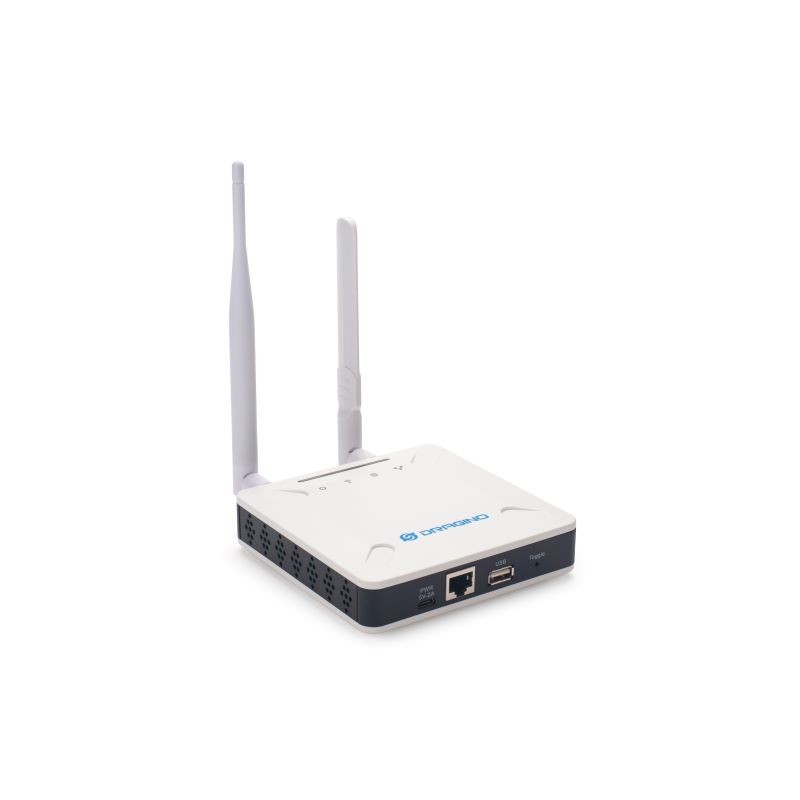

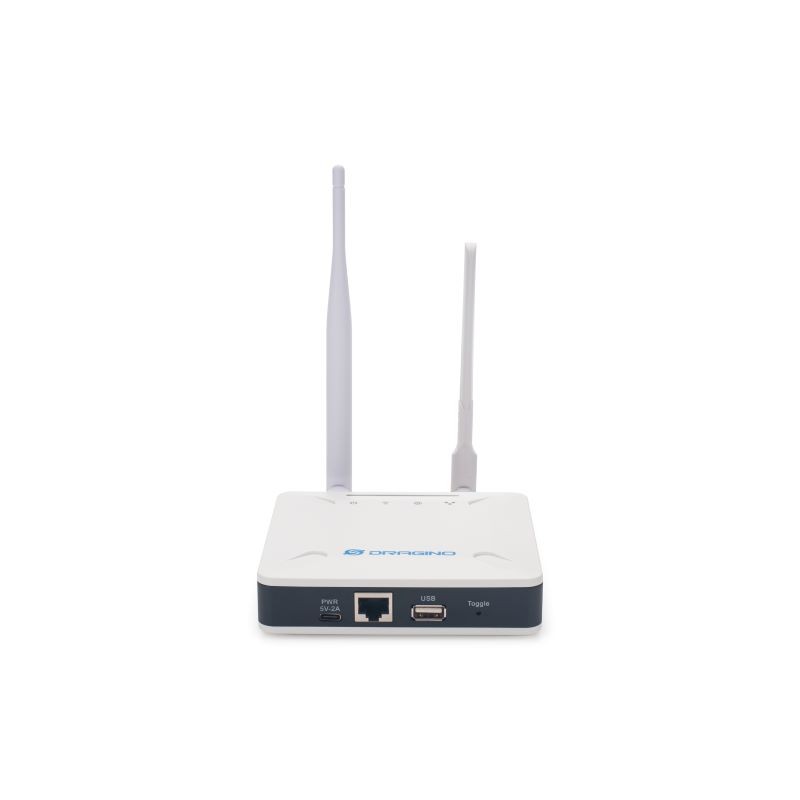

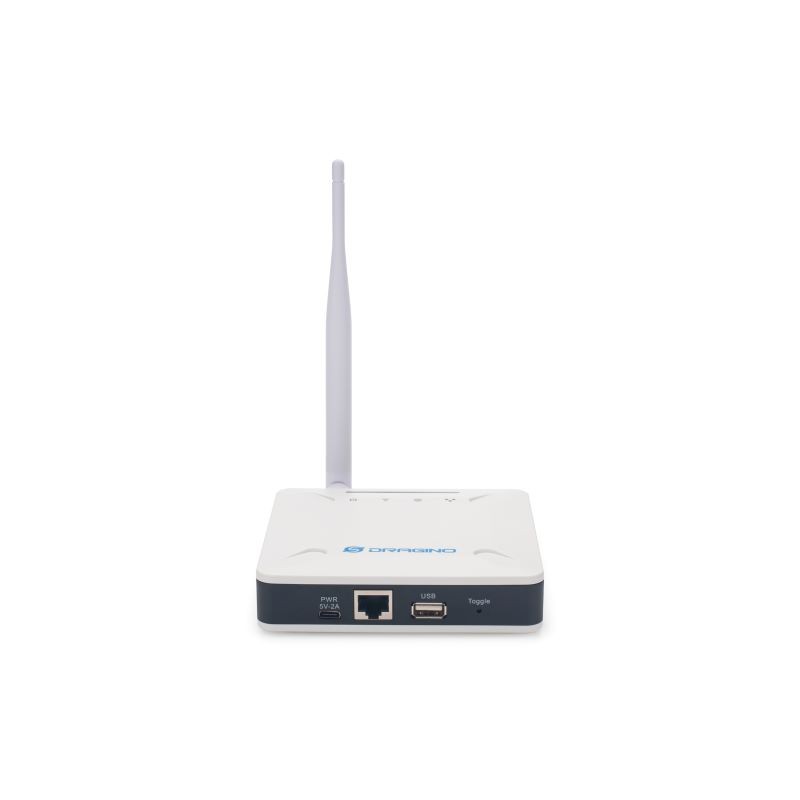

DRAGINO LPS8v2 Indoor IoT Gateway

overview

The LPS8v2 is an open source LoRaWAN gateway. It allows LoRa wireless networks to be connected to an IP network over WiFi, Ethernet or a cellular network (via an optional 4G module). LoRa wireless allows users to send data and achieve extremely long ranges at low data rates.

The LPS8v2 is fully compatible with the LoRaWAN protocol. It supports various types of LoRaWAN network connections such as: Semtech UDP Packet Forwarder, LoRaWAN Basic Station, ChirpStack MQTT Bridge, and so on. This makes LPS8V2 work with most LoRaWAN platforms on the market.

LPS8v2 also includes a built-in LoRaWAN server and IoT server, which provide the system integrator with the ability to deploy IoT service without cloud service or third party servers.

Different countries use different LoRaWAN frequency bands. LPS8v2 has these bands pre-configured. Users can also customize the frequency bands for use in their own LoRa network.

LPS8v2 supports remote management. System integrators can easily monitor and maintain the gateway remotely.

Characteristics

• Open source Debian system
• Managed via web GUI, SSH over WAN or WiFi
• Remote management
• Auto-provisioning for batch deployment and management
• LoRaWAN gateway
• 10 programmable parallel demodulation paths
• Pre-configured to support various LoRaWAN regional settings.
• Allows customization of regional LoRaWAN parameters.
• Different types of LoRaWAN connections such as:
  • Semtech UDP packet forwarding
  • LoRaWAN base station
  • ChirpStack Gateway Bridge (MQTT)
  • Built-in local LoRaWAN server from The Things Network.
  • Built-in Node-Red local application server .

Applications

• Smart Buildings & Home Automation
• Logistics and Supply Chain Management
• Smart Metering
• Smart Agriculture
• Smart Cities
• Smart Factory

LoRa Spec

• 1 x SX1302 + 2 x 1250 LoRa transceivers

General specifications

• CPU: Quad-core Cortex-A7 1.2Ghz
• RAM: 512MB
• eMMC: 4GB
• 10M/100M RJ45 Ports x 1
• Multi-Channel LoRaWAN Wireless
• WiFi 802.11 b/g/n
• Working Temperature: -20 ~ 65°C
• Storage Temperature: -20 ~ 65°C
• Power Input: 5V, 2A, DC

scope of delivery

• 1 x LPS8v2 Gateway
• 1 x LoRa Antenna
• 1 x USB Type C Charge
• Environmental Package
