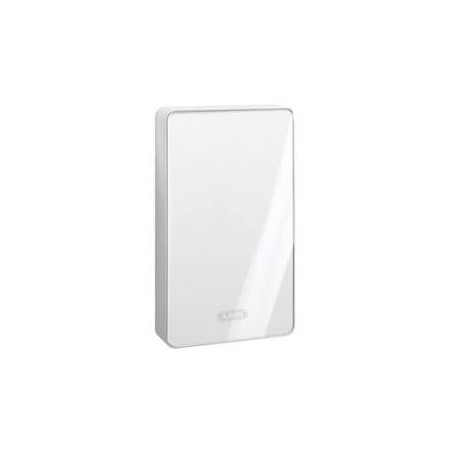

The Terxon LX 8-zone wired extension is an extension module for the Terxon LX. With this module you can expand your alarm system by 8 wired alarm zones.
The 8-zone wired extension is connected to the main board of the Terxon LX via bus wiring. You can connect up to 32 extension modules (wireless or wired) to your existing alarm control panel. The Terxon LX can thus be expanded to 264 zones. The additional alarm zones are freely programmable and monitored for sabotage.
The type of wiring (NC or DEOL) is up to you - but it must be the same for all zones. You address the zones of the expansion modules using a jumper.
Technical data:
| Number of wire zones | Expansion by 8 |
| Switching outputs | 2, one positive/negative switching transistor each, 100 mA |
| Sabotage monitoring | Yes |
| Zone completion | NC or DEOL (FSL) |
| connections | 4-wire bus |
| Power supply | 12VDC |
| Power consumption | Max.60mA |
| Housing material | SECTION |
| operating temperatur | -10° to +55°C max 96% humidity non-condensing |
| Dimensions (WxHxD) | 183x128x35mm |
| Weight | 310g |
Product Highlights:
| Wire zone extension for the Terxon LX |
| Easy connection via 5-wire bus |
