Teltonika · Gateway · TRB500 · 5G

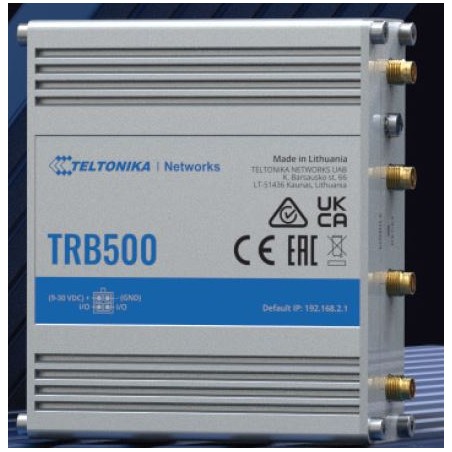

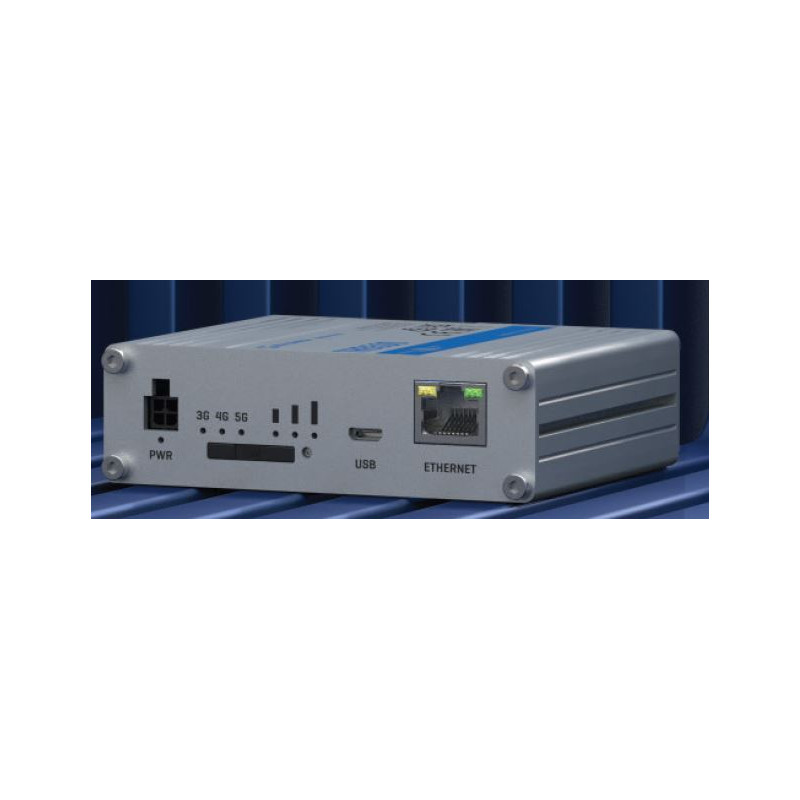

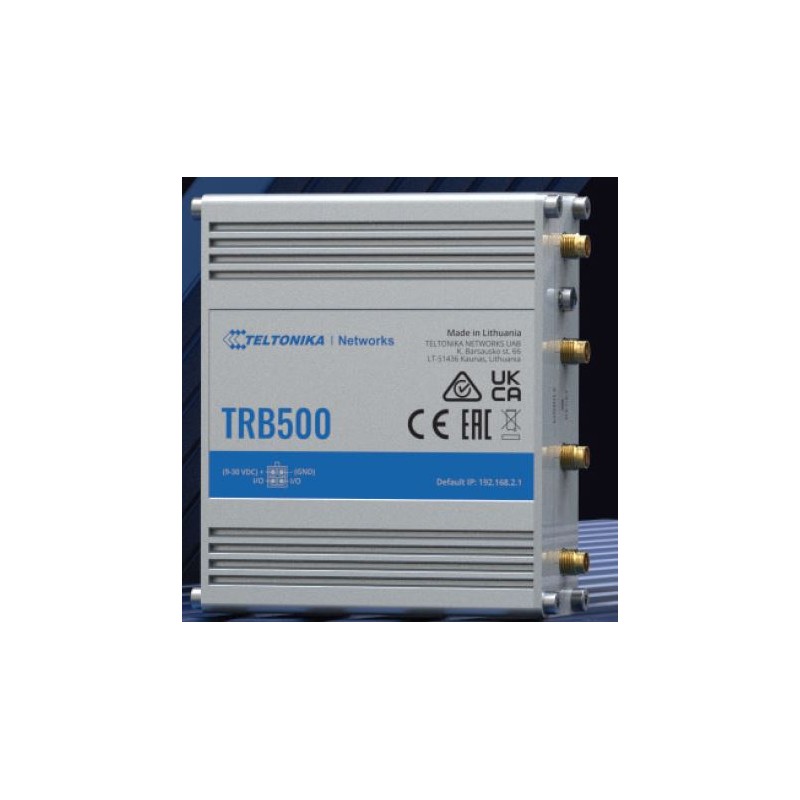

TRB500 - 5G Gateway (4G LTE Cat. 20 and 3G compatible)

The TRB500 gateway is a compact and energy-efficient industrial gateway with a Gigabit Ethernet interface and two configurable I/Os that allow high-level customization and implementation of a wide variety of scenarios. This device enables ultra-low latency 5G network speeds for mission-critical infrastructure and high data throughput, ensured by 4 external antennas that enable the use of 4x4 MIMO. TRB500 comes with the RutOS operating system, which offers advanced security features and compatibility with our Remote Management System (RMS) for optimized remote management and monitoring of large device fleets.

Features: - Connectivity - 5G Sub-6 GHz SA/NSA 2.1/3.3 Gbit/s DL (4x4 MIMO), 900/600 Mbps UL (2x2) 4G (LTE) LTE Cat 20 2.0 Gbit/s DL, 200 Mbps UL 3G 42 Mbps DL, 5.76 Mbps UL - LAN - 1 x RJ45 port, 10/100/1000 Mbps, supports Auto-MDI/MDIX crossover - USB - 1 x Virtual Network Interface via Micro USB - INPUT/OUTPUT - 1 x digital input/ 1 x digital output - RMS - compatible with Teltonika Remote Management System

Scope of delivery: - TRB500 gateway - 9 W power supply - 4 x mobile antennas (swivel, SMA connector) - Micro USB cable (0.8 m) - Ethernet cable - SIM adapter kit - QSG (quick start guide) - Packaging box
