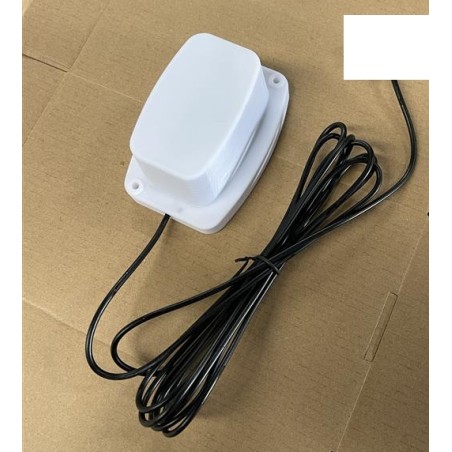

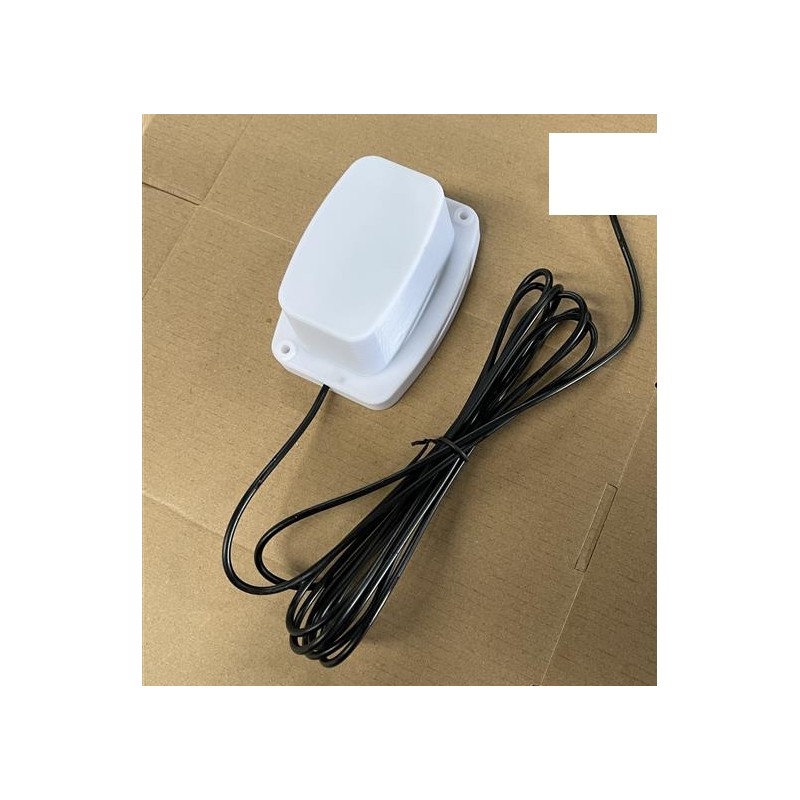

ALLNET GSM Antenna 1.1~4.1dbi SISO Omni-Antenna Indoor 2.6m SMA-M Straight ALL19104
Highlights:
- Hybrid Linear Polarization Multi-Bands 694-960MHz, 1450-2690MHz, 2690-3300MHz, 3300-6000MHz,
- Frequency band: 694-960MHz, 1450-2690MHz, 2690-3300MHz, 3300-6000M bands
- Gain: Nominal 1.1dbi ~4.1dbi
- Polarization: Hybrid linear polarization
- Connection: 1x SMA connector
- Cable length: 1x 2.6m low-loss cable

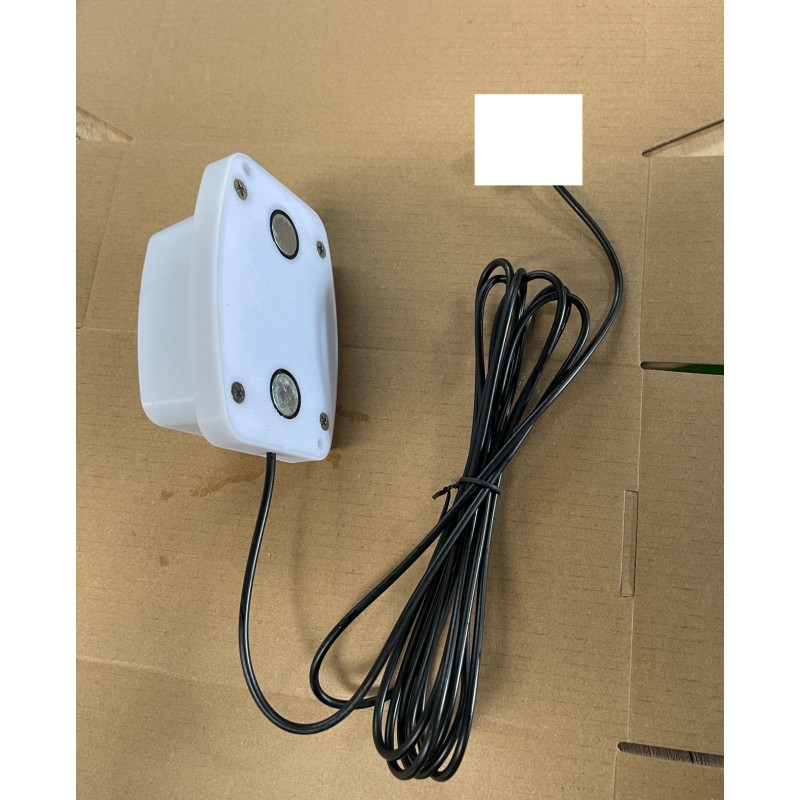

- Mounting: Wall mounting / magnetic mounting & 3M double-sided adhesive tape
- Dimensions: 100x70x45mm
Application:
5G 4G indoor/in-building IoT, navigation, tracking
ISM, M2M, CDMA, GSM, DCS, 3G/UMTS, WiFi, ISM application
Features:
Flat, aesthetically pleasing profile
2nd radio pattern, measured with 2.6m low-loss cable
Horizontal
Vertical
3.1 Gainlist, measured with 2.6m low loss cable, on 30cm * 30cm metal plate
3.2 Efficiency, measured with 2.6m low loss cable, on 30cm * 30cm metal plate
4.1 Gain list, measured with 2.6m low loss cable, in free space
4.2 Efficiency, measured with 2.6m low loss cable, in free field
5.1 VSWR. Measured with 2.6m low loss cable
5.2 Return loss. Measured with 2.6 m low-loss cable
Technical data:
Electrical specification | ||||
| Frequency (MHz) | 694-960 | 1450-2690 | 2690-3300 | 3300-6000 |
| Polarization | Dual Linear V&H | |||
| Peak Gain ( with 2,6m cable ) | 1.1dBi | 3.5dBi | 4.1dBi | 2.3dBi |
| VSWR | <3.3 | <2.2 | <2.2 | <2.0 |
| The average efficiency ( with 2.6m cable ) | 30% | 38% | 26% | 25% |
| Nominal impedance | 50 Ohm | |||
| Max. maximum power | 15 watts | |||
Mechanical specification | ||||
| Mounting type | Stick, screw, magnetic |
| Plug connector | SMA connector, straight |
| Radome | ABS, color: white/black |
| Cable | Low-loss cable, 2.6 meters |
| weight | Weight 126g ( with 2.6m cable ) |
| Dimensions | Length: 100mm Width: 70 Height: 45mm |
| Material conformity | RoHS compliant |
| Operating temperature | -30°C to +70°C |
| Storage temperature | -40°C to +85°C |
