UR FOG Modular 200 AJAX Ready
• Generation of 200 m 3 opaque fog
• Charging time is 60 minutes

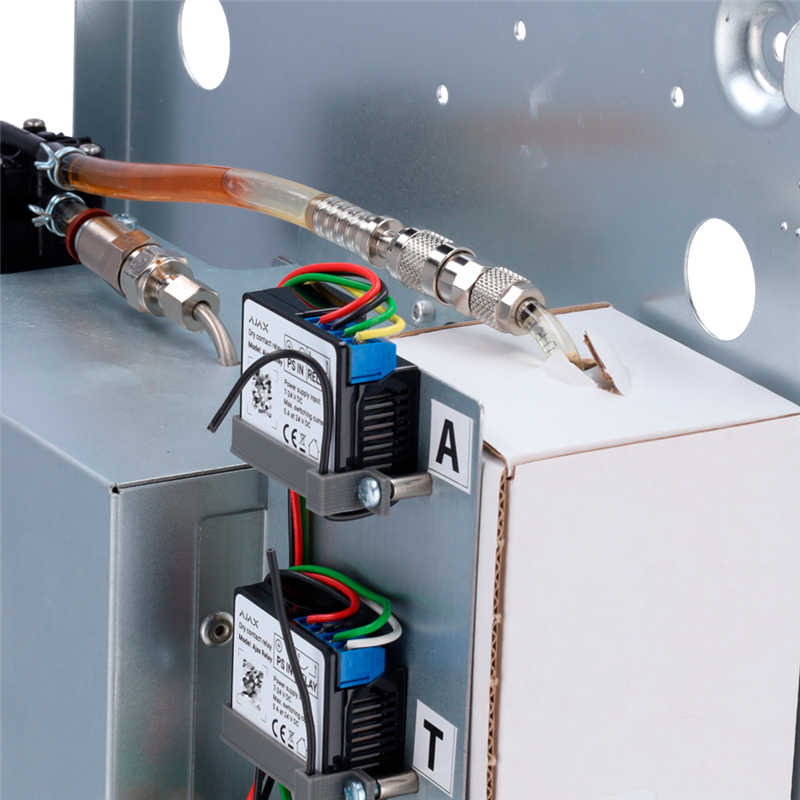

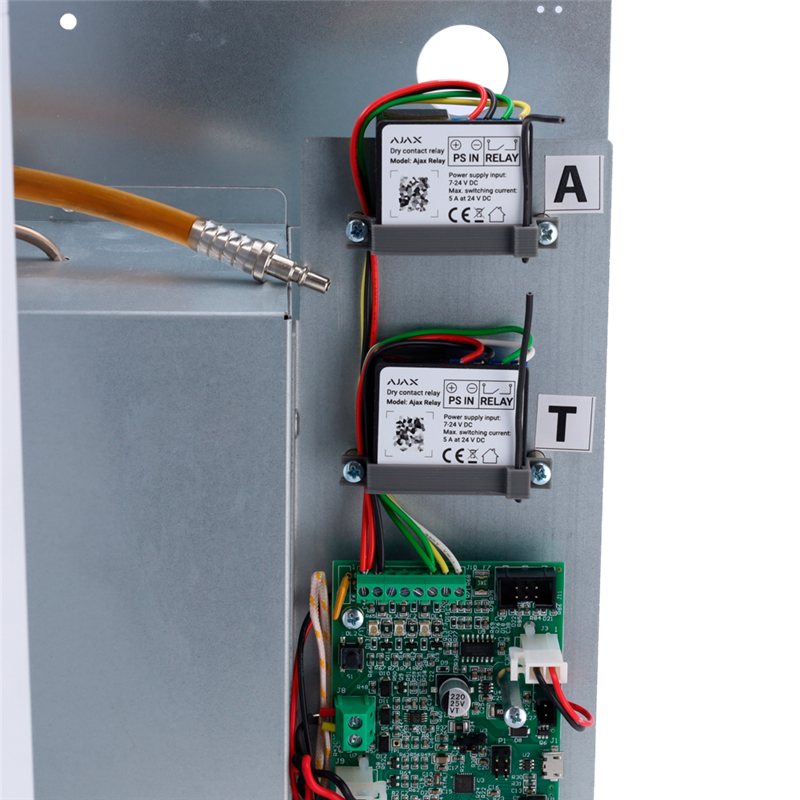

• Two Ajax relays (for arming and triggering) integrated
• Signaling by LED lights
• Output: DC 12 V, 300 mA for external peripherals
• Protection by battery possible (2x DC 12 V 2.0 Ah)
• Trigger time adjustable up to 28 seconds
• Total trigger time: 2 minutes
• Total release volume: 850 m 3
• Low energy consumption
• Color white
• Dimensions: 300 (W) x 390 (H) x 130 (D) mm
993.70
824.75
Tax included
In stock. Ordered before 3pm, delivered next working day.
UR FOG Modular 200 AJAX Ready
The AJAX Ready protective fog system from UR Fog. Easy connection of the AJAX alarm system to the protective fog generator.
Triggering the fog function with AJAX, 3 ways
AJAX motion detector : The fog formation is automatically activated by motion detection and door/window opening sensors.
AJAX MotionCam photo verification : After receiving screenshots of the current dangerous situation, the user can decide whether to trigger the protective fog system.
AJAX Button / DoubleButton / SpaceControl : The protective fog system can be manually triggered by pressing a button on one of the remote controls in a dangerous situation.
The fog liquid can be easily refilled with the 500ml refill bag.
Accessories include a desk stand, an adjustable bracket, a WIFI card, a WIFI antenna and a kit for a LAN card.
| Article | FPU03ESM200A | FPU03ESM400A | FPU03ESM800A |
|---|---|---|---|
| Max. fog output per trigger | 200m3 | 400m3 | 800m3 |
| Max. duration per trigger | 28 sec. | 46 sec. | 69 sec. |
| Max. fog output per tank filling | 850 m3 | 1200m3 | 1700 m3 |
| Filling volume of storage container | 500ml | 750ml | 1000ml |
| Bridging period | 1 H. | 1 H. | 1 H. |
| Heating time | 1 H. | 2 hours. | 2 hours. |
| Average power consumption | 37 watts | 48 watts | 48 watts |
| Power consumption heating | 170 watts | 280 watts | 280 watts |
| Pressure generator | Fog Storm - Pump | Fog Storm - Pump | Fog Storm - Pump |
| Vertical and horizontal mounting | Yes | Yes | Yes |
| Interface for expansion board | Yes | Yes | Yes |
| Battery for emergency power supply (optional) | DC 12 V / 2 Ah | DC 12 V / 2 Ah | DC 12 V / 2 Ah |
| Ejection time adjustable in seconds | Yes | Yes | Yes |
| Environmental class | II | II | II |
| Housing top | Plastic, white | Plastic, white | Plastic, white |
| Housing base | Galvanized sheet steel, grey | Galvanized sheet steel, grey | Galvanized sheet steel, grey |
| Dimensions | 390 (H) x 300 (W) x 130 (L) mm | 390 (H) x 300 (W) x 130 (L) mm | 390 (H) x 300 (W) x 130 (L) mm |
