Dahua IP Video Intercom Kit (AP)
Dahua IP Video Intercom Kit (AP)

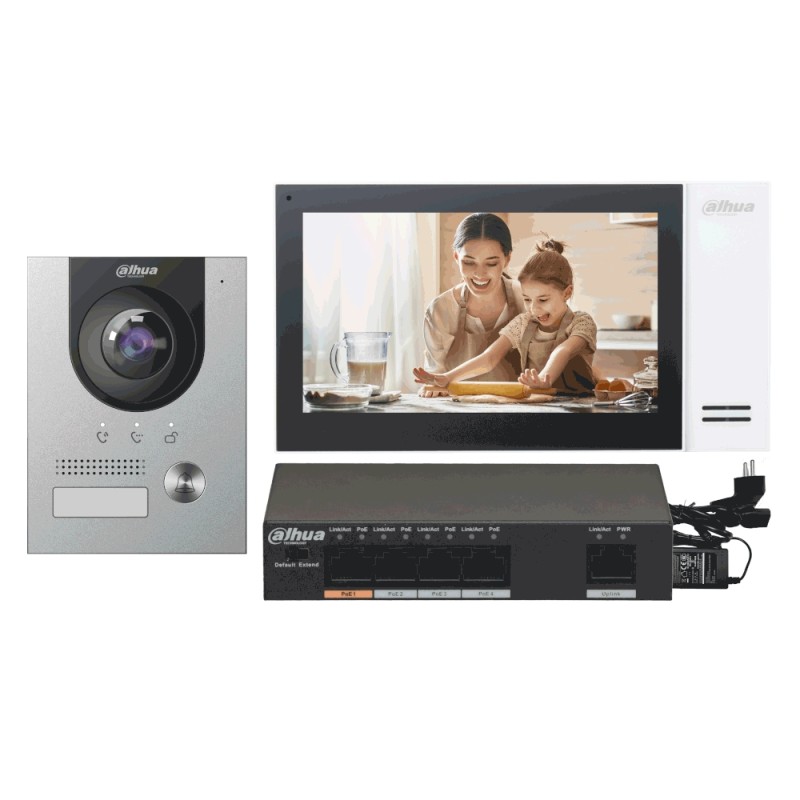

Video intercom system consisting of:
1x SDA-VTO2202FP:
Outdoor IP video door intercom, 2mm, 2MP, 160° camera angle, day/night camera, H.264, WDR, alarm in/out 1/1, for 1 user, lock release, 1x relay output, 1x RS485, 1x tamper switch, integrated microphone, integrated speaker, IP55, IK07, 12W/12VDC, PoE, operating temperature: -30°C to +60°C, dimensions: 130x96x28.5mm;
1x SDA-VTH2421FWP:
7" touchscreen monitor, 1024x600 resolution, IP, H.264, 6 alarm inputs, 1 alarm output, 1 audio input, integrated speaker, 1 RJ45, emergency call button, video call, recording, unlocking, audio and video telephony, SD slot max. 32GB, 12VDC/6W, PoE, operating temperature: -10°C to +55°C,
Dimensions: 119.6x221.5x21.5mm;
1x VDA-PFS30054ET60
PoE switch, 4x PoE ports, PoE+, Hi-PoE, dimensions: 130x85x26mm;
incl. surface-mounted mounting box
1x SDA-VTO2202FP:
Outdoor IP video door intercom, 2mm, 2MP, 160° camera angle, day/night camera, H.264, WDR, alarm in/out 1/1, for 1 user, lock release, 1x relay output, 1x RS485, 1x tamper switch, integrated microphone, integrated speaker, IP55, IK07, 12W/12VDC, PoE, operating temperature: -30°C to +60°C, dimensions: 130x96x28.5mm;
1x SDA-VTH2421FWP:
7" touchscreen monitor, 1024x600 resolution, IP, H.264, 6 alarm inputs, 1 alarm output, 1 audio input, integrated speaker, 1 RJ45, emergency call button, video call, recording, unlocking, audio and video telephony, SD slot max. 32GB, 12VDC/6W, PoE, operating temperature: -10°C to +55°C,
Dimensions: 119.6x221.5x21.5mm;
1x VDA-PFS30054ET60
PoE switch, 4x PoE ports, PoE+, Hi-PoE, dimensions: 130x85x26mm;
incl. surface-mounted mounting box
