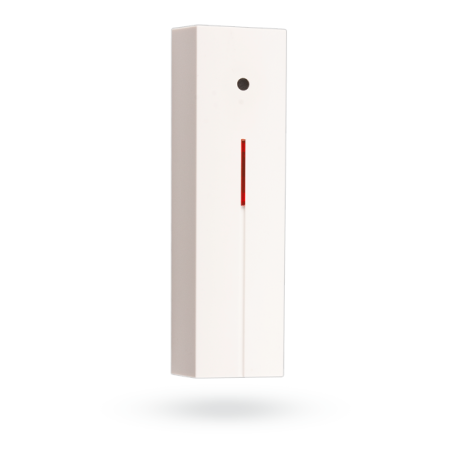

JABLOTRON 100 - Wireless Glass Break Detector JA-180B

The glass break detector analyses changes in air pressure in conjunction with the characteristic sound of shattering glass. Digital signal processing is used to avoid false alarms. The detector is assigned an address and occupies a position in the system.

Product Highlights:

• Wireless glass break detector suitable for the JA-100 system
• Detects and detects glass breaking using dual technology (change in air pressure combined with the sound of breaking glass)
• The detector uses digital signal processing for increased security against false alarms
• GBM detection range 9 m (glass pane area min. 0.6x0.6 m)
• Installation opposite the door/window pane to be monitored
• Additional alarm message via internal LED
• Delivery including battery

Technical data:

• occupies a position in the JABLOTRON 100 alarm system
• Power supply: 1 x lithium battery AA 3.6 V
• Average battery life: 2 years
• Radio frequency: 868 MHz (bidirectional)
• Radio range: up to 100m
• Installation height: 2.5 m
• Detection range: up to 9 m
• Minimum size of the glass area: 0.6 × 0.6 m
• Dimensions: 110 x 30 x 27 mm
• Environmental conditions: EN 50131-1: II, indoor
• Operating temperature: -10 degrees to 40 °C
• Safety level: Grade 2, EN 50131-1, EN 50131-2-7-1
• EAN8594052539875
