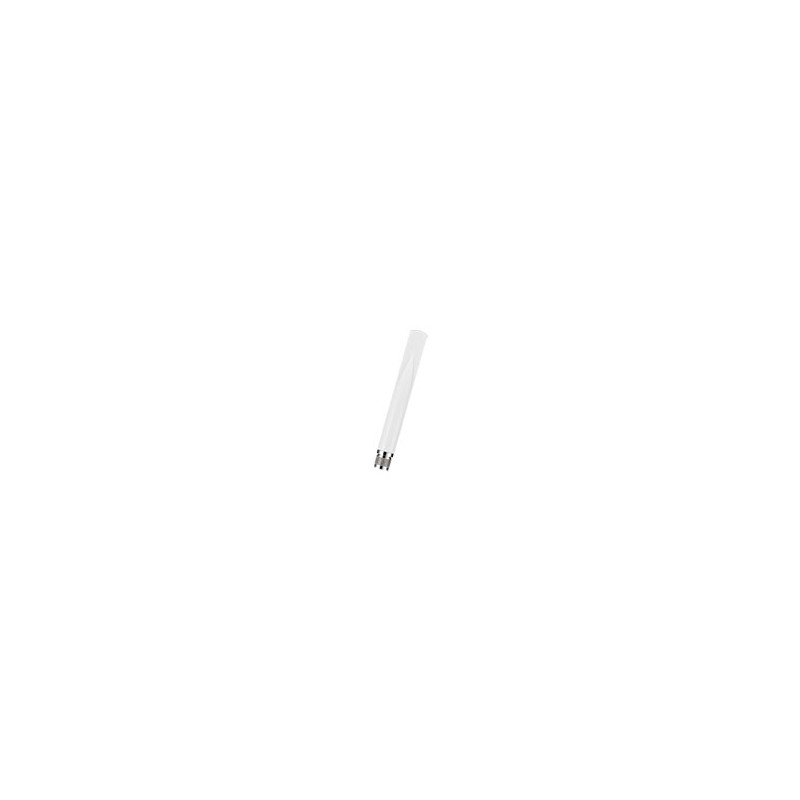

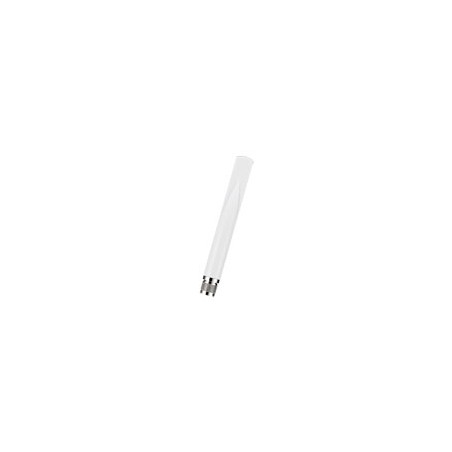

Zyxel Antenne ANT2105 Dual-Band 5dBi Omni Outdoor N-Male
Zyxel Antenne ANT2105 Dual-Band 5dBi Omni Outdoor N-Male
Dual-Band 5dBi Omni-Directional Outdoor Antenna
Dual Pack - 2 antennas for Zyxel Outdoor AP
The ANT2105 antenna is designed for use with outdoor access points. It sends the signal in all directions and covers a large area. This rod antenna is therefore very suitable for use directly on or next to the access point, which means that a large area around the access point can be covered with WiFi. Possible areas of use include campsites, outdoor storage areas, gardens, terraces or public places where access points are installed centrally.
In the 2.4GHz frequency range, the ANT2105 has a power gain of 4.5 dBi and a vertical radiation of 30°. In the 5GHz range, the power gain increases to 7 dBi and the vertical radiation is 15°.
The antenna can be connected/operated on LAN devices that have an external antenna connection. The antenna housing is made of robust and weatherproof plastic.
Technical Specifications
performance
| Antenna gain level (max) | 7dBi |
|---|---|
| Frequency band | 2.4/5GHz |
| Antenna gain (2.4 GHz) | 4.5dBi |
| Antenna gain (5 GHz) | 7dBi |
| Impedance | 50Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 30° |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 30° |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (5 GHz) | 15° |
Features
| Antenna type | Omni-directional antenna |
|---|---|
| Antenna connector type | N-type |
| Polarization | Vertical polarization |
| Purpose | Outdoor |
| Colour | White |
Operational conditions
| Operating temperature (TT) | -10 - 70 °C |
|---|---|
| Operating relative humidity (HH) | 0 - 95% |
Weight & dimensions
| Height | 183mm |
|---|---|
| Diameter | 2.2cm |
| Weight | 70g |
Logistics data
| Harmonized System (HS) code | 85177100 |
|---|
