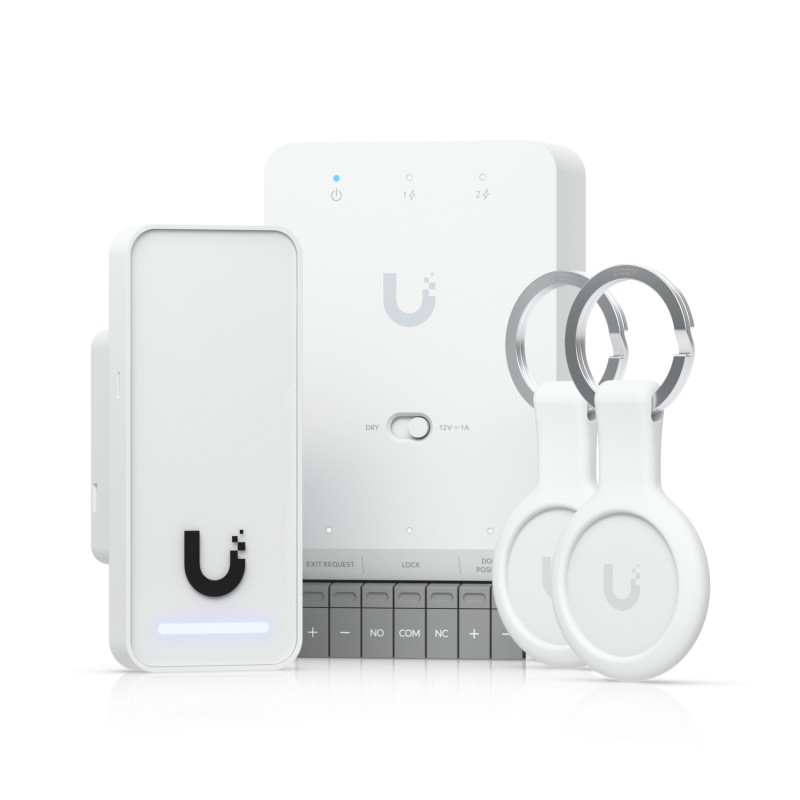

Ubiquiti UniFi Access Starter Kit Gen3 &bull UA-G3-SK

A simple, all-in-one UniFi Access kit designed to manage a single door with a single reader. Supports seamless setup and Apple Touch Pass for modern, secure access control.

• (1) Door Hub Mini
• (1) G3 Reader
• (2) Bag keychains

Technical data:

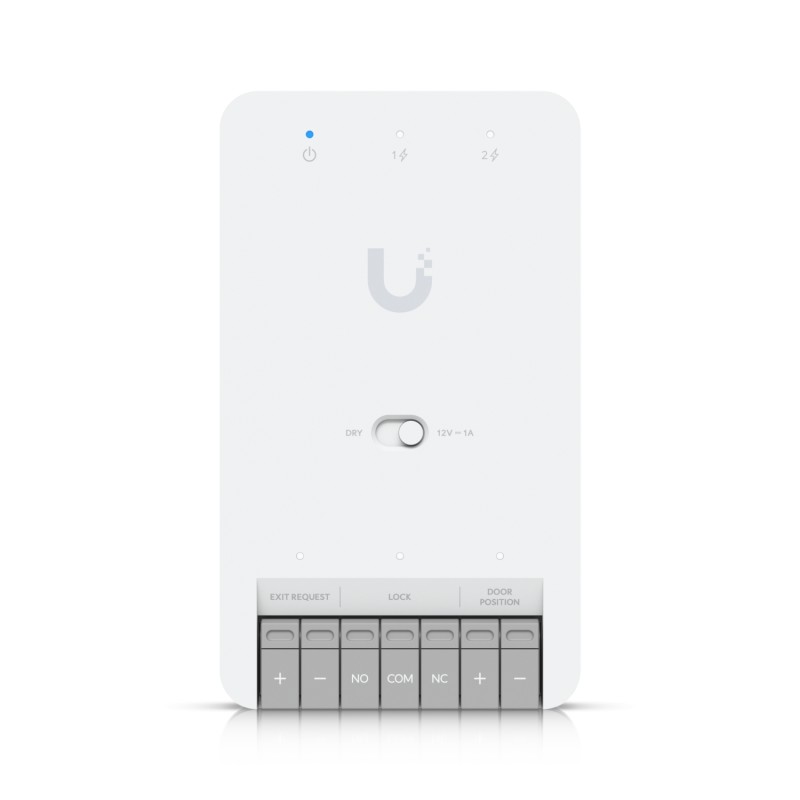

UA Hub Door Mini Mechanically
Mass	113 x 66 x 27.6mm (4.4 x 2.6 x 1.1 inches)
Weight	190g
Housing material	Polycarbonate, metal
Hardware
Network interface	(3) GbE RJ45 ports
Performance method	PoE++
Max. power consumption	Without PoE output: 19 W With PoE output: 50 W
PoE input	50 V DC, 1 A
PoE output	(2) PoE ports, total 31 W
button	(1) Factory reset (1) Dry/Wet switch
Digital input	Exit request/door position sensor
Output relay	Dry: 30 V DC, 1 A Wet: 12 V DC, 1 A
Recommended max. cable length
	18 AWG UACC cable door lock relay length	20 AWG length	22 AWG length	24 AWG length
UA-Lock-Electric (400mA)	100 m	66 m (217 feet)	42 m (138 feet)	25 m
UA-Lock-Magnetic-270kg (800mA)	46 m (151 feet)	30 m (98 feet)	20 m	12 m (29 feet)
UA-Lock-Magnetic-540kg (500mA)	80 m	51 m	32 m (105 feet)	20 m
Other castles (1A)	36 m (118 feet)	24 m (79 feet)	15 m (49 feet)	9 m (30 feet)

PoE cabling requirements: The recommended minimum performance category is 5e cable. The performance category used should match the transmission speed required at the installation site.
The minimum wire size for the connection between the PSE or Power Injector and the PD is 26 AWG (0.13 mm2 ⁾ for patch cords and 24 AWG (0.21 mm2 ⁾ for horizontal or riser cables. Operating Environment Indoor use only. Ambient Operating Temperature -10 to 40°C (14 to 104°F) Operating Humidity 5 to 90% non-condensing Software Information A product's software version can be verified at https://unifi.ui.com. Certifications CE, FCC, IC Document number and issue date or revision level UA-Hub-Door-Mini, V01 Software UniFi Access Management Application : Version 2.5.2 and higher LEDs PoE Input System Status PoE Output Line Status/Activity Input/Output Relay Line Status/Activity UA-G3

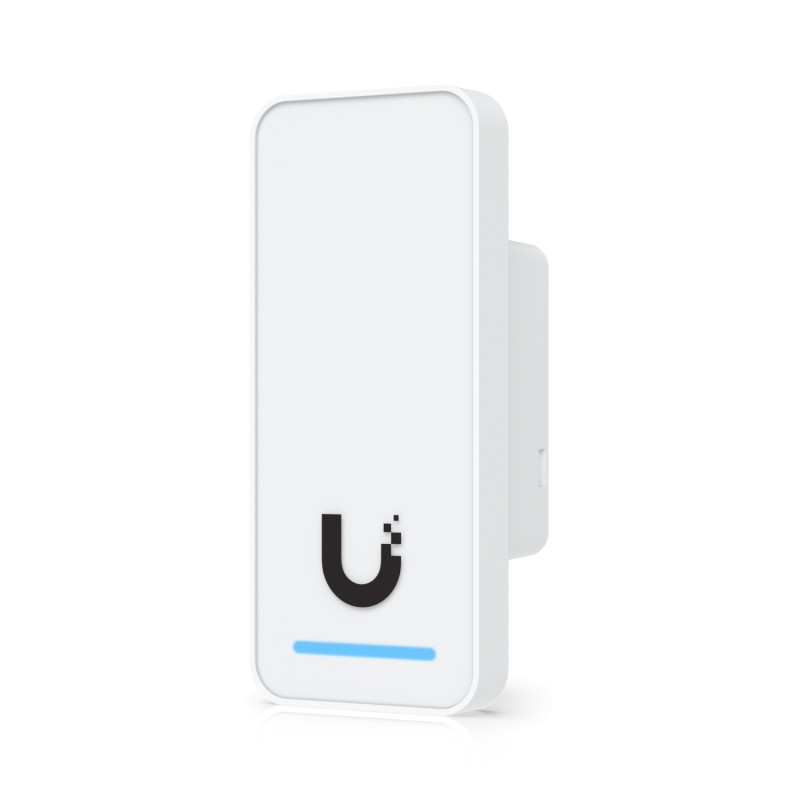

Mechanical Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4 in) Weight 82 g (2.9 oz) Housing Material Polycarbonate, Glass Mounting Material Aluminum alloy Mounting In-wall, Junction box Weatherproofing IP55 Hardware Network Interface (1) 10/100 MbE RJ45 port Connectivity BLE 4.1
NFC power method PoE
UL 294 Class 2 Power Limited Power Supply
UL 60950-1/62368-1 LPS/PS2 Power supply Supported voltage range 48 V DC Max. power consumption 5 W ESD/EMP protection Air: ±15 kV, Contact: ±8 kV Sensors Proximity sensor Speaker (1) 8 Ohm, 0.7 W LEDs (1) Status light Button (1) Factory reset NFC frequency 13.56 MHz NFC reading range < 30 mm NFC technology ISO/IEC 14443A / 14443B / 15693 / 18092 (ECMA 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa (ID only)
NFC Forum Tags T1T, T2T, T3T, T4T and T5T
ECP 2.0 Operating Environment Outdoor Operating Ambient Temperature -30 to 45°C (-22 to 113°F) Operating Humidity 5 to 90% non-condensing Software Information A product's software version can be verified at https://unifi.ui.com UL 294 Level Destructive Attack: Level I
Line safety: Level I
Endurance: Level I
Standby power: Level I UL 294 Declaration Compliance with IEEE 802.3 specifications has not been verified under UL 294.
The equipment shall comply with the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. PoE Cabling Requirements: The recommended minimum performance category is cable 5e. The performance category used should be appropriate for the transmission speed required at the installation site.
The minimum wire size for the connection between the PSE or Power Injector and the PD is 26 AWG (0.13 mm2 ⁾ for patch cords and 24 AWG (0.21 mm2 ⁾ for horizontal or riser cables. CAN/ULC-60839-11-1 Quality Grade: I Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number and issue date or revision level UA-G3, V01 Software UniFi Access management application : Version 3.0.15 and higher UA-

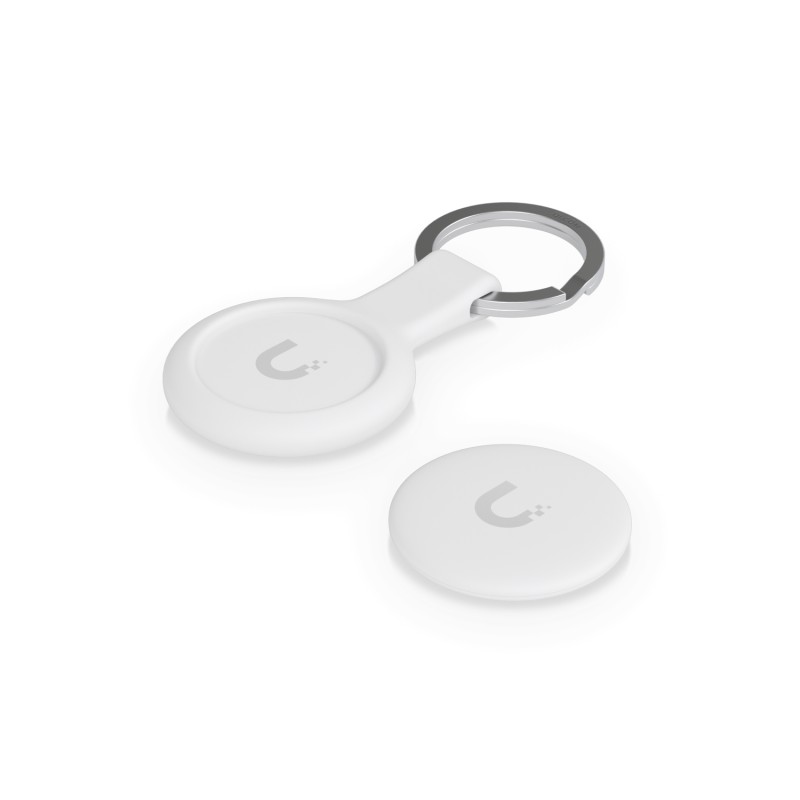

Pocket mechanism Dimensions 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29 in) Weight 16 g (0.56 oz) Housing material Polycarbonate, stainless steel, silicone rubber Weather resistance IP54 Hardware NFC frequency 13.56 MHz NFC technology ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary security protocol Operating ambient temperature -10 to 45°C (14 to 113°F) Operating humidity 10 to 90% non-condensing Certification CE
