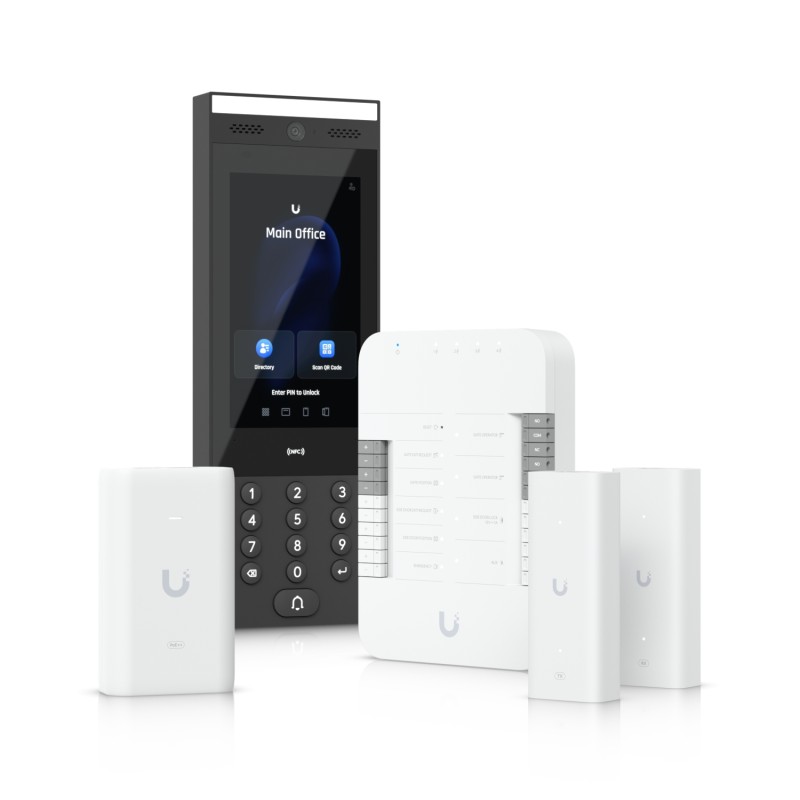

Ubiquiti UniFi Gate Access Starter Kit / (1) Gate Hub / PoE++ adapter / UA-SK Gate
Ubiquiti UniFi Gate Access Starter Kit / (1) Gate Hub / PoE++ adapter / UA-SK Gate
Ubiquiti UniFi Gate Access Starter Kit / (1) Gate Hub / PoE++ adapter / UA-SK Gate
Control a vehicle gate using the connected intercom and authorize gate access with license plate unlock when paired with a compatible Protect AI camera*.

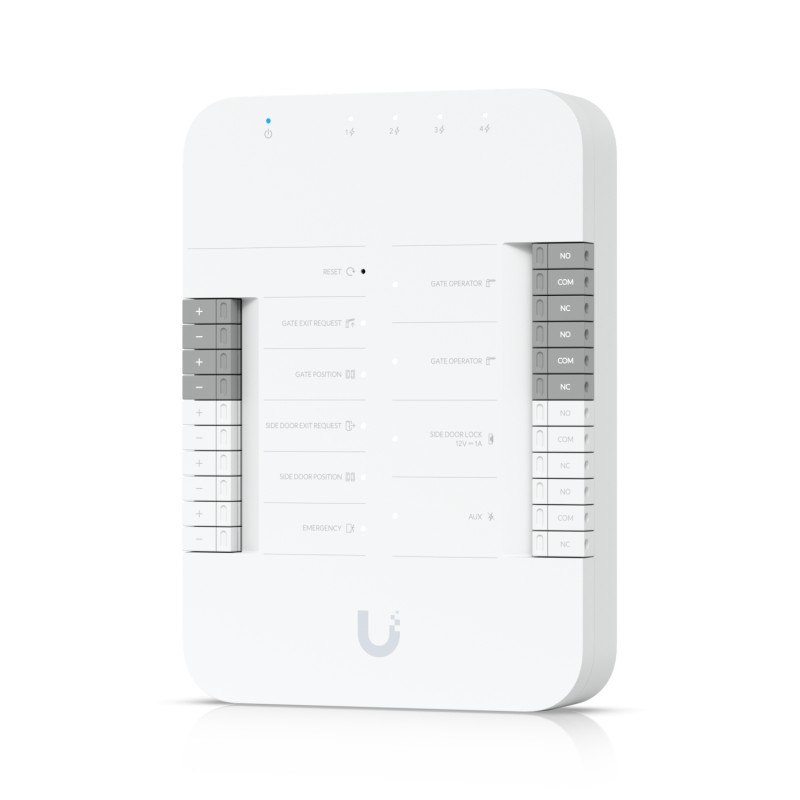

| UA Hub Gate Mechanically | |
|---|---|
| Mass | 175 x 126 x 26mm (6.9 x 5 x 1 inch) |
| Weight | 460 g (1 lb) |
| Housing material | Polycarbonat |
| Assembly | DIN rail (included) |
| Hardware | |
| Network interface | (5) 10/100/1000 Base-T |
| Performance method | PoE++ |
| Max. power consumption | Without PoE output: 22 W With PoE output: 50 W |
| PoE input | 50 V DC, 1 A |
| PoE output | PoE passthrough, (4) PoE, 50V DC, 28W max |
| button | (1) Factory reset |
| Digital input | Door exit request, door position, side door exit request, side door position, emergency |
| Dry output relay | (2) Operator: Rated voltage 30 V DC, up to 1 A (1) Aux: Rated voltage 30 V DC, up to 1 A |
| Powered output relay | Side door lock: 12 V DC, up to 1 A |
| Operating environment | Indoor use only with the device itself. Outdoor use with waterproof junction box. |
| Ambient temperature during operation | -30 to 60 °C (-22 to 104 °F) |
| Humidity during operation | 5 to 90% non-condensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| PoE input | Solid white: takeover pending Solid blue: Accepted, device is ready White/blue flashing: Firmware is being updated |
| PoE output | Off: Not connected or no data connection. Solid white: Connected and data connection active. |
| Input connections | Off: No cable. Solid white: cable connected. Flashing white: Active signal. |
| Output relay | Off: No cable. Solid white: cable connected. Flashing white: Relay triggered. |

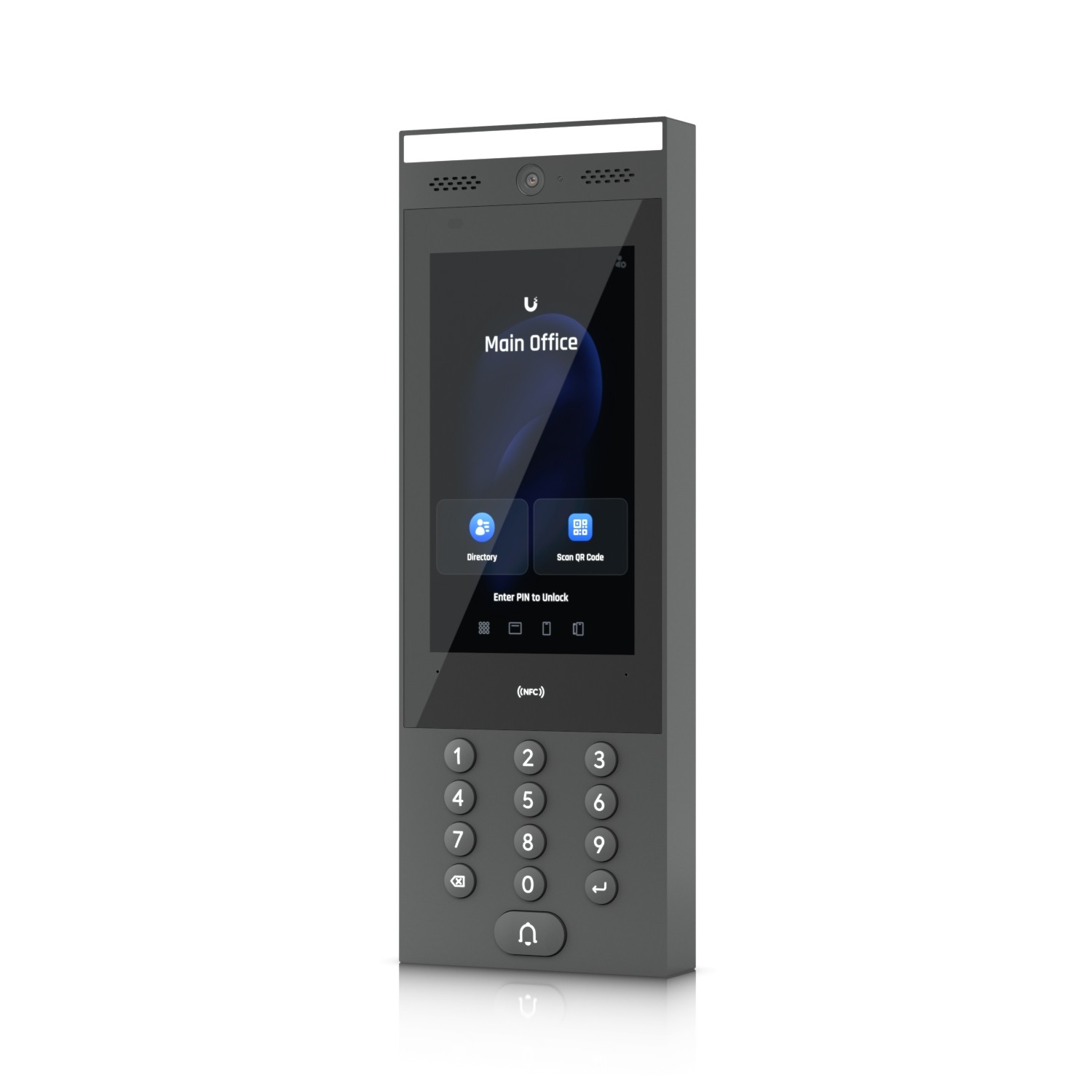

| UA intercom Mechanically | |
| Mass | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1 inches) |
| Weight | Device: 965 g (2.1 lb) Mount: 445 g (1 lb) |
| Housing material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mounting material | Powder-coated stainless steel |
| Assembly | Wall mount, adapter for gooseneck base (included) Surface angle bracket, flush mounting (optional) Sun protection kit (optional) |
| Weather resistance | IP65 |
| Hardware | |
| Network interface | (1) GbE RJ45 connector |
| Connectivity | Bluetooth 4.2 NFC |
| Performance method | PoE UL 294 Class 2 Power Limited Power Supply UL 60950-1/62368-1 LPS/PS2 power supply |
| Supported voltage range | 48 V DC |
| Max. power consumption | 13W |
| ESD/EMP protection | Air: ±15kV, Contact: ±8kV |
| Sensors | Proximity sensor ALS sensor |
| camera | 3264 x 2448, 8 MP H: 79.4°, V: 97.5°, T: 118.2° |
| Advertisement | 177 mm (7") diagonal |
| resolution | 1024 x 600 (16:9) |
| Display luminance | Max. 1000 nits (typical) |
| Touchscreen technology | Capacitive multi-touch |
| microphone | Yes |
| Speaker | (1) 4 ohms, 2W |
| LEDs | (1) LCM low temperature indicator: orange (LCM will turn off at temperatures below -25°C, but the system will operate normally) (1) LED floodlight (13) LED backlight of the keyboard |
| button | (1) Factory reset |
| NFC frequency | 13.56 MHz |
| NFC reading range | < 30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Ambient temperature during operation | Device: -30 to 60 °C (-22 to 140 °F) Display:* -25 to 60 °C (-13 to 140 °F) *The display will turn off if the ambient temperature is above/below the display's operating temperature, but other functions will remain functional. (Valid from firmware version 1.0.66) |
| Operating environment | Outdoor area |
| Humidity during operation | 5 to 90% non-condensing |
| Software information | The software version of a product can be checked at https://unifi.ui.com. |
| UL 294 level | Destructive Attack: Level I Line safety: Level I Endurance: Level I Standby power: Level I |
| UL 294 Declaration | Compliance with IEEE 802.3 specifications has not been verified under UL 294. The equipment shall comply with section 725.121 of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and 3 Circuits. |
| PoE cabling requirements | The recommended minimum performance category is cable 5e. The performance category used should correspond to the transmission speed required at the installation site. The minimum wire size for the connection between PSE or Power Injector and PD is 26 AWG (0.13 mm2 ) for patch cables and 24 AWG (0.21 mm2 ) for horizontal or riser cables. |
| CAN/ULC-60839-11-1 quality | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number and issue date or revision status | UA intercom, V01 |

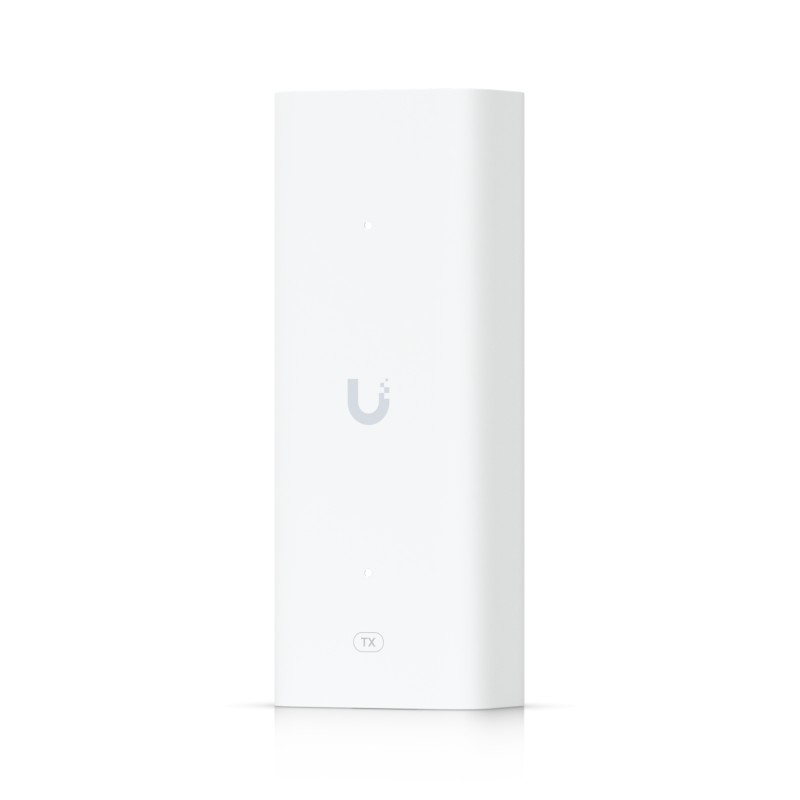

| UACC-Extender-2Wire-PoE-Tx/Rx Mechanically | |
| Mass | 40 x 105 x 25mm (1.6 x 4.1 x 1 inch) |
| Weight | PoE input: 77 g (2.7 oz) PoE output: 79 g (2.8 oz) |
| Housing material | Polycarbonat |
| Mounting material | Polycarbonat |
| Hardware | |
| Network interface | (1) 10/100 MbE (1) Homeplug AV |
| Performance method | PoE++ |
| Max. power consumption | 3 W (without PoE output) |
| PoE input | (1) PoE++, 50 V DC, max. 1.2 A |
| PoE output | (1) PoE+, 48 V DC, 0.72 A |
| ESD/EMP protection | Air: ±8kV, Contact: ±4kV |
| LED | White |
| Ambient temperature during operation | -10 to 40 °C (14 to 104 °F) |
| Humidity during operation | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |

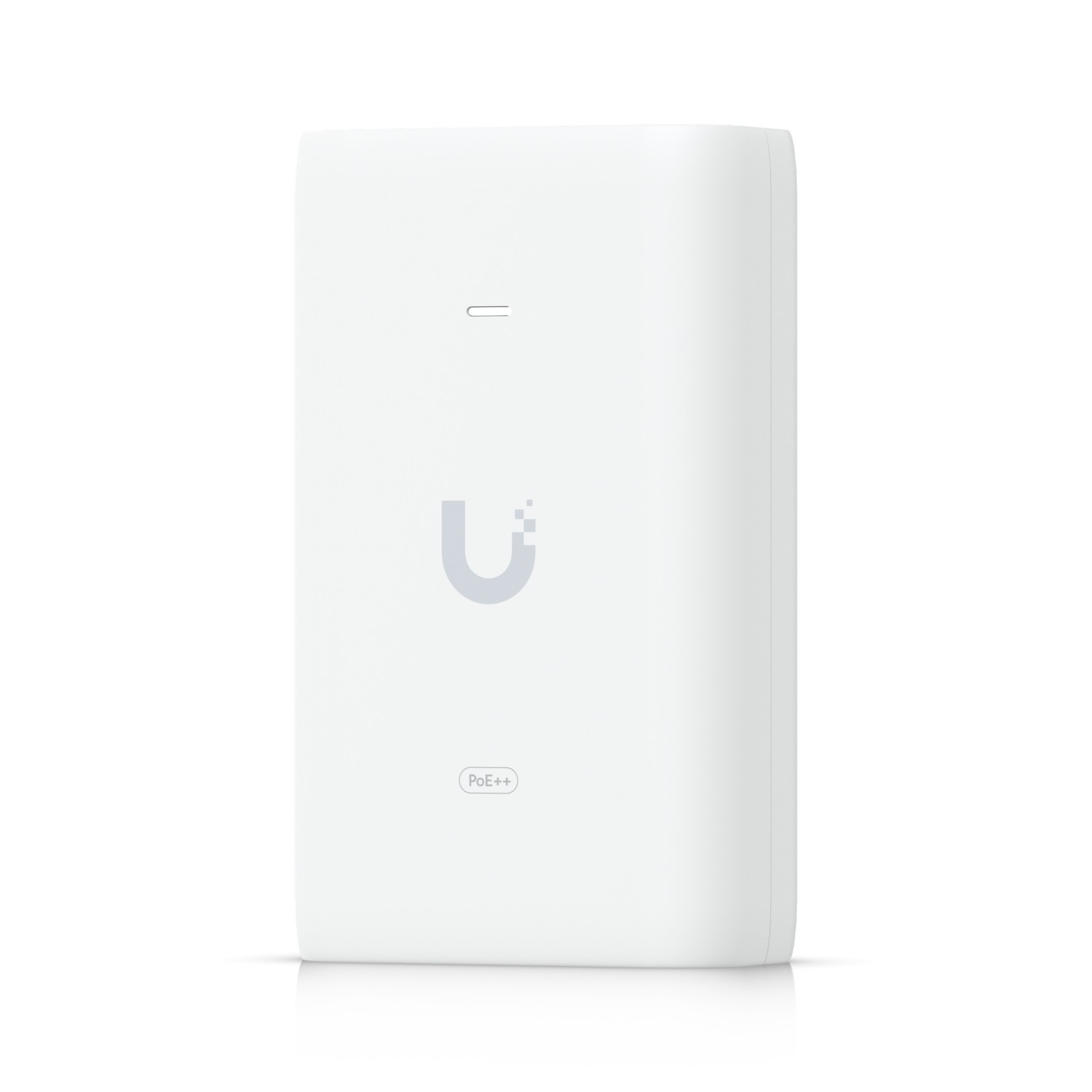

| U-PoE++ Specifications | |
| Model | U-PoE++ |
| Mass | 106 x 63 x 34mm (4.2 x 2.5 x 1.3 inches) |
| Weight | 210 g |
| Output voltage | 48 V DC at 1.25 A |
| LAN activity indicator | NO |
| Gigabit LAN port | Yes |
| Remote reset function | NO |
| Reset button | NO |
| Nominal voltage | 100240 V AC at 50/60 Hz |
| Input current | 1.3 A at 120 V AC, 0.75 A at 230 V AC |
| Inrush current | <100 A peak at 120 V AC <200 A peak at 230 V AC |
| Efficiency | 85+% |
| Output ripple | 1% max. |
| Switching frequency | 65 kHz |
| Line control | = 1% |
| Load control | = 3% |
| 2-pair power supply | NO |
| 4-pair power supply | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC connection | IEC-320 C6 |
| Data input/PoE | RJ45 shielded socket |
| Surge protection | Differential and common mode |
| pinch protection | 11 V data, 60 V power |
| Max. surge discharge | 1500A (8/20 µs) power |
| Peak pulse current | 36A (10/1000 µs) data |
| Shunt capacitance | <5 pF data |
| response time | <1 ns |
| Performance method | Universal AC input, 100-240 V AC, 50/60 Hz |
| Power supply | Alternating current/direct current |
| Supported voltage range | 100240 V AC |
| Max. PoE+ power per port through PSE | 60 W |
| Ambient temperature during operation | 0 to 40 °C (32 to 104 °F) |
| Storage temperature | -30 to 70 °C (-22 to 158 °F) |
| Humidity during operation | 10 to 95% non-condensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
| software | |
| Management application | UniFi Access: Version 2.1.5 and higher UniFi Protect: Version 4.0.33 and higher |
