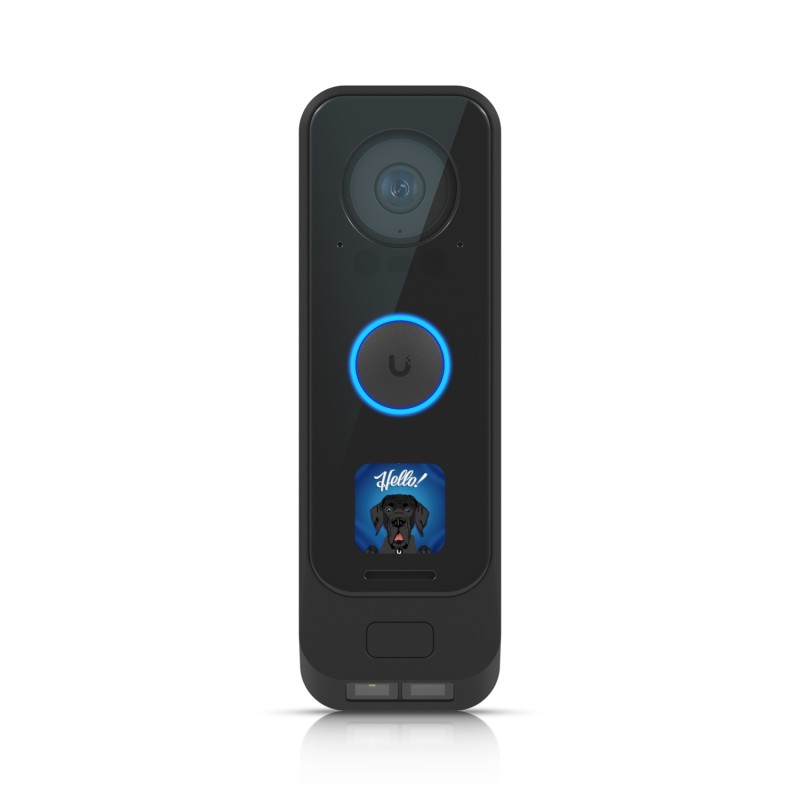

Ubiquiti Unifi Protect G4 Doorbell Professional PoE Kit / Türklingel / Wifi / 8MP Kamera / 2-Way Audio / UVC-G4 Doorbell Pro PoE
Ubiquiti Unifi Protect G4 Doorbell Professional / Wifi / 8MP Camera / 2-Way Audio / UVC-G4 Doorbell Pro
Ubiquiti Unifi Protect G4 Doorbell Professional PoE Kit / Türklingel / Wifi / 8MP Kamera / 2-Way Audio / UVC-G4 Doorbell Pro PoE
Premium UniFi doorbell with enhanced packet detection camera and integrated display.
Improved HDR and low-light performance

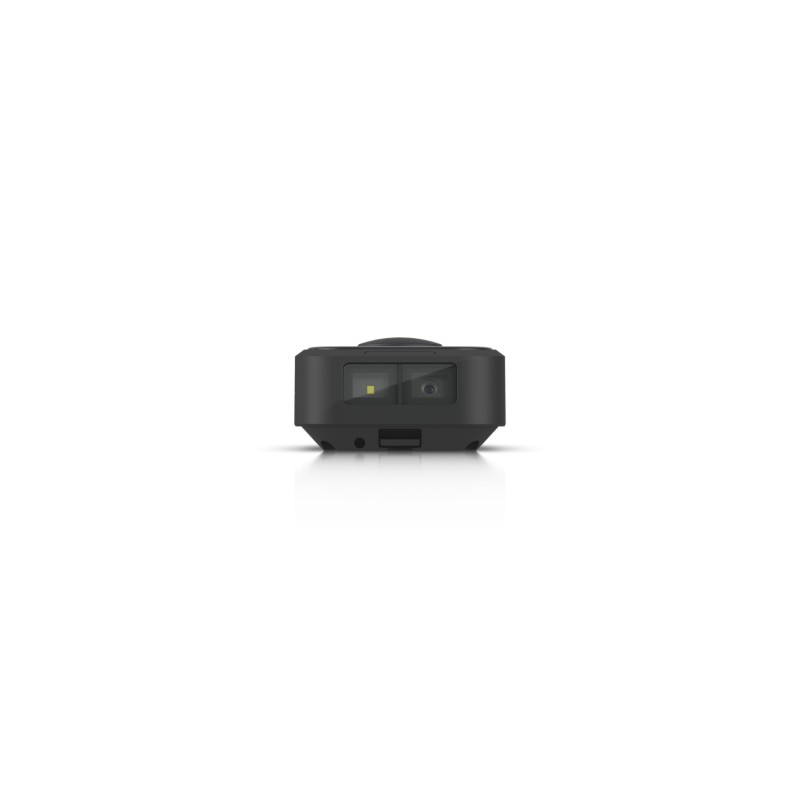

Programmable welcome display and secondary package detection camera
6 m (20 ft) IR night vision
AI event detection
Wirelessly connected with UniFi WiFi Auto-Link*
Integrated 2-way audio
Weatherproof (outdoor covered)
*Third-party Wi-Fi configuration available during setup with the UniFi Protect mobile app.
Contains:
UVC-G4 Doorbell Pro
Technical specifications
| Mechanically | |
|---|---|
| Mass | 160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1 inches) |
| Weight | Without mount: 253 g (8.9 oz) With flat wall mount: 286 g (10.1 oz) With 20° wedge mount: 325 g (11.5 oz) |
| Housing material | Polycarbonate, aluminum alloy |
| Mounting material | Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate |
| Weather resistance | IPX4 |
| optics | |
| sensor | Main camera: 5MP CMOS Package camera: 8MP CMOS |
| lens | Fixed focal length |
| perspective | Main camera: H: 138°, V: 114°, D: 155° Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
| Night mode | Integrated IR LED illumination and IR cut filter |
| video | |
| resolution | Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3) |
| Maximum frame rate | 30 FPS |
| system | |
| processor | Quad-core chip based on Arm® Cortex®-A53 |
| Network interface | 802.11a/b/g/n/ac WiFi Bluetooth 5.0 GbE support (with UACC adapter DBPOE) |
| Max. power consumption | 10 W |
| Performance method | 16–24 V AC, 1.25 A max., 50/60 Hz USB-C power cable, 5 V DC, 2 A |
| Supported voltage range | 37–57 V DC |
| LED | Link/Activity |
| button | (1) Ringtone button (1) Factory reset |

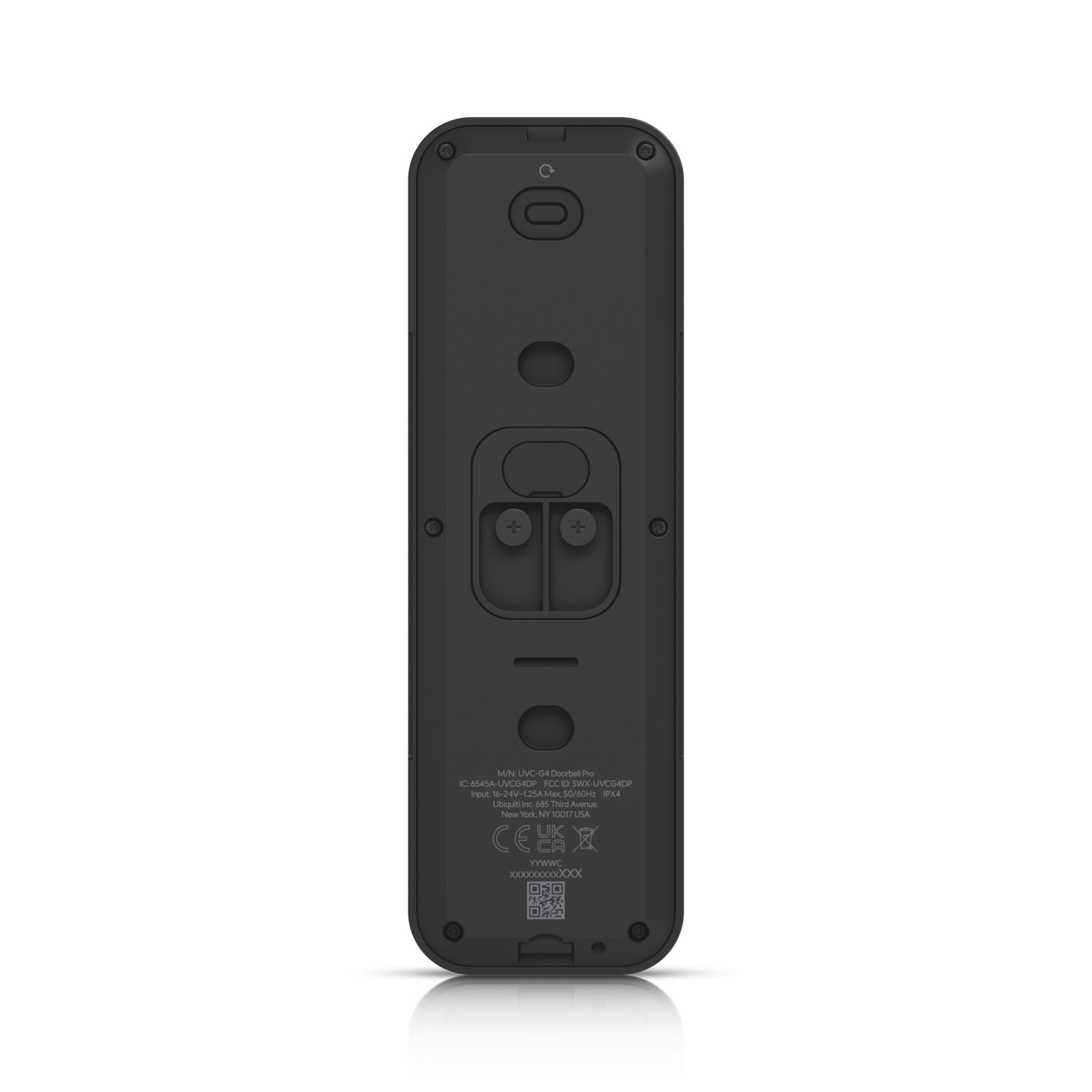

| Assembly | Flat wall, 20° wedge (included) |
| Ambient temperature during operation | -10 to 40ºC (14 to 104ºF) |
| Humidity during operation | 10 to 90% non-condensing |
| Certifications | FCC, IC, CE |
| Audio | |
| microphone | Yes (can be deactivated) |
| Speaker | Yes |
| software | |
| Internet application | UniFi Protect: Version 1.21.0 and higher |
| App | UniFi Protect iOS™: Version 1.5.8 and higher UniFi Protect Android™: Version 1.4.8 and higher |
| Compatible mechanical chimes | |
| Manufacturer Broan-NuTone Broan-NuTone Heath Zenith Handmade Broan-NuTone Newhouse Hardware | Model LA126WH LA11WH SL-2735 CTPW-RG LA39WH CHM3D |
| Compatible digital ringtones | |
| Manufacturer Broan-NuTone IQ AMERICA IQ AMERICA | Model LA600WH DW-2850 DW-2840 |
