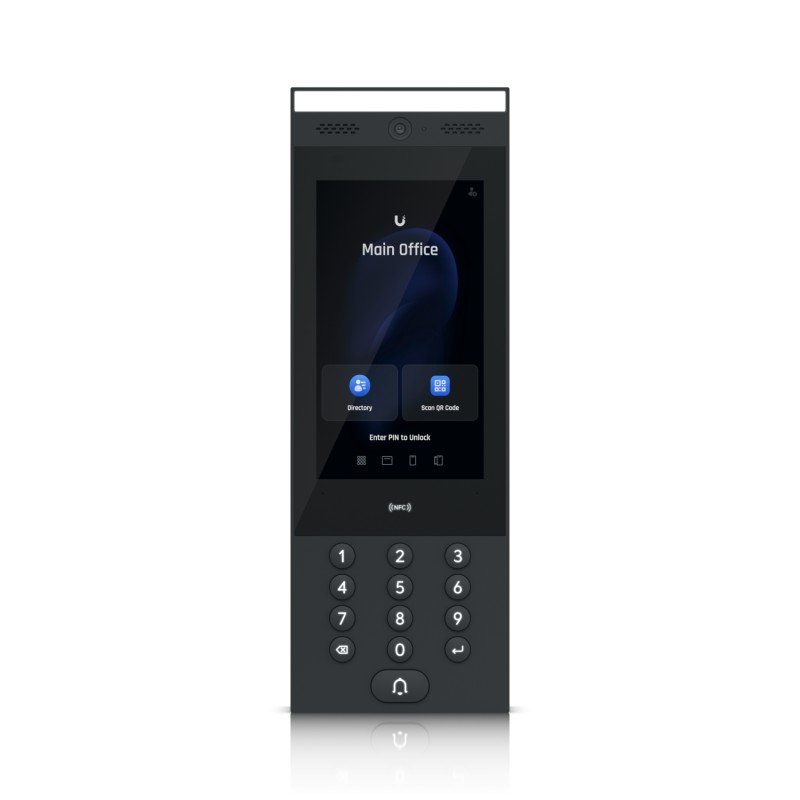

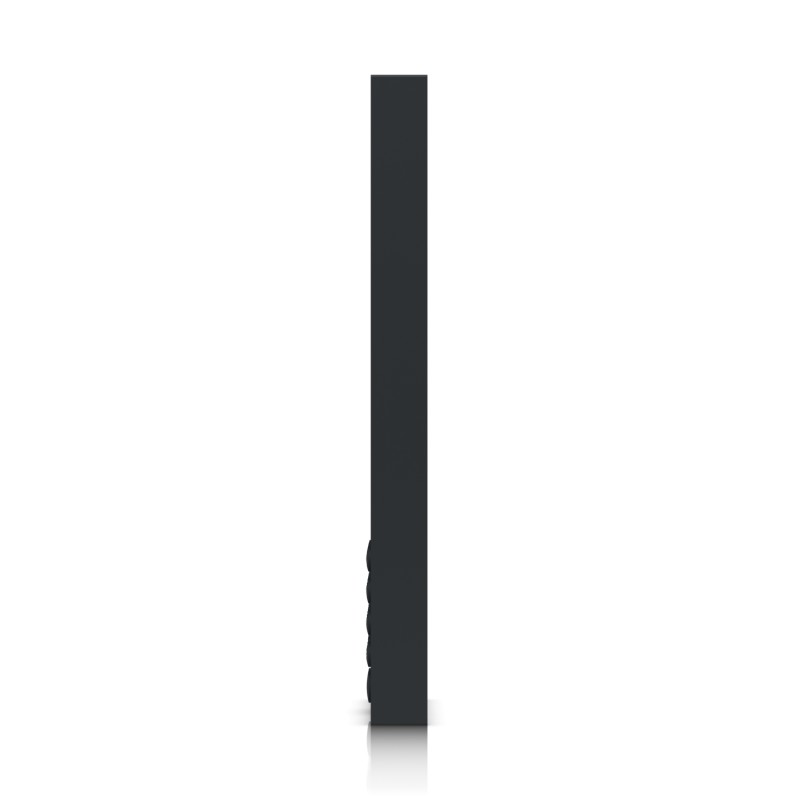

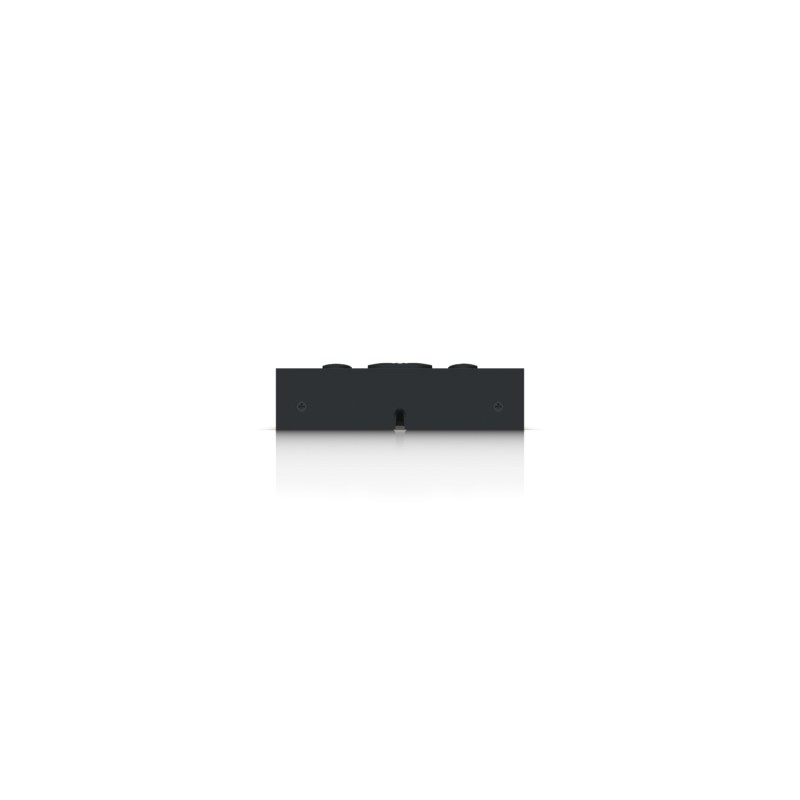

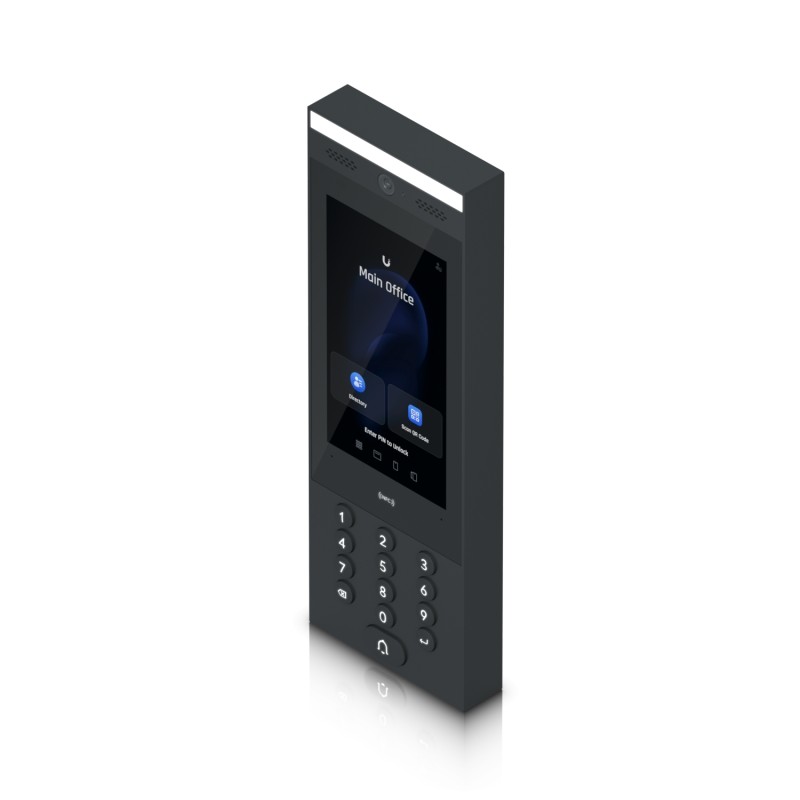

Ubiquiti Unifi Intercom / Intercom / Indoor & Outdoor / 8MP Camera / UA Intercom
Ubiquiti Unifi Intercom / Intercom / Indoor & Outdoor / 8MP Camera / UA Intercom
Ubiquiti Unifi Intercom / Intercom / Indoor & Outdoor / 8MP Camera / UA Intercom
Indoor/outdoor intercom terminal for managing access requests for residential and commercial buildings.
Unlock with an NFC card, the UniFi Identity mobile app, a PIN code, or a QR code
Directory and doorbell for admission request
Can be paired with multiple UniFi Intercom Viewers for remote access control
Connects to the UniFi Access Hub series via PoE
Weatherproof (exposed outdoors -30 to 60 °C)
Technical specifications
| Mechanically | |
|---|---|
| Mass | 324.8 x 113.7 x 28.3mm (12.8 x 4.5 x 1.1") |
| Weight | Device: 965 g (2.1 lb) Mount: 445 g (1 lb) |
| Housing material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mounting material | Powder-coated stainless steel |
| Assembly | Wall mount, adapter for the gooseneck base (included) Surface-mounted angle mounting, flush-mounted mounting (optional) Sun protection kit (optional) |
| Weatherproof | IP65 |
| Hardware | |
| Network interface | (1) GbE RJ45 port |
| Connectivity | Bluetooth 4.2 NFC |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. energy consumption | 13W |
| ESD/EMP protection | Air: ±15kV, Contact: ±8kV |
| Sensors | Proximity sensor ALS sensor |
| camera | 3264 x 2448, 8 MP H: 79.4°, V: 97.5°, T: 118.2° |
| Advertisement | 177 mm (7") diagonal |
| resolution | 1024 x 600 (16:9) |
| Show luminance | Max. 1000 nits (typical) |
| Touchscreen technology | Capacitive multitouch |
| microphone | Yes |
| Speaker | (1) 4 ohms, 2W |
| LEDs | (1) LCM low temperature indicator: orange (LCM turns off when the temperature is below -25 °C, but the system functions normally) (1) LED floodlight (13) LED backlight of the keyboard |
| button | (1) Factory reset |
| NFC frequency | 13.56 MHz |
| NFC reading range | < 30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Ambient temperature during operation | Device: -30 to 60 °C (-22 to 140 °F) Display:* -25 to 60 °C (-13 to 140 °F) *The display will turn off if the ambient temperature is above/below the display operating temperature, but other functions will remain functional. (Valid after firmware version 1.0.66) |
| Ambient humidity during operation | 5 to 90% non-condensing |
| Certifications | CE, FCC, IC |
| software | |
| Management application | UniFi Access: Version 1.22.17 and higher |
