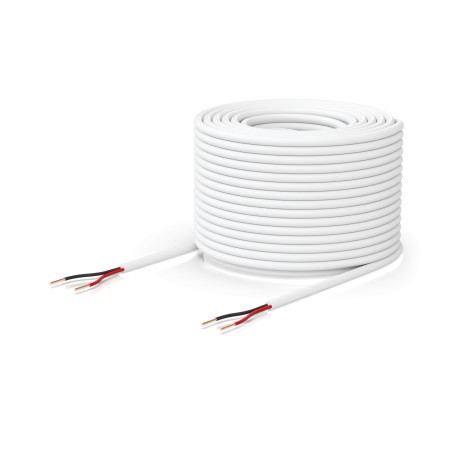

Ubiquiti UniFi Door Lock Relay Cable 1P
Ubiquiti UniFi Door Lock Relay Cable 1P
1-pair relay cable: Connects an electric/magnetic lock to an Access Hub
2-pair relay cable: Connects an electric/magnetic lock and a door position sensor to an Access Hub
1-pair relay cable:
– (2) 18 AWG conductors for an electrical/magnetic interlock
2-pair relay cable:
– (2) 18 AWG conductors for an electric/magnetic lock
– (2) 22 AWG conductors for a door position sensor
Cable length 152.4 m
Plenum-rated
Technical specifications
| Specifications | |
|---|---|
| Weight | UACC-Cable-DoorLockRelay-2P: 5.6 kg kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb) |
| Cable length | 152.4 m (500 feet) |
| Coat OD | UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17") |
| Sheath material | Thermoplastic elastomer (TPE) |
| Coat color | White |
| Conductor wire thickness | UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG |
| Insulating material | Semi-rigid polyvinyl chloride (SR-PVC) |
| Insulating paint | UACC-Cable-DoorLockRelay-2P: black/red (18AWG), yellow/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG) |
| Number of conductors | UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2 |
| Conductor material | Solid bare copper |
| Max. tension | UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf |
| Minimum bending radius | UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3") |
| Conductor DCR | UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohms/km (18AWG) |
| voltage | 36V DC |
| Flame assessment | VW-1 |
| Current rating | 18AWG: 2A for 500 feet length. 22AWG: 1A for 500 feet length |
| Storage temperature | -45 to 65 °C (-40 to 149 °F) |
| Operating temperature | -45 to 65 °C (-40 to 149 °F) |
