Ubiquiti Unifi Protect G4 Doorbell Professional PoE Kit / Doorbell / Wifi / 8MP Camera / 2-Way Audio / UVC-G4 Doorbell Pro PoE

Article Nr 221644
Ubiquiti Unifi Protect G4 Doorbell Professional PoE Kit / Doorbell / Wifi / 8MP Camera / 2-Way Audio / UVC-G4 Doorbell Pro PoE Kit
416.80
Tax included
Item not in stock
Add to Cart
Add to Cart

Ubiquiti Unifi Protect G4 Doorbell Professional PoE Kit / Doorbell / Wifi / 8MP Camera / 2-Way Audio / UVC-G4 Doorbell Pro PoE

Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation. Color: Black

Improved HDR and low-light performance

Programmable welcome display and secondary package detection camera

AI event detection

Connection and power supply via PoE

Integrated 2-way audio

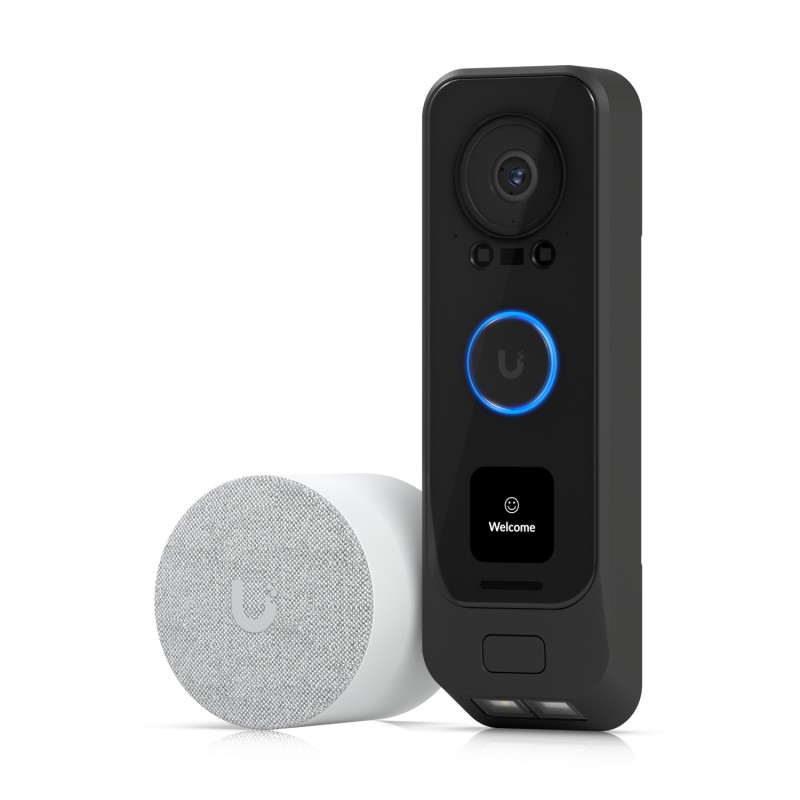

Including PoE chime

Weatherproof (outdoor covered)

Contains:

- UVC-G4 Doorbell Pro

- UP Chime

Technical specifications

Mechanically
Mass UVC-G4 Doorbell Pro-
Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4 inches)
Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7 inches)
Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1 in)
Surface mounting: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1 in)

UP-Chime PoE-
Device: Ø62 x 54 mm (Ø2.5 x 2.1 inches)
In-wall mounting: Ø89 x 63.1 mm (Ø3.5 x 2.5 inches)
Surface mounting: Ø62 x 20.2 mm (Ø2.5 x 0.8 inches)
Weight UVC-G4 Doorbell Pro-
Device: 264 g (9.3 oz)
Wall mount: 56 g (2 oz)
Wedge: 33 g (1.2 oz)
Effort mount: 53 g (1.9 oz)

UP-Chime PoE-
Device: 158 g (5.6 oz)
In-wall mount: 91 g (3.2 oz)
Effort holder: 28 g (1 oz)
Housing material Aluminum alloy, polycarbonate
Mounting material Wall mount: aluminum alloy
Wedge: Polycarbonate
Surface mount: polycarbonate
Glockenspiel holder: polycarbonate, zinc alloy
Weather resistance IPX4 (UVC-G4 Doorbell Pro)
Color Black-
White
optics
sensor Main camera: 5MP CMOS
Package camera: 8MP CMOS
lens Fixed focal length
perspective Main camera: H: 138°, V: 114°, D: 155° (LDC On)
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode Integrated IR LED illumination and IR cut filter
video
resolution Main camera: 2MP 1600 x 1200 (4:3)
Package camera: 2MP 1600 x 1200 (4:3)
Maximum frame rate 30 FPS
system
processor Quad-core chip based on Arm® Cortex®-A53
Network interface UVC-G4 Doorbell Pro: GbE RJ45 connection
UP-Chime PoE: 10/100 MbE connection
Performance method PoE
Supported voltage range UVC-G4 Doorbell Pro: 37-57V DC
UP-Chime PoE: 44–57 V DC
Max. power consumption UVC-G4 Doorbell Pro: 7 W
UP Chime PoE: 3.5 W
LED Link/Activity
Keys (1) Ringtone button
(1) Factory reset
Ambient temperature during operation UVC-G4 Doorbell Pro: -30 to 40º C (-22 to 104º F)
UP-Chime PoE: 0 to 40° C (32 to 104° F)
Humidity during operation UVC-G4 Doorbell Pro: 0 to 90% non-condensing
UP-Chime PoE: 10 to 90% non-condensing
Certifications CE, FCC, IC
Audio
microphone Yes (can be deactivated for the doorbell)
Speaker Yes
Summer Yes (UP-Chime PoE)
software
UniFi OS application UniFi Protect
App UniFi Protect iOS™ and Android™

Details about Ubiquiti Unifi Protect G4 Doorbell Professional PoE Kit / Doorbell / Wifi / 8MP Camera / 2-Way Audio / UVC-G4 Doorbell Pro PoE

Category UniFi Access Brand Ubiquiti Reference 221644 Delivery Time Ordered and on the way. For more information, please contact us. Condition New
