Balun für HDTVI / HDCVI / AHD /CVBS - 4 passive Kanäle - Enthält 4 BA612P-HAC - BNC Verbindung und RJ45 - Umfang: 180 ~ 440 m
Balun für HDTVI / HDCVI / AHD /CVBS - 4 passive Kanäle - Enthält 4 BA612P-HAC - BNC Verbindung und RJ45 - Umfang: 180 ~ 440 m

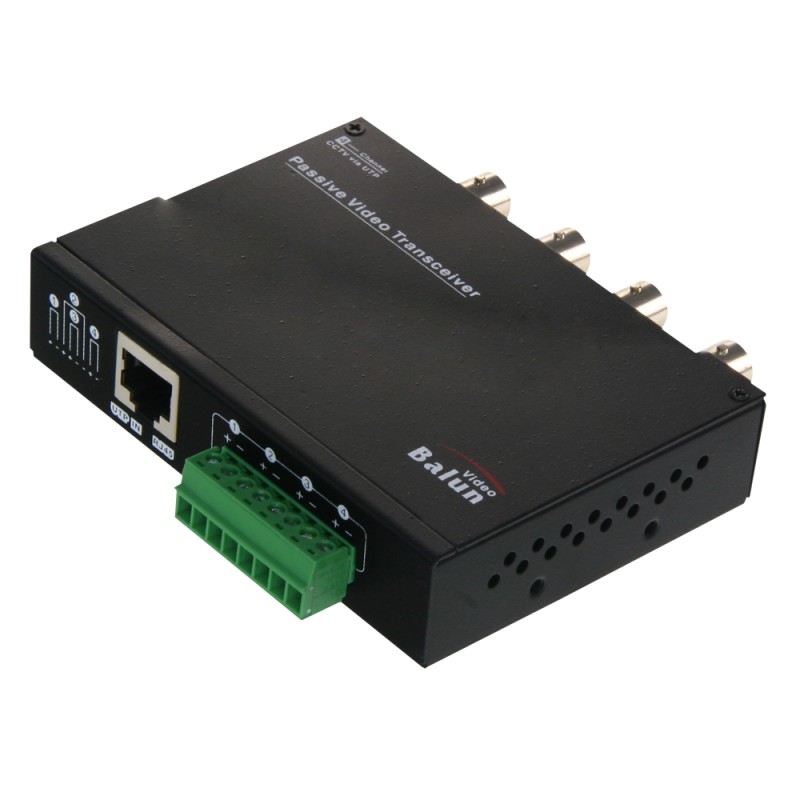

Passive video transceiver by twisted pair of 4 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can work as a transmitter or receiver and allows the transmission of the signal from up to four video cameras over a single UTP cable.
The adapter has 4 BNC connectors to connect a video recorder. Includes 4 individual BA612P-HAC baluns for connecting to cameras.
On the other side it has a connector for a UTP cable, either with RJ45 or with connectors of 4 contacts +/- to connect the cable by wires.
The maximum length between the end connected to the camera and the end connected to the video output is :
- HDTVI 720p - 200m
- HDTVI 1080p - 300m
- HDCVI 720p - 400m
- HDCVI 1080p - 200m
- AHD 720p - 300m
- AHD 1080p - 300m
- AHD 4 Mpx - 300 m
- HDTVI 4 Mpx 100 m
- HDCVI 4 Mpx 200 m
- HDTVI 4K 100m
- HDCVI 4K 200m
Possibility of 19" rack mounting.
