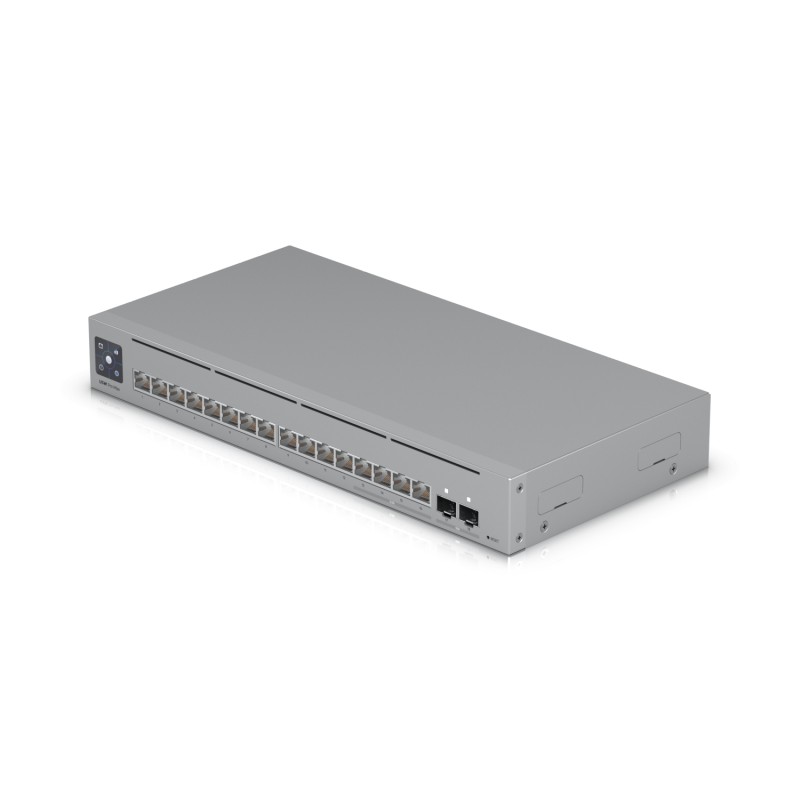

Ubiquiti Switch fully managed Layer3 18 Port &bull 4x 2.5 GbE &bull 12x GbE &bull 2x SFP+ &bull Desktop &bull Fanless &bull Uni
Ubiquiti Switch fully managed Layer3 18 Port &bull 4x 2.5 GbE &bull 12x GbE &bull 2x SFP+ &bull Desktop &bull Fanless &bull Uni

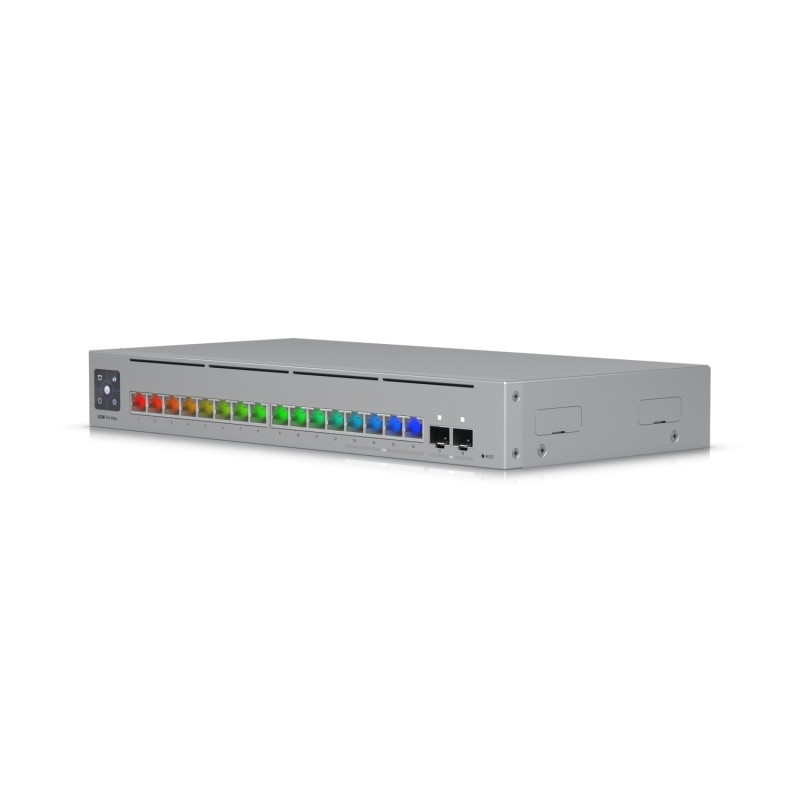

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(4) 2.5 GbE RJ45 ports
(12) GbE RJ45 ports
(2) 10G SFP+ ports
Versatile table, wall and rack mounting**
Quiet, fanless cooling system
*Combine with UniFi Etherlighting patch cables for optimal brightness.
**Requires additional rack mounting accessories.
Technical specifications
| Mechanically | |
|---|---|
| Mass | 325.1 x 160 x 43.7mm (12.8 x 6.3 x 1.7") |
| Weight | 1.95 kg (4.3 lbs) |
| Housing material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Network interface | (12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| Total non-blocking throughput | 42 Gbit/s |
| Switching capacity | 84 Gbit/s |
| forwarding rate | 62,496 Mpps |
| Power method | Type-C adapter |
| Power supply | 5V, 25W |
| Max. energy consumption | 25W |
| LCM display | (1) 1.3-inch touchscreen |
| button | Factory settings reset |
| Ambient temperature during operation | -5 to 40 °C (23 to 104 °F) |
| Ambient humidity during operation | 10 to 90% non-condensing |
| Certifications | CE, FCC, IC |
| Switching functions | |
| Layer 2 functions | IGMP snooping STP/RSTP with priorities and port-level deactivation Port isolation Storm Control Voice VLAN -Port mirroring LACP port aggregation Multicast/broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping/guarding Egress rate limit LLDP-MED- Port by MAC- Device isolation restricted with ACLs |
| Layer 3 functions | DHCP for locally managed networks DHCP relay Inter-VLAN routing between networks on the same switch Static routing between local networks Network isolation with ACLs |
| Etherlighting™ | |
| Ethernet | Localization the speed/connection of the native VLAN/network |
| SFP+ | Localization the speed/connection of the native VLAN/network |
| Application requirements | |
| UniFi network | Version 8.1.127 and higher |
