JABLOTRON 100 - wireless siren (BASE BOARD) for outdoor use

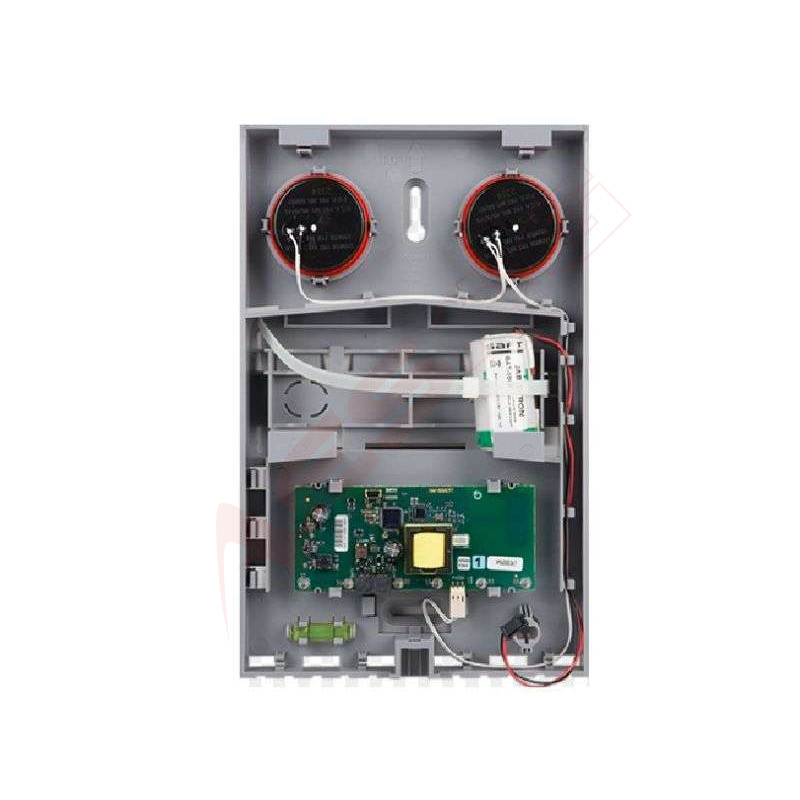

This base plate of the outdoor siren including electronics serves as the basis for the outdoor siren which is then supplemented and completed with the corresponding and desired optional cover (front cover).
JABLOTRON 100 - wireless siren (BASE BOARD) for outdoor use
This base plate including electronics serves as the basis for the outdoor siren - which is then supplemented and completed with the appropriate and desired optional cover.
It is designed for acoustic indication of alarms and activation/deactivation of the PG outputs of the System 100. The siren communicates with the control panel and is supplied with 12V power. An emergency battery has been implemented in case of power failure. The product also has a built-in spirit level for precise and easy installation during installation.
Product Highlights:
- Radio version - no BUS cable required
- Wide variety of covers available in various optics
Technical data
| Electricity | 12V DC AC/12DC 230V adapter included |
|---|---|
| Communication band | 868.1 MHz, JABLOTRON protocol |
| Communication area | approx. 300 m (open field) |
| Backup/ Battery Duration | NiCd 4.8V / 1800mAh approx. 3 years |
| - minimum voltage under load | 4.0V |
| - maximum voltage without load | 6.0V reusable battery fastening strap |
| Siren, piezoelectric | 110 dB /1m (with a fully charged battery) |
| Dimensions | 200x300x70mm |
| classification | grade2 |
| after | EN50131-1, EN50131-4 |
| Environmental class IV. | Outdoor use, -25 to +60 ° C |
| Protection | IP34D |
| Fulfills | EN 300220, EN 50130-4, EN 55022, EN 60950-1 |
