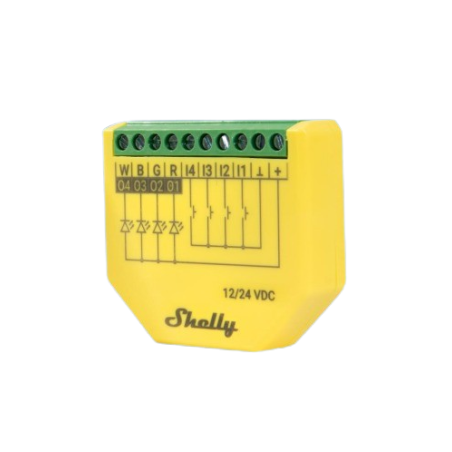

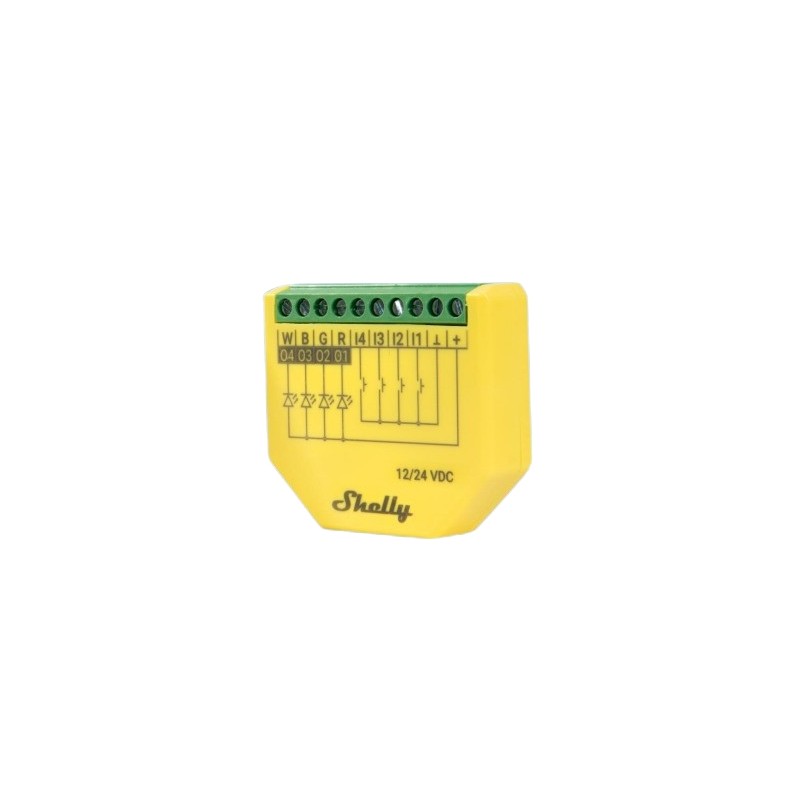

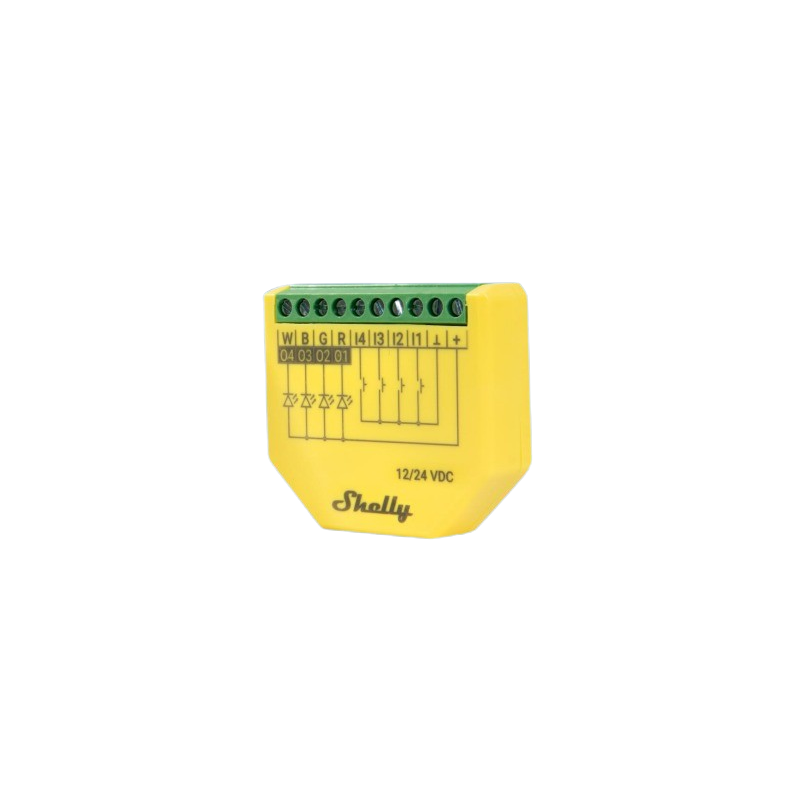

Shelly · Flush-mounted · "Plus RGBW PM" · LED light controller · WLAN · BT

Wi-Fi powered RGBW controller for LED strips

Supports RGBW, RGB, and light profiles

A compact and versatile RGBW controller for effortless control of any LED strip. With support for RGBW, RGB, and Light profiles, it offers unparalleled flexibility for creating the perfect ambiance for any occasion.
Its power metering feature provides real-time insights into energy consumption.

- Supports all 12V or 24VDC white (or color), RGB, RGBW LED strips
- 3 lighting profiles for easy customization
- Adjustable transition duration and fade speed as well as min/max brightness
- Independent control for RGB and white:Color and white brightness can now be controlled independently, with dimming up/down.
- Night mode
- Overcurrent protection
-
- Extremely fast processor for instant response - ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
- No hub required!

Easy control via the Shelly Smart Control app, most platforms and protocols, as well as voice assistants.
Use it with Alexa, Home Assistant or your preferred automation platform.

Individual lighting with extended profiles

The Shelly Plus RGBW PM goes beyond traditional lighting solutions by offering three different profiles for every occasion:

RGBW PROFILE:
The best of both worlds. With the RGBW profile, you can seamlessly transition between atmospheric and practical white lighting, or even a mix of both for a customized ambiance.

RGB PROFILE:
Designed specifically for those who like to create a show. The RGB profile provides unified control over your RGB LED strips. You can adjust the color and brightness of the entire strip.

LIGHT PROFILE:

With the light profile you can adjust the brightness of up to four different LED strips to your desired ambience.

Under-cabinet lighting:

Under-cabinet lighting makes a huge difference when you're the chef in the kitchen. With the ability to cycle through a range of colors and adjust the brightness, you can quickly adapt the ambiance of the room to your cooking mood and style.
And the practical voice control allows for easy adjustment so that the lighting is always perfect, even when you have your hands full.

Adjust the lighting to your mood:

Shelly Plus RGBW PM is designed to adapt your lighting to your mood and the flow of your activities. From the concentrated intensity needed for a home office to playful and dynamic lights for a family game night. Save and name your favorite lighting patterns so you can share them with your assistant with a simple click or voice command.

"Night mode" for gentle night light

In night mode, the brightness is automatically reduced and the light is softer, providing pleasant lighting in the evening, which is just what you need.
Set your preferred times and watch your room transition into soft lighting, perfect for winding down after a busy day. This feature also dims the lighting during the night.
This ensures that your nighttime trip to the bathroom no longer irritates your sleepy eyes. When the light is switched on manually, by voice, or via a motion sensor, it is always dim and gentle.

KEY FEATURES:

Wi-Fi and Bluetooth connectivity:
Connect Shelly Plus RGBW PM to your Wi-Fi network. No hub required! Quick integration via Bluetooth.

Performance measurement:
Keep track of your energy consumption with precise monitoring features that ensure efficient energy use without compromising quality.

Color effects:
Set the mood by dimming and choose between 16 million colors and unique effects.

Flexible input control:
Use it with your existing switches, whether they are single, double or 4-button switches.

Smart schedules and scenes:
Set individual schedules and scenes. Combine Shelly Plus RGBW PM with your other Shelly devices.

Scripting:
Full scenario support, giving you local control and custom functionality.

TECHNICAL DATA:

Generally:

Size (HxWxD): 42x37x12 mm / 1.65x1.46x0.47 inches
Weight: 16 g / 0.56 oz
Maximum torque of screw terminals: 0.2 Nm / 1.8 lbin
Conductor cross-section: 0.1 to 1 mm² / 30 to 16 AWG (solid, stranded and wire end ferrules)
Stripped length of conductor: 6 mm / 0.24 inches
Installation: flush-mounted
Housing material: plastic
Case color: yellow
Connector color: Green

Ambient working temperature : -20°C to 40°C / -5°F to 105°F

Humidity : 30% to 70% RH

Power supply : 12/24 VDC
Power consumption : < 1.2 W Nominal values of the output circuits Max. control voltage: 24 VDC Max. control current: 4 A per channel (10 A total)
Range: Up to 30 m / 98 ft indoors and 50 m / 164 ft outdoors (depending on local conditions) Bluetooth
Protocol: 4.2
RF band: 2400 - 2483.5 MHz Max. RF power: < 4 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 98 ft outdoors (Depending on local conditions) Microcontroller unit
CPU : ESP32

Clock frequency : 160 MHz
RAM : 400 KB
Flash : 4 MB

Schedules: 20 Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT : Yes
