Shelly · Unterputz · "Wave 1 Mini" · Relais · max. A · 1 Kanal · Z-Wave
Shelly · Unterputz · "Wave 1 Mini" · Relais · max. A · 1 Kanal · Z-Wave
Smart Z-Wave® switch, 1 channel 8 A with dry contacts
The world's smallest smart Z-Wave switch for intelligent control. Automate and remotely control a variety of small electrical devices such as locks, garage doors, irrigation systems and lights. Due to its compact design, Wave 1 Mini is perfect for even the smallest sockets and/or devices.
- Supports up to 8 A at 240 V AC and 5 A at 30 V DC
- Dry contacts (potential-free)
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 series
- Automatic setup with SmartStart
- Security 2 Authenticated for highest security level
- Supports over-the-air firmware updates
- Quick and easy installation in most sockets and switches
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required to configure the device.
WHY WAVE 1 MINI?
Mini size, mini price

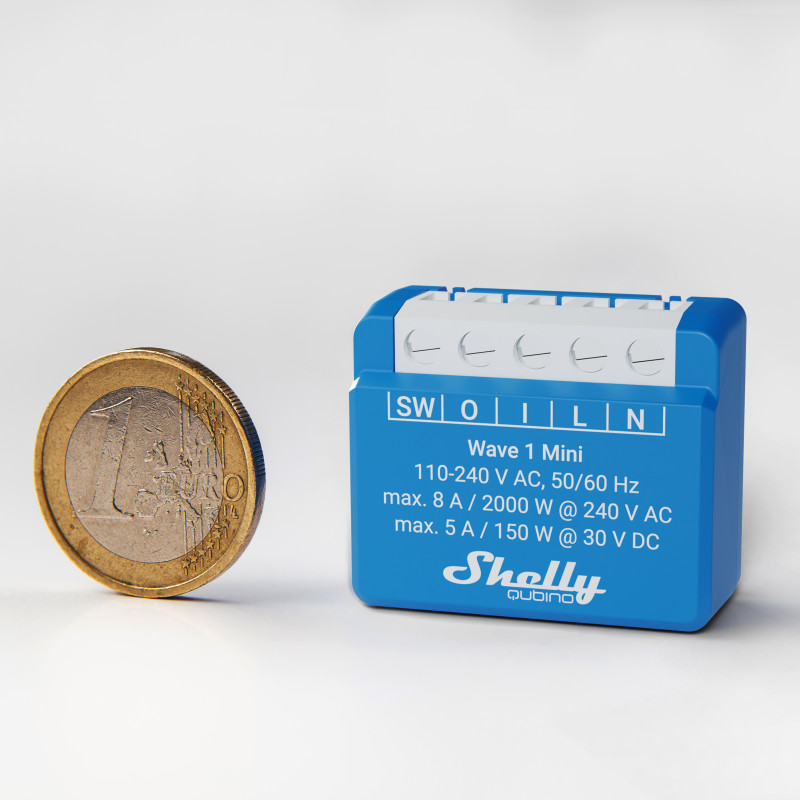

These mini relays are designed with convenience in mind and offer all the capabilities of the Wave 1. The size has been reduced by 35%, making the Wave 1 Mini perfect for tight spaces where traditional relays just won't fit. Despite the small size, the Wave Mini devices don't compromise on performance or functionality.
Shelly Qubino works with Z-Wave
By using Z-Wave, smart home products can communicate seamlessly with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work with the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes worldwide.
*Z-Wave devices have specific requirements to function correctly, such as the need to use a supported Z-Wave hub. For more information, please visit the official Z-wave website: www.z-wave.com
Works with any Z-Wave gateway

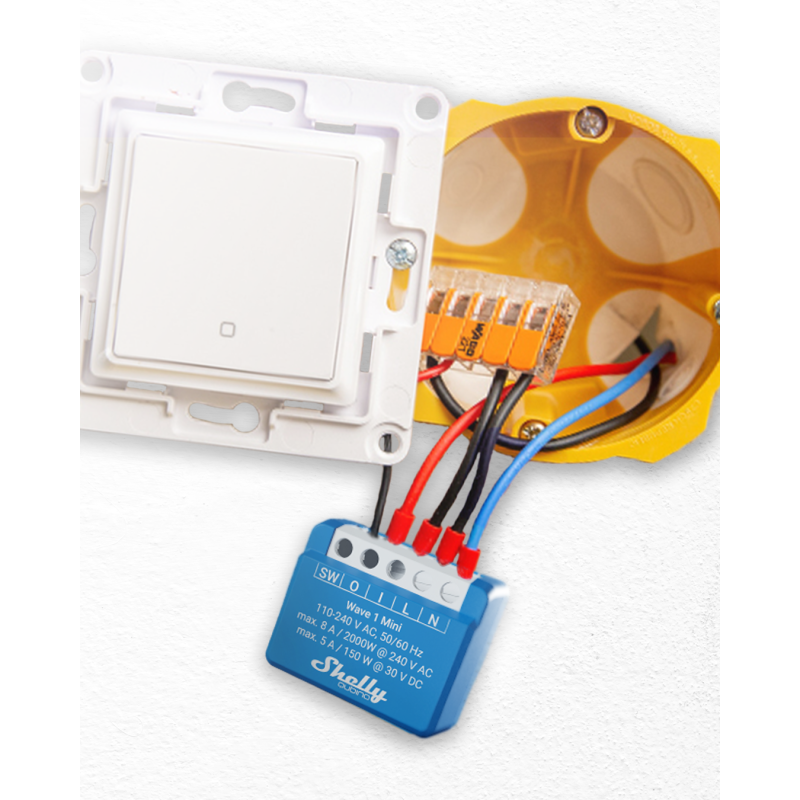

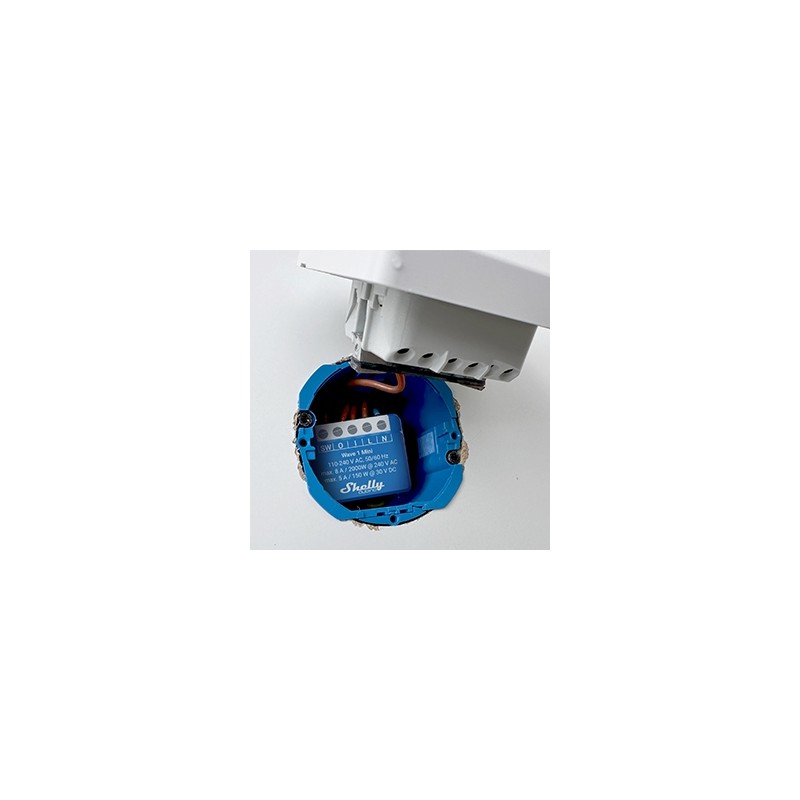

Devices are designed to fit behind any switch or outlet, or can be built directly into the device, instantly turning it into a smart device. Once installed, add it to your Z-Wave network (a Z-Wave gateway is required) and control connected devices from anywhere using your smartphone or tablet.
Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
WAVE 1 MINI FEATURES
Z-Wave controlled
Add the Wave 1 Mini to your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways.
Dry contacts
Connect various power loads (up to 8 A) to the device.
Associations
Set up direct communication between devices in your local Z-Wave network and set custom actions, even without a hub!
Supports a variety of different voltages
Use a wide range of output voltages. Supports low voltages.
Smart schedules
Create personalized schedules that adapt to your daily routine or sync with sunrise/sunset to control your lights (gateway required).
Intelligent scenes
Create custom scenes by combining the Wave 1 Mini with other Z-Wave devices (gateway required).
APPLICATION EXAMPLE
Synchronize your lights with your daily routine

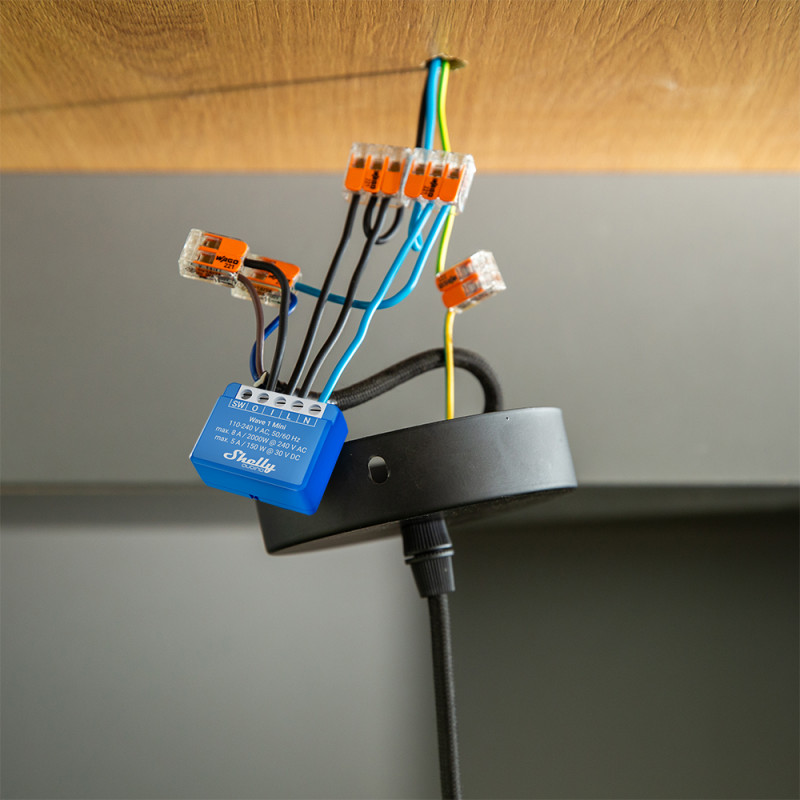

Thanks to its compact size, the Wave 1 Mini can easily be placed behind any light switch or in the ceiling canopy of the lamp. Synchronize your lighting with sunset times so the light adjusts to the changing light conditions, so your home is always comfortably lit and inviting when you are home. Additionally, you can automate the lights to turn off after your family's bedtime to prevent the lights from being on all night and avoid unnecessary energy consumption.
Make every small electrical appliance in your home smart
Turn any electrical device in your home, old or new, into a smart device with the Wave 1 Mini. Its 8A limit is perfect for small to medium-sized devices such as lamps, electric kettles, etc. Place the device in the socket or discreetly inside the device's housing without the need for additional external wiring.
Check your garage door
The compact design of the Wave 1 Mini allows the device to be placed in very small spaces or installed directly in the garage door opener housing or even near the motor. Its 8 A power capacity ensures reliable control of the garage door, allowing you to conveniently control the garage door remotely without the need for bulky external modules.
Automate your irrigation system based on the weather
The Wave 1 Mini's compact form factor allows it to be installed near the irrigation system control panel or inside waterproof enclosures to ensure protection from the elements. Its 8A capacity is perfect for controlling irrigation valves and allowing effortless watering of your garden with a click of your smartphone, even when you're on vacation. For complete peace of mind, all you have to do is set the schedule and the sprinklers will turn on and off automatically. Yes, it can be that easy.
TECHNICAL DATA:
Power supply: | 110-240V AC, 50/60Hz |
---|---|
Power consumption: | < 0.3W |
Max. switching voltage alternating current AC: | 240V |
Max. switching current AC: | 8A |
Max. switching voltage DC: | 30V |
Max. switching current DC: | 5A |
Overheating protection: | Yes |
Distance: | Up to 40 m indoors (131 ft.) (depending on local conditions) |
Z-Wave® Repeaters: | Yes |
CPUs: | Z-Wave® S800 |
Z-Wave® frequency bands: | 868.4MHz |
Maximum transmitted radio frequency power in frequency band(s): | < 25mW |
Size (H × W × D): | 29 x 35 x 16 ±0.5 mm / 1.11 x 1.35 x 0.63 ± 0.02 in |
Weight: | 19 ±1 g / 0.65 ±0.04 oz |
Assembly: | Wall bracket |
Screw terminals max. torque: | 0.4 Nm / 3.54 lbin |
Cross section of the conductor: | 0.5 to 1.5 mm²/ 20 to 16 AWG |
Length of stripped conductor: | 5 to 6 mm/0.20 to 0.24 in |
Housing material: | plastic |
Color: | Blue |
Ambient temperature: | -20 °C to 40 °C/-5 °F to 105 °F |
Humidity: | 30% to 70% RH |
Max. height: | 2000 m / 6562 ft. |
