Wi-Fi controlled smart switch, 1 channel 16 A
The world's smallest power meter for precise power monitoring. Automate your lighting or electrical appliances in less than 10 minutes and monitor their power consumption from anywhere. The Shelly Plus PM Mini is so small that it fits behind any wall switch or socket. It is retrofittable and highly compatible with your existing smart ecosystem.
- No hub required! Easy control via Shelly Smart Control app, most platforms and protocols, and voice assistants. Use it with Alexa, Home Assistant, or your favorite automation platform
- Supports up to 16A at 240VAC
- Precise and real-time power measurement with free cloud data storage to analyze and optimize energy consumption.
- WLAN range extender & Bluetooth gateway
- Extremely fast processor for instant response - ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
*This is a power meter only. There is no relay built in.
Mini size, mini price
Designed with convenience in mind, these mini relays offer all the features of the Plus series in a compact and space-saving form factor. Compared to Shelly Plus devices, the size has been reduced by 35%, making the Shelly Plus Mini perfect for tight spaces where traditional relays simply won't fit. Despite their small size, the Shelly Plus Mini devices don't compromise on performance and functionality.

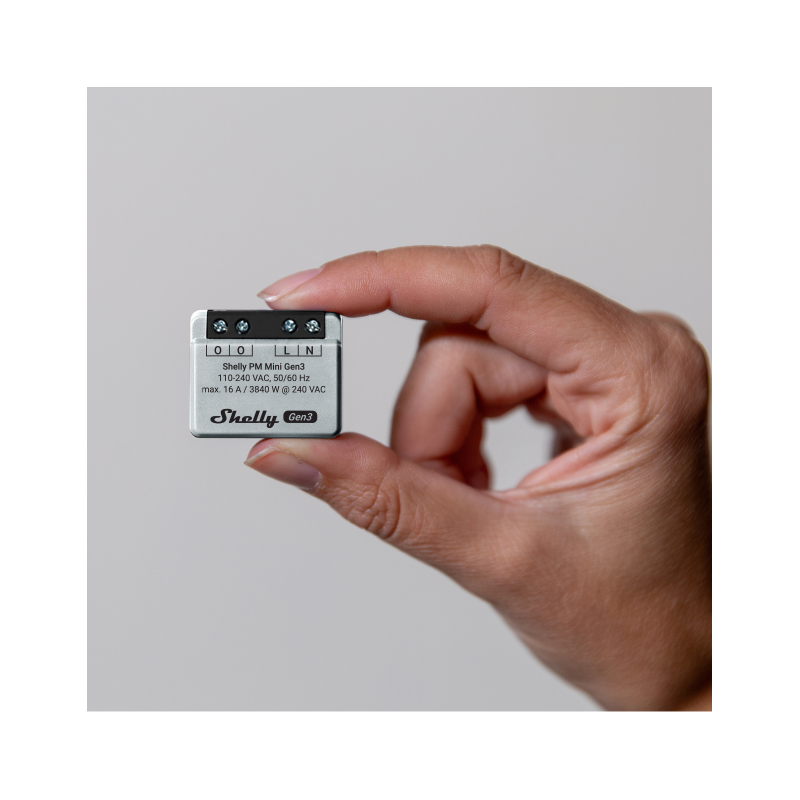

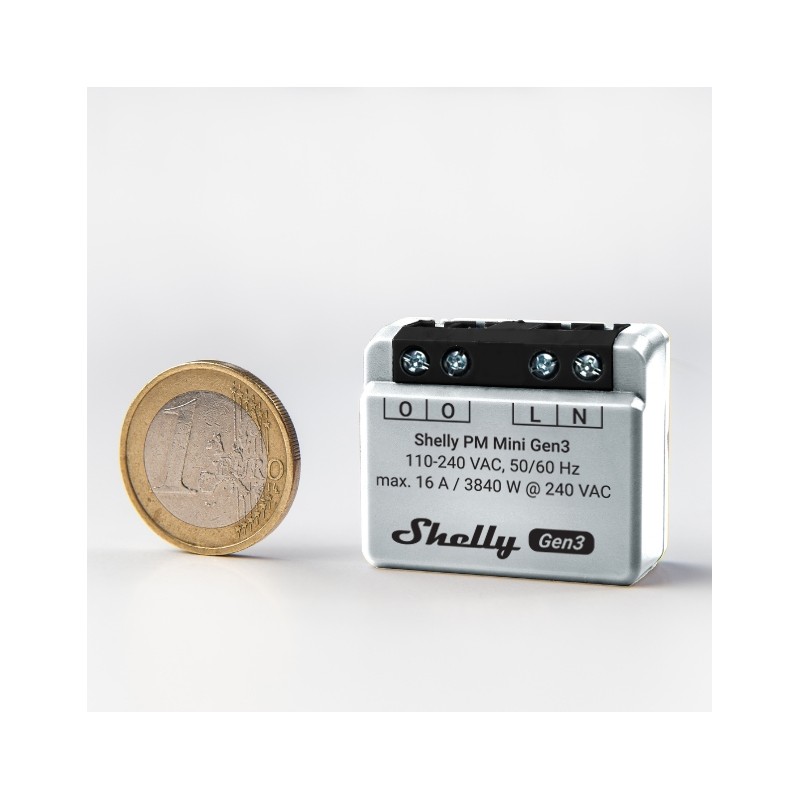

The size is what matters

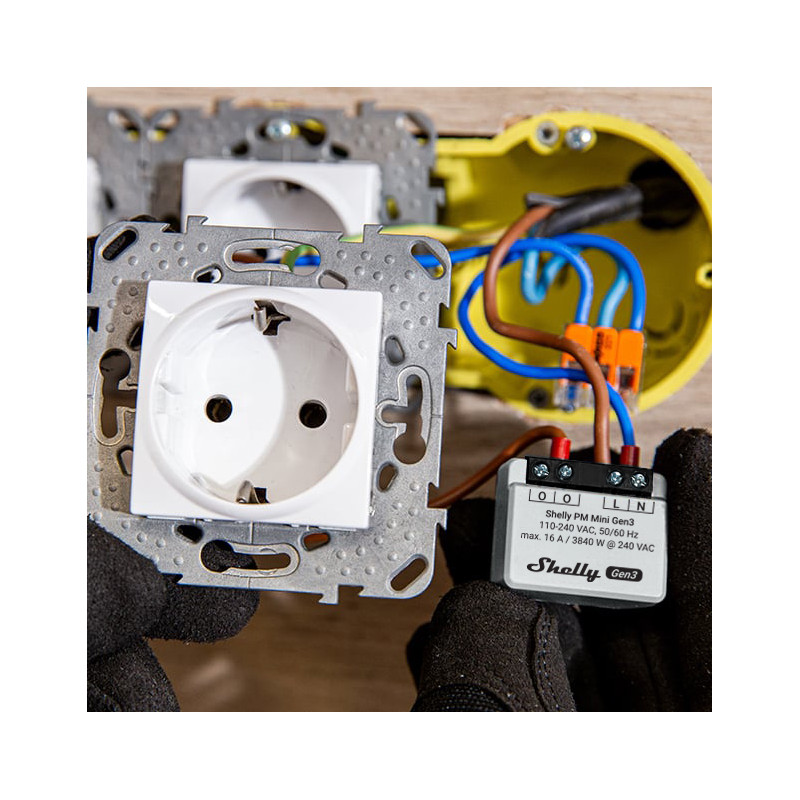

Shelly Plus Mini devices open up a world of possibilities as they can be seamlessly integrated into even the tightest spaces and control boxes. Thanks to their small size, Shelly Plus Mini relays fit effortlessly into all types of electrical boxes, including Danish sockets. In addition, they can be discreetly built right into the device you want to control or monitor.
Functionalities
WiFi powered
Connect Shelly Plus PM Mini to your Wi-Fi network. No HUB required!
Bluetooth
Add devices quickly and easily via Bluetooth or use it as a Bluetooth gateway.
Power consumption measurement
Allows you to accurately monitor your electricity consumption and help you save.
Smart schedules
Set custom schedules based on your daily agenda or follow sunrise/sunset and control your lighting accordingly.
Intelligent scenes
Set custom scenes by combining Shelly Plus PM Mini with your other Shelly devices.
Scripting
Shelly Plus PM Mini supports mjS scripts, which allow you to create your own functions.
Application example
Preventive monitoring
When an electrical appliance is damaged, it doesn't just stop working. It usually increases energy consumption to compensate for its operating capacity. Since there is no visible difference in performance, it can take months before you notice a problem, resulting in inefficiency and wasted energy. Shelly Plus PM Mini fits wherever you need it and can immediately report the increase in energy consumption, saving you extra costs for repairs or replacing appliances.
Power consumption analysis for cost optimization
All the electrical devices plugged in that we don't use at night or the lights we forget to leave on generate unnecessary energy. The Shelly Plus PM Mini's smart energy metering helps you identify and eliminate the unnecessary energy consumption of each connected device in your home or facility. Together with smart scenes, you can use the Shelly Plus PM Mini's data to create scenarios, such as turning off devices during a power surge to protect them or during the night to save energy.
Shelly Smart Control
Shelly Smart Control is here! An app to control your rooms, your energy consumption and your expenses. Customize your dashboards, get detailed consumption reports and keep track of your electricity bills.
Technical data
| CHARACTERISTICS | |
|---|---|
| Size (HxWxD): | 29x34x16 ±0.5 mm / 1.11x1.34x0.63 ±0.02 in |
| Weight: | 13 ±1 g |
| Assembly : | Wall mounting |
| Screw terminals max. torque: | 0.4 Nm / 3.5 lbin |
| Cross section of the conductor: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Length of stripped conductor: | 5 to 6 mm / 0.20 to 0.24 in |
| Housing material: | plastic |
| Color: | White |
| VICINITY | |
| Ambient temperature: | -20 °C to 40 °C |
| humidity | 30% to 70% RH |
| Max. height | 2000m |
| CONNECTION | |
| Power supply: | 110 - 240VAC |
| External protection: | 16 A, tripping characteristic B or C, |
| 6 kA interrupting capacity, | |
| Energy limitation class 3 | |
| Device’s own consumption: | <1.2W |
| RATINGS OF OUTPUT CIRCUITS | |
| Max measuring voltage: | 240VAC |
| Max measuring current: | 16A |
| Max measuring power: | 3840W |
| Performance measurement: | Yes |
| Voltage protection / shutdown: | No |
| Power protection / shutdown: | No |
| Maximum power protection / shutdown: | No |
| Sensors, measuring devices | |
| Internal temperature sensor: | Yes |
| CONNECTIVITY | |
| RFband: | 2400 - 2495MHz |
| Max. RF power: | <20dBm |
| WLAN protocol: | 802.11 b/g/n |
| WLAN range: | Up to 30 m indoors and 50 m outdoors |
| (Depending on local conditions) | |
| Bluetooth protocol: | 4.2 |
| Bluetooth range: | Up to 10 min indoors and 30 m outdoors |
| (Depending on local conditions) | |
