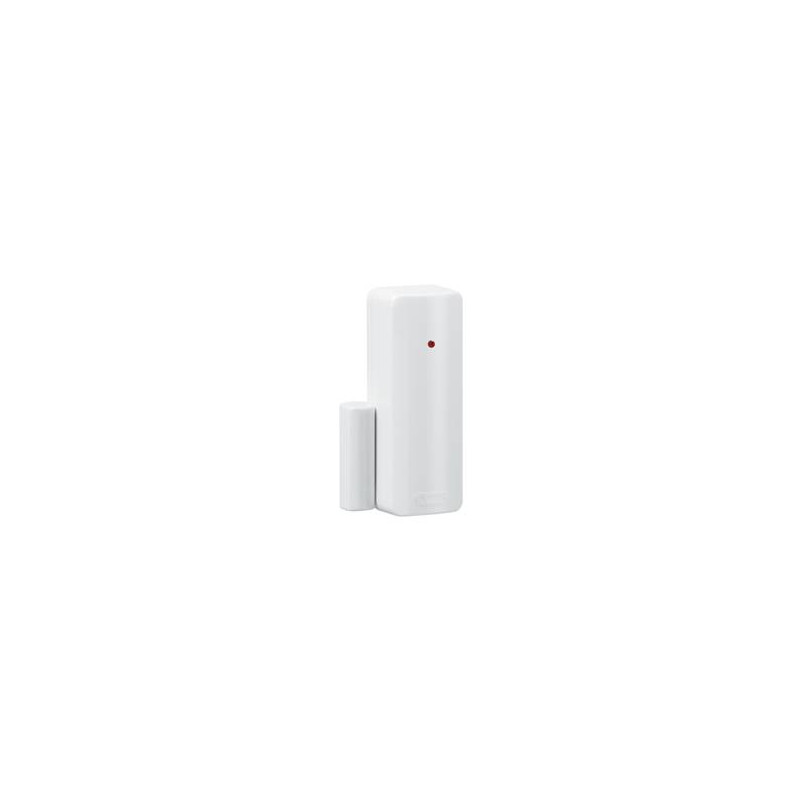

ABUS Secvest - wireless opening detector (FSL) white

The wireless opening detector (FUMK50010W) is a component of the Secvest series (or the Terxon with a wireless extension module). It is a magnetic contact that secures doors and windows. Unauthorized opening is detected and reported to the wireless alarm control panel.

The optimal installation location for the wireless opening detector is the middle of your door or window frame. It can also be installed on the lower window frame if a specific window is to be tilted when the magnetic contact is secured. The wireless opening detector consists of a detector and a magnet. These are installed parallel to each other at a distance of between 3 and 10 mm. The detector is triggered as soon as this distance increases.

The wireless opening detector for the ABUS Secvest is available in elegant white (FUMK50000W / FUMK50010W) and brown (FUMK50000B / FUMK50010B).

When wired connection of additional zones, you can choose between NC wiring (FUMK50000B / FUMK50000W) and DEOL wiring (FUMK50010B / FUMK50010W).

For the latter, the following are included in the scope of delivery: a line resistor (2k2) and an alarm resistor (4k7). You can connect the additional detection zone to a passive glass break detector, for example. This way you not only protect the window against unauthorized opening, but also against glass breakage.

Further settings, such as deactivating the LED or using the detector as a pure radio module, are possible via jumpers.

Product Highlights:

• No parallel import - original via CH distribution! Support and guarantee by ABUS Switzerland.
• Successor model for: Secvest 2way wireless opening detector FU8321W
• Compatible with: new Secvest FUAA50000, FUAA50100, FUAA50500, FUAA50600, Secvest 2way FU8000, Secvest IP FUAA10011
• High-quality magnetic contact
• Reliably detects the opening of windows and doors
• Connection option for additional wired detectors
• Can be used as a radio module
• Sabotage monitoring

Technical data:

• Article number: FUMK50010W
• EAN No.: 4043158057683
• Packaging dimensions LxWxH: 115x70x35 mm
• Connections: screw terminal (FSL)
• Battery type: 3V CR2 Li/MnO2
• Width: 33mm
• Detection method: magnetic field measurement
• Radio frequency: 868.6625 MHz
• Radio power: 10
• Housing material: ABS
• Height: 89mm
• Power consumption: 0.09
• Length: 29mm
• Max. battery life: 2 year(s)
• Max. operating temperature: 55 °C
• Max. transmission range (open field): 100 m
• Max. transmission range (building): 30 m
• Min. operating temperature: -10 °C
• Modulation: FM
• Installation location: windows, doors
• Net weight: 0.05 kg
• Tamper monitoring: Yes
• Sensor type: Reed contact
• Security level: 2
• Power supply DC: 3 V
• Voltage monitoring: Yes
• Status display: Yes
• Current consumption: 30 mA
• Environmental class: I
• Certifications: INCERT, VSÖ, F&P. NCP

Scope of delivery:

• 3 x ABUS FUMK50010W Secvest wireless opening detector FSL (white)
• 3 x mounting material
• 18 x spacer plates
• 3 x User manual
• 3 x battery 3 V CR2 Li (FU2990)
