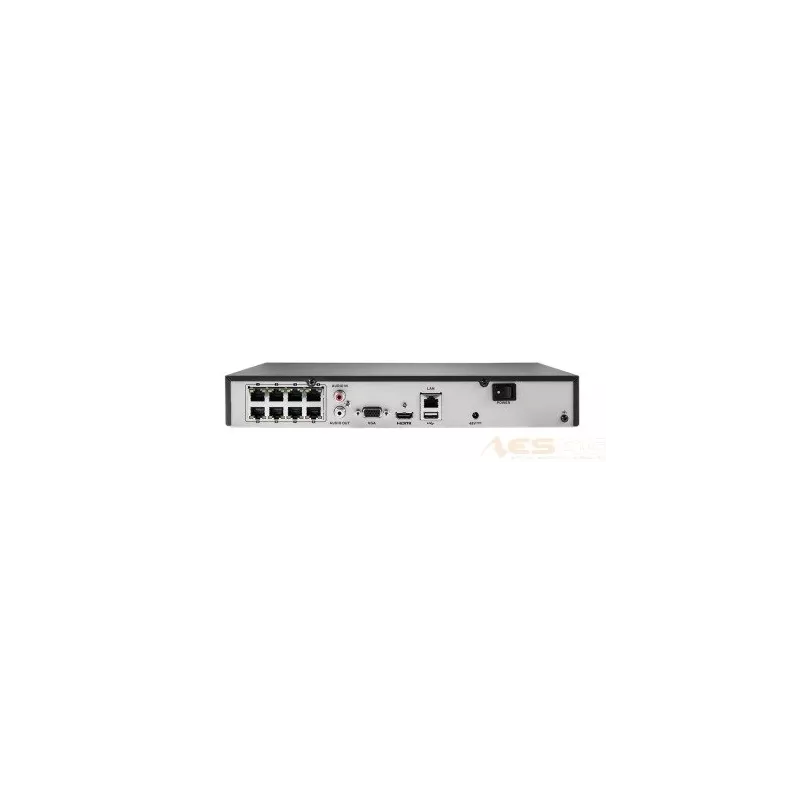

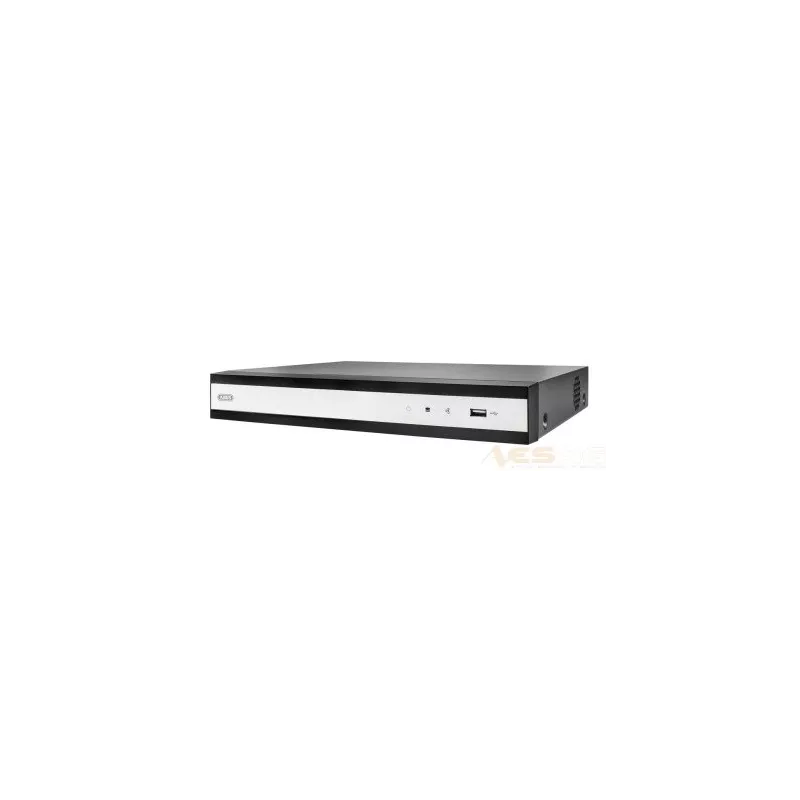

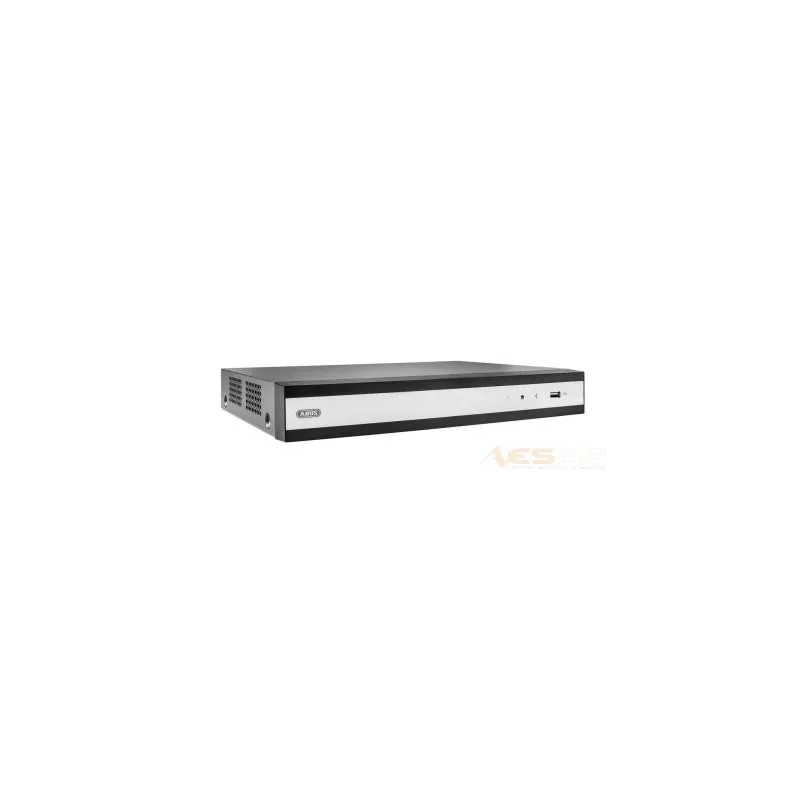

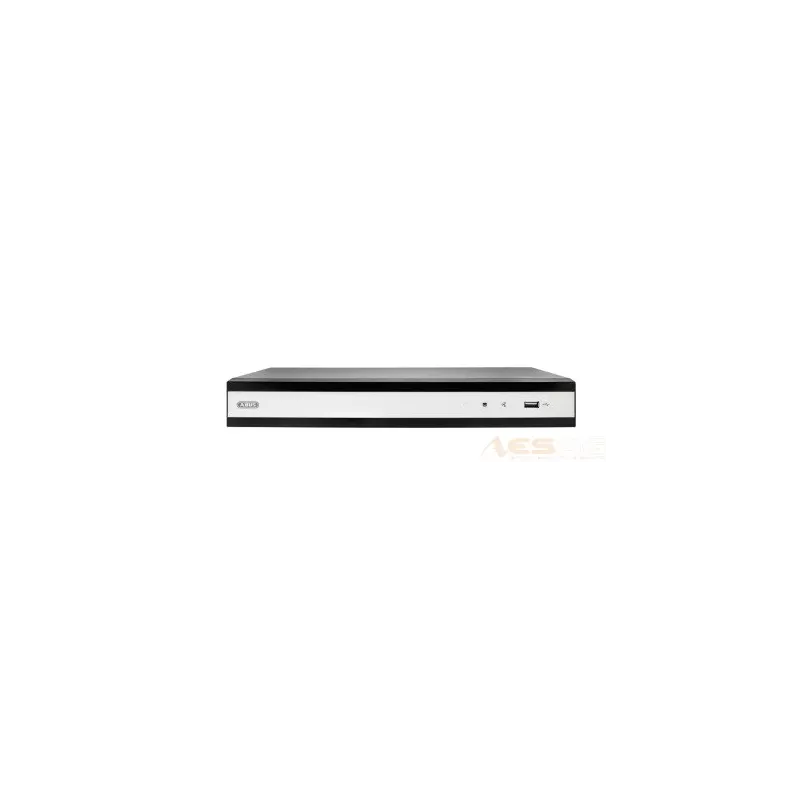

ABUS | 8-channel recorder video surveillance (4K), 8xPoE

8-CHANNEL RECORDER (NVR): EFFICIENT MANAGEMENT & RECORDING OF UP TO 8 IP CAMERAS

The PoE recorder is ideal for easily setting up a small professional surveillance system. With modern recording technology in 4K Ultra HD and access to live images and recordings via a free app, web or CMS software - designed and supported in Germany.
With the 8-channel recorder, up to 8 IP cameras (up to 8 MPx/4K Ultra-HD) can be operated simultaneously.

Individual configuration – intuitive operation
The recorder is ready for use in just a few steps (required accessories: 3.5" SATA hard drive, up to 6 TB) and can be operated via monitor (HDMI, VGA) and mouse. Recording takes place manually, according to a schedule, when motion is detected or continuously. With strong H.265 Plus compression of the video data for 6 times longer recording time than with H.264 devices. Smart modes help with the quick, efficient search and playback of incidents. Access is via local user menu, web interface, CMS software or app - even remotely.

ABUS Link Station App: mobile access & push notifications
App access to live view, playback and push notifications for events. Via end-to-end encryption (E2E), without having to make any settings on the router. Simple and direct without port forwarding, including integration of IPv6 addresses. With the Lite version, up to 60 minutes/month of data stream (live view/playback) is free. The paid Link-Station Pro allows unlimited access to all data.

Product Highlights:

• 8-channel network recorder for live viewing and recording of up to 8 IP cameras
• With 8 PoE (Power over Ethernet) interfaces
• Record 6x longer with H.265 Plus (support depends on camera model)
• Store on up to 6TB 3.5" hard drive (hard drive not included)
• 4K HDMI output for simultaneous native viewing of four Full HD (2MPx) IP cameras
• Recording by motion detection, schedule or continuously
• Recording of up to four 4K (8Mpx) cameras possible
• Web and mobile access to live view and playback via iDVR Plus app and browser
• Integration of third-party cameras via ONVIF is also possible

Technical data:

• Article number: TVVR36800
• EAN No.: 4043158146387
• Packaging dimensions LxWxH: 84x484x290 mm
• Alarm: Acoustic warning signal, OSD signal, email
• Audio output: 1x RCA (Linear, 1KW)
• Audio input: 1x RCA (2.0Vp-p, 1KW)
• Resolution recording @ frame rate per camera: 8MPx / 6MPx / 5 MPx / 4 MPx / 3 MPx / 2MPx / UXGA / 1MPx / VGA / 4CIF / DCIF / 2QIF / CIF / QCIF @ 25/30fps
• Resolution HDMI output: 4K (3840 × 2160) / 30Hz, 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
• Resolution VGA output: 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
• Recording modes: Manual, Schedule, Motion Detection, Alarm, VCA
• Width: 315mm
• Gross weight: 2.8 kg
• Housing: 1U Chassis
• Housing material: metal, plastic
• Height: 48mm
• Power: 90
• Power consumption excl. HDD: 10 W
• Decoding performance (local live view & playback): 4x 2MPx, 1x 4Mpx
• Length: 240mm
• Max. resolution @ frame rate: 8MPx @ 25/30fps
• Max. operating temperature: 55 °C
• Max. humidity: 90%
• Min. operating temperature: -10 °C
• Min. humidity: 10
• Net weight: 2.1 kg
• Total network throughput (input/output): (80 / 80) Mbit/s
• Network protocols: TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• Network connection: 1x RJ-45 10/100/1000 Mbit/s self-adaptive Ethernet connection
• PoE ports: 8x RJ-45 10/100 Mbit/s self-adaptive Ethernet ports
• PoE power: 75 W
• PoE Standard: IEEE 802.3af/at
• Software: ABUS iDVR Plus (iOS & Android App), ABUS CMS, ABUS IP Installer
• Power supply DC: 48 V
• Storage medium: 1x Sata connection (3.5" HDD, max. 6TB) / NAS
• Language OSD: DE, UK, FR, NL, DK, IT, PL, ES, SE
• Synchronous playback: 4
• USB port: 2x USB 2.0
• Supported IP cameras: TVIP1156x, TVIP21560, TVIP41500, TVIP4x560, TVIP41660, TVIP615x0, TVIP6x560, TVIP82900
• Supported browsers: IE11 (Plugin)
• Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection
• Video channels IP: 8
• Video compression: H.265 / H.265 Plus / H.264 / H.264 Plus / MPEG4

Scope of delivery:

• 1x ABUS TVVR36800 8-channel NVR 4K PoE
• 1x power supply, 12V DC / 1.7A
• 1x USB mouse
• 1x 1 m LAN cable
• 2x hard drive connection cable
• 4x screws for hard drive
• 1x CD
