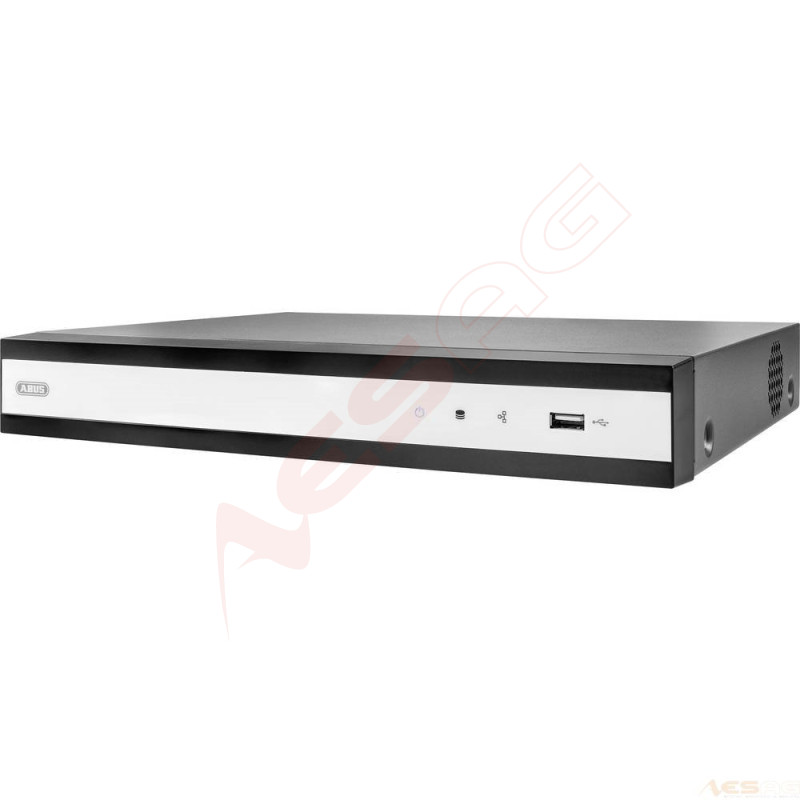

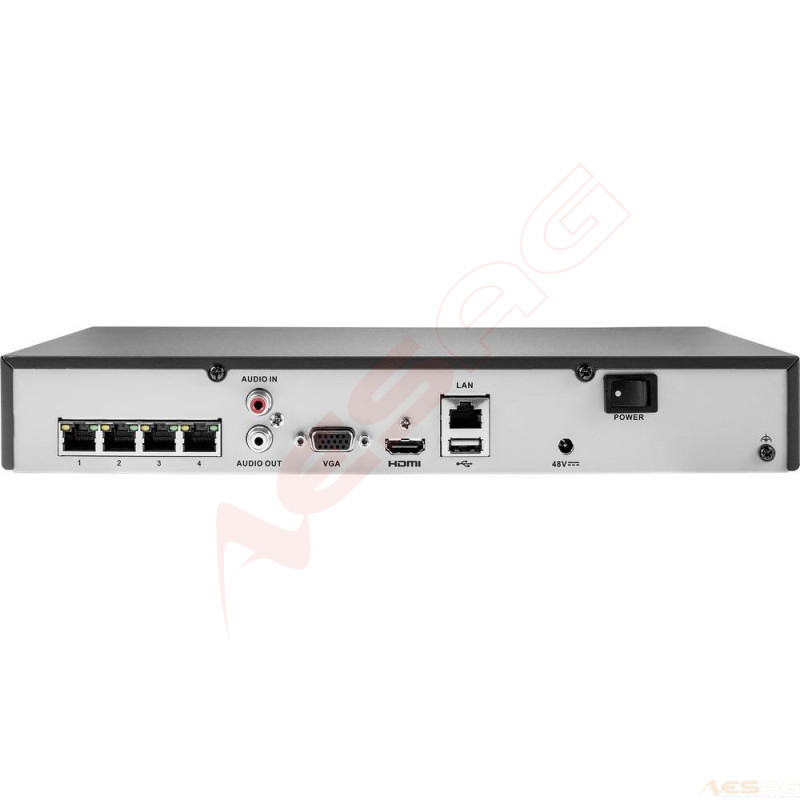

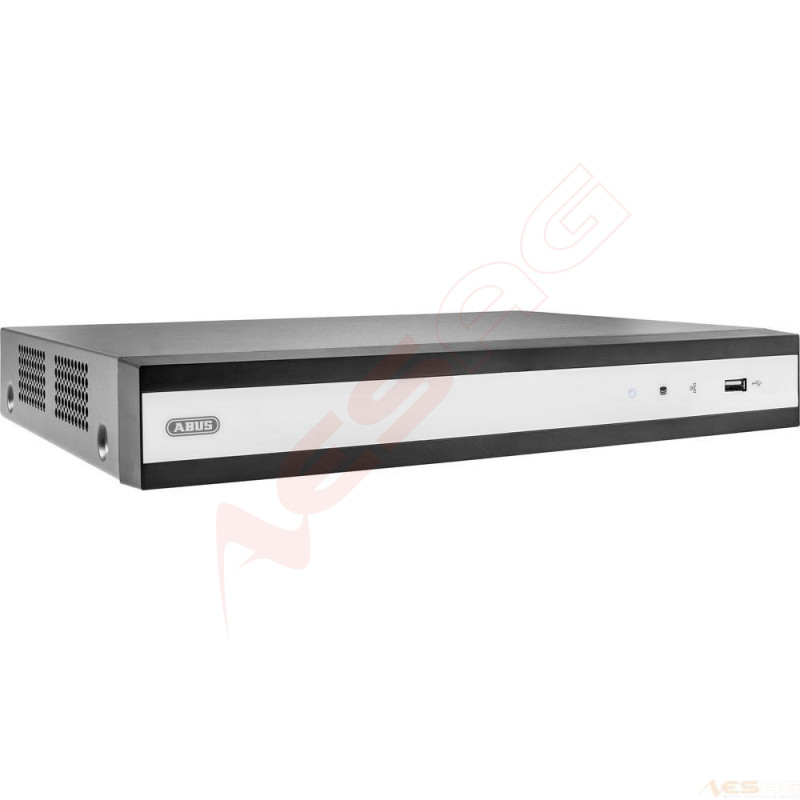

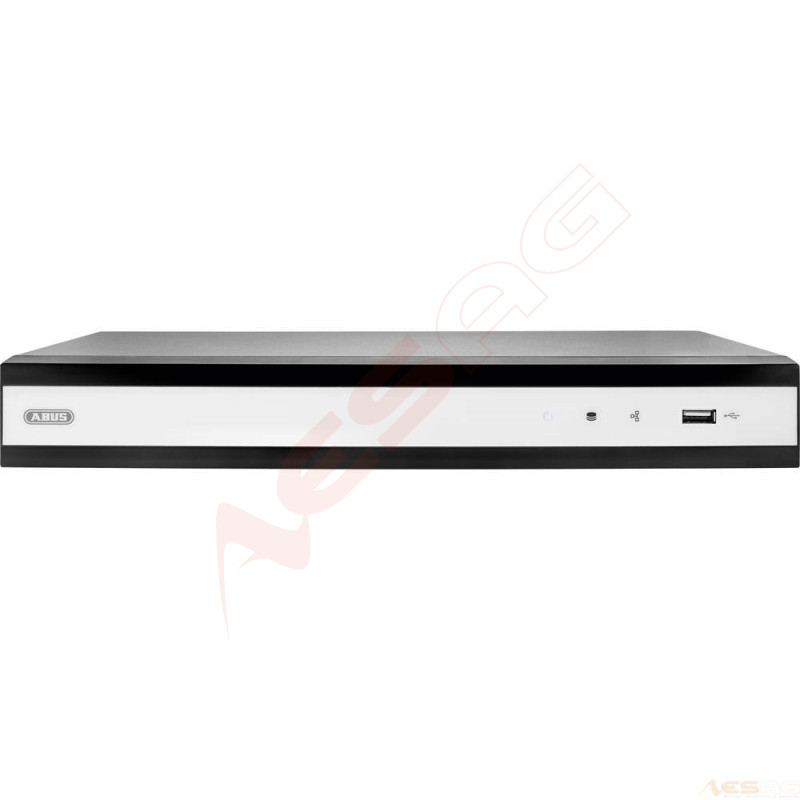

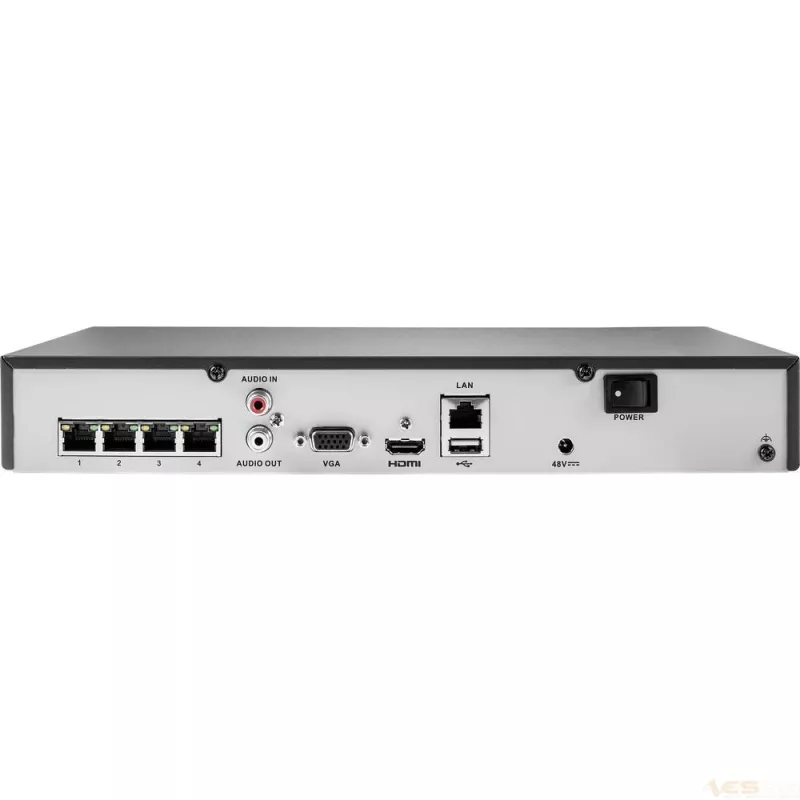

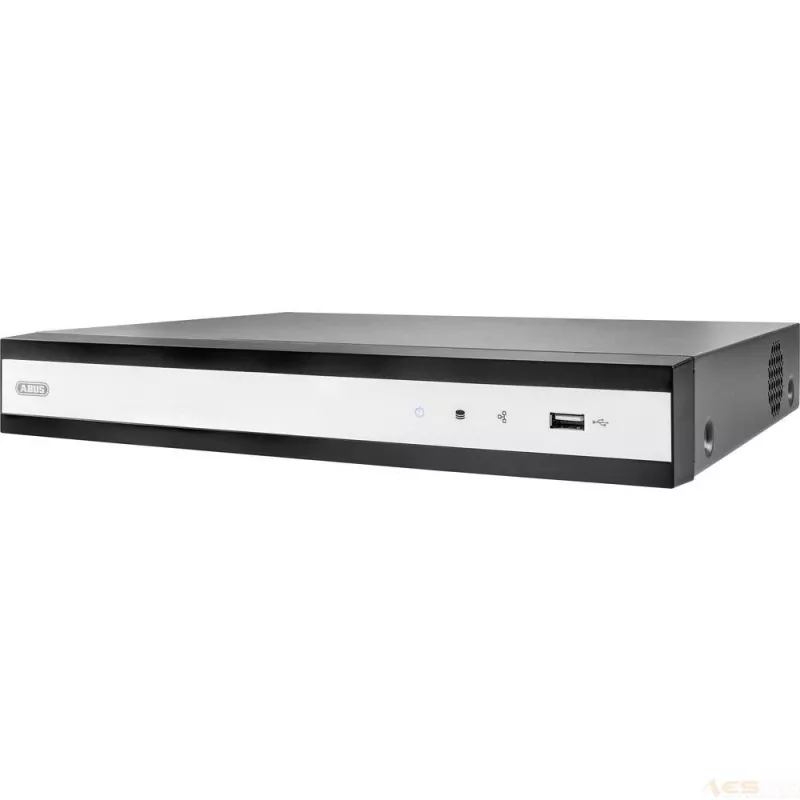

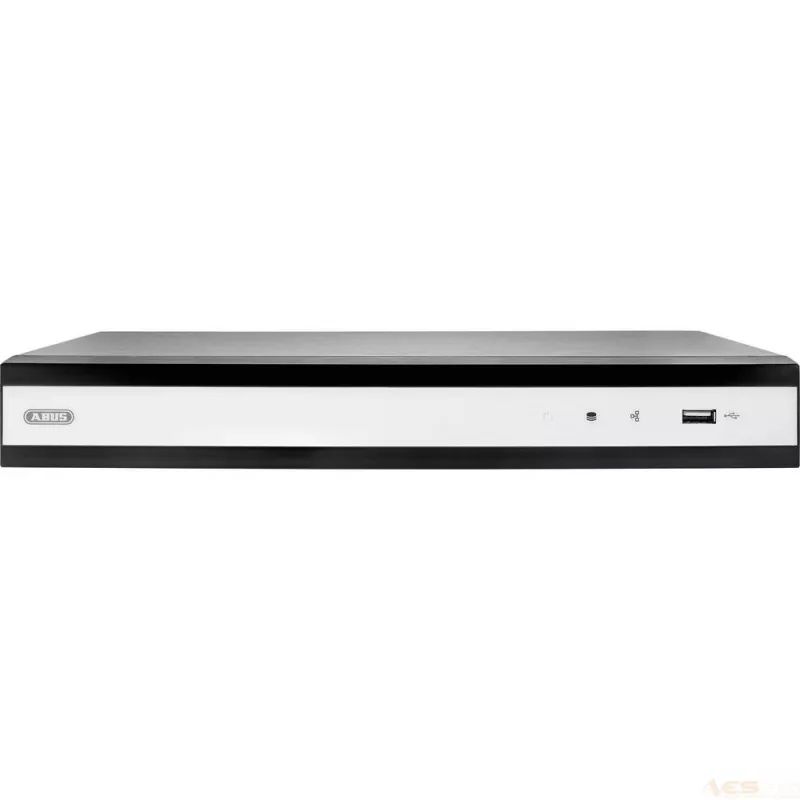

ABUS | 4-channel recorder video surveillance (4K),

Performance for beginners
The recorder for 4 cameras is your efficient entry into the world of surveillance systems.

State-of-the-art recording technology in 4k Ultra HD
The 4-channel network recorder records video streams from up to 4 IP cameras simultaneously - with a resolution of up to 4K Ultra HD per camera. Thanks to compatibility with the H.265 standard, the recorder processes highly compressed image data from cameras that support H.265. These are saved in brilliant quality, take up even less storage space (than with H.264) and are ideal for network access via an integrated broadband interface (1000 Mbit/s). If the recorder is connected to the router, the video streams are transmitted via (W)LAN - without a cable to the camera. Alternatively, PoE-capable cameras can be connected directly to the recorder via a LAN cable and supplied with power - without an extra power cable for each camera.

Individual configuration – intuitive operation
The device is simply connected to the router and monitor and operated with a mouse - done. Recording is done manually, according to a schedule or motion detection. Live viewing, playback and USB data export take place simultaneously (triplex operation). An HDMI or VGA connection is used for playback (4k or 1080p) on a monitor or TV.

Access video data worldwide via app and browser
By setting up the recorder on the ABUS server (www.abus-server.com) you can use a free DDNS service to access live images and recordings via the Internet. Using an app or browser – regardless of changing IP addresses.

ONVIF compatible camera variety:
The recorder works with IP cameras from the ABUS Performance Line and models that meet the ONVIF standard.

Product features:

• 4-channel network recorder for live viewing and recording of up to 4 IP cameras
• Record 6x longer with H.265 Plus (support depends on camera model)
• Store on up to 6TB 3.5" hard drive (hard drive not included)
• 4K HDMI output for simultaneous native viewing of four Full HD (2MPx) IP cameras
• Recording by motion detection, schedule or continuously
• Recording of up to four 4K (8Mpx) cameras possible
• Web and mobile access to live view and playback via iDVR Plus app and browser
• Integration of third-party cameras via ONVIF is also possible
• A 3.5" hard drive (1 TB to 6 TB) is required for operation.

Technical data:

• Article number: TVVR36300
• EAN No.: 4043158143911
• Packaging dimensions LxWxH: 84x484x290 mm
• Alarm: Acoustic warning signal, OSD signal, email
• Audio output: 1x RCA (Linear, 1KW)
• Audio input: 1x RCA (2.0Vp-p, 1KW)
• Resolution recording @ frame rate per camera: 8MPx / 6MPx / 5 MPx / 4 MPx / 3 MPx / 2MPx / UXGA / 1MPx / VGA / 4CIF / DCIF / 2QIF / CIF / QCIF @ 25/30fps
• Resolution HDMI output: 4K (3840 × 2160) / 30Hz, 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz; HDMI/VGA simultaneous output
• Resolution VGA output: 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz; HDMI/VGA simultaneous output
• Recording modes: Manual, Schedule, Motion Detection, Alarm, VCA
• Width: 315mm
• Gross weight: 2.8 kg
• Housing: 1U Chassis
• Housing material: metal, plastic
• Height: 48mm
• Power: 18
• Decoding performance (local live view & playback): 4x 2MPx, 1x 4Mpx
• Length: 240mm
• Max. resolution @ frame rate: 8MPx @ 25/30fps
• Max. operating temperature: 55 °C
• Max. humidity: 90%
• Min. operating temperature: -10 °C
• Min. humidity: 10
• Net weight: 2.1 kg
• Total network throughput (input/output): (40 / 80) Mbit/s
• Network protocols: TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• Network connection: 1x RJ-45 10/100/1000 Mbit/s self-adaptive Ethernet connection
• Software: ABUS iDVR Plus (iOS & Android App), ABUS CMS, ABUS IP Installer
• Power supply DC: 12 V
• Storage medium: 1x Sata connection (3.5" HDD, max. 6TB) / NAS
• Language OSD: DE, UK, FR, NL, DK, IT, PL, ES, SE
• Synchronous playback: 4
• USB port: 2x USB 2.0
• Supported IP cameras: TVIP1156x, TVIP21560, TVIP41500, TVIP4x560, TVIP41660, TVIP615x0, TVIP6x560, TVIP82900
• Supported browsers: IE11 (Plugin)
• Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection
• Video channels IP: 4
• Video compression: H.265 / H.265 Plus / H.264 / H.264 Plus / MPEG4

Scope of delivery:

• 1x ABUS TVVR36300 4-channel NVR 4K
• 1x power supply, 12V DC / 1.7A
• 1x USB mouse
• 1x 1 m LAN cable
• 2x hard drive connection cable
• 4x screws for hard drive
• 1x CD
