Professional power distributor for video cameras, 18 ports 12V, 250W
- Slim power distributor
- 1 AC input 220 V 5OHz
- 18 outputs per copper pair
- Protection by resettable fuse
- Output voltage 12 V / 250 W
- Metal housing
Professional power distributor for video cameras, 18 ports 12V, 250W
Professional power distribution box. It serves as a central power supply for multiple cameras or other security devices, providing individual protection.
Provides a total power of 250W (20A) evenly distributed across 18 DC 12V outputs with connection per port. The source is powered by a wall outlet (AC 96~264V).
It has several protection systems to ensure proper operation of the system:
- 20A tube fuse for general protection at the source input
- Resettable PTC fuse for each individual output up to 1150 mA
- Protection against short circuit
- Protection against overvoltage and current peaks
It includes an EMI filter to avoid electromagnetic interference to other devices or nearby cables. Thanks to the power factor correction (PFC), the electrical costs of reactive power in industrial plants are avoided. Low noise output for clean and stable operation of the connected devices. The output voltage is fixed in DC 12 V.

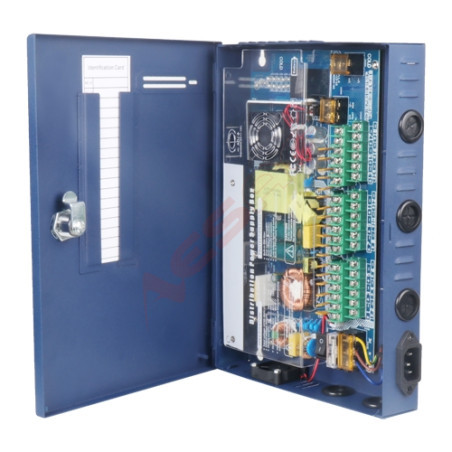

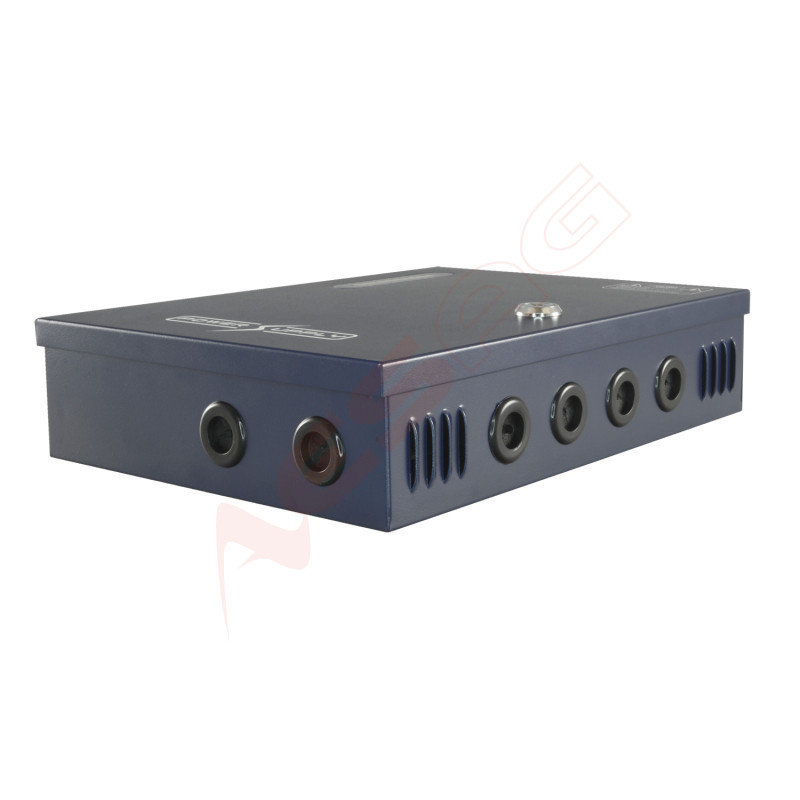

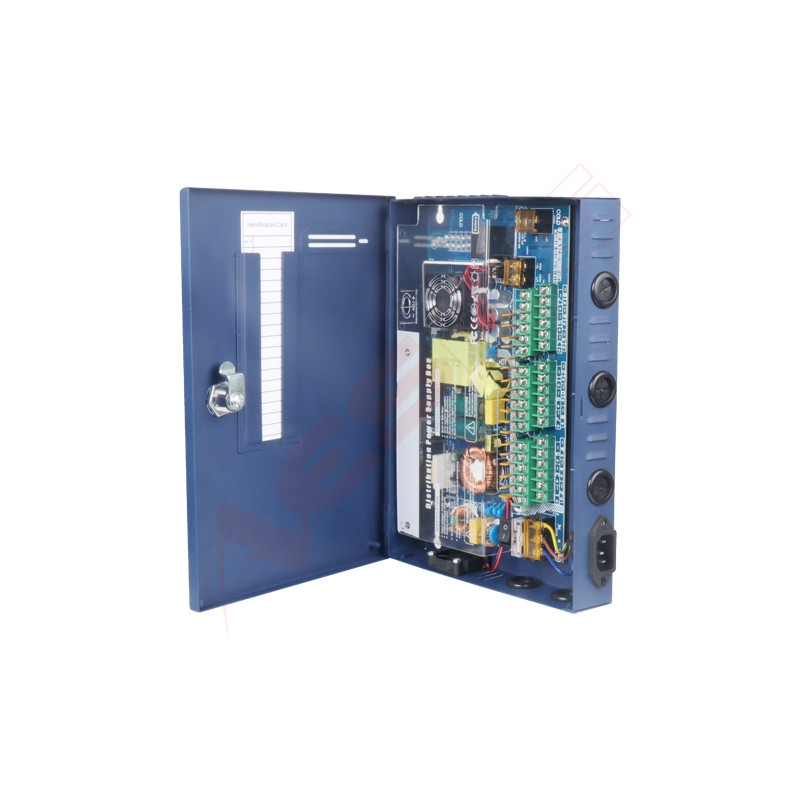

The power supply is housed in a metal case, with insulated cable glands and a key lock for additional protection. The front of the box features an indicator with status LEDs for each output to facilitate both installation and maintenance.
| Power consumption | AC 96V - 264V 50/60Hz |
| Power outputs | 18 outputs per copper pair (terminal) |
| Output voltage | 12V DC |
| Overall performance | 250W (20A) |
| Maximum intensity per output | 1150mA |
| Protection | Short circuit / overvoltage / current peaks |
| Filtered | EMI/PFC |
| Temp. Working principle | -20ºC ~ +50ºC |
| Dimensions | 282 (H) x 206 (W) x 40 (L) mm |
| UPS function | Connections for batteries 7AH-24AH external (battery not included) |
