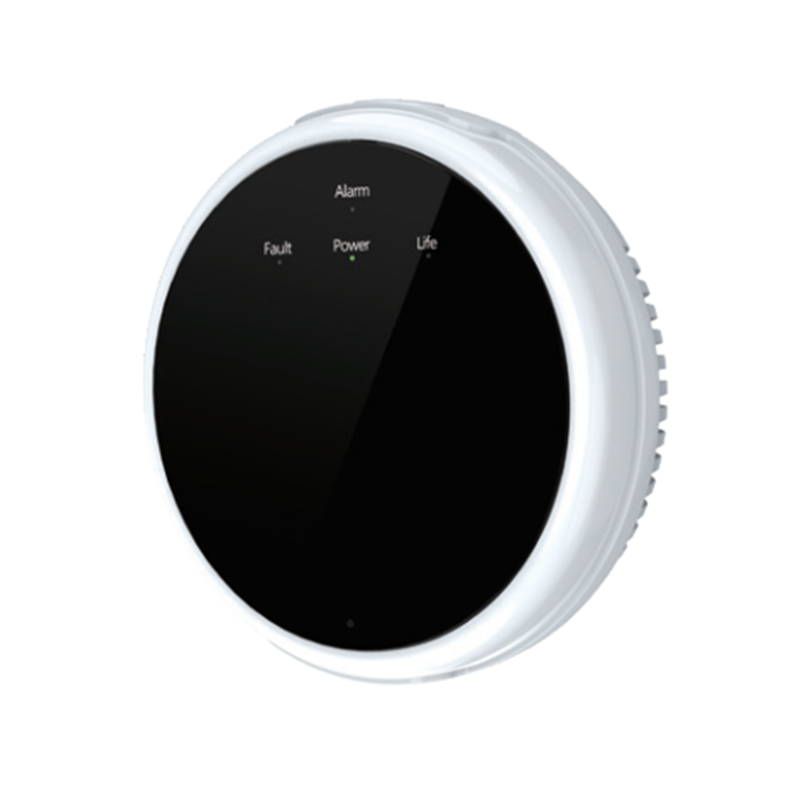

Sentra wireless gas detector for the QT1 & QT2

The Sentra wireless gas detector offers reliable protection against dangerous gas leaks in your home or business. It detects the early detection of flammable gases such as natural gas, propane, or butane and warns with an integrated 85 dB acoustic signal. The detector also sends a signal to the alarm control panel, which can initiate further alarm measures such as activating the indoor siren or the wireless solar outdoor siren. Notifications are also sent via the app via push notification and optionally via phone call or text message.

The detector is ideally mounted on the wall at a height of approximately 1.5 meters, especially in rooms with gas boilers, gas heaters, gas lamps, or gas stoves. Thanks to its compact design, the detector blends unobtrusively into the room's design. Power can be supplied flexibly via a power plug or USB.

The Sentra wireless gas detector is fully compatible with the Sentra QT1 and QT2 alarm control panels.

Product highlights

• Early detection: Reliably detects escaping flammable gases.
• Acoustic warning: Integrated siren with 85 dB volume.
• Alarm forwarding: Signal transmission to the alarm center to activate further alarm measures.
• Notifications: App push notifications and optional calls and SMS.
• Flexible power supply: Operation via mains plug or USB.
• Easy installation: Wall mounting at a recommended height of 1.5 meters.
• Compact design: Unobtrusive design for discreet integration.
• Compatibility: Seamless integration with Sentra QT1 and QT2.

Technical data

• Weight : approx. 230 g
• Dimensions : Diameter: 8.5 cm, Height: 2.5 cm
• Sound pressure : 85 dB @ 1 m
• Detection method : resistance measurement
• Sensor lifetime : 5 years (MTTF - Mean time to failures)
• Tamper monitoring : No
• Status monitoring and display via the app : Yes
• Radio power : max. 10mW (10dBm)
• Transmission range : approx. 30 to 100 meters (depending on local conditions)
• Modulation : FM
• Mounting options : Wall
• Power supply : mains plug or USB
• Average battery life : 2 years
• Installation location : recommended at a height of 1.5 m
• Installation area : Indoor
• Directive compliant : CE, FCC, RoHs
• Compatible with : Sentra QT1 & Sentra QT2

Scope of delivery

• 1x Sentra wireless gas detector
• 1x power plug with USB cable
• 1x mounting material
• 1x User manual (German)

The Sentra Wireless Gas Detector is an effective addition to your security system, providing early warning of dangerous gas leaks and initiating appropriate action. Its easy installation and reliable functionality make a significant contribution to the safety of your home or business.
