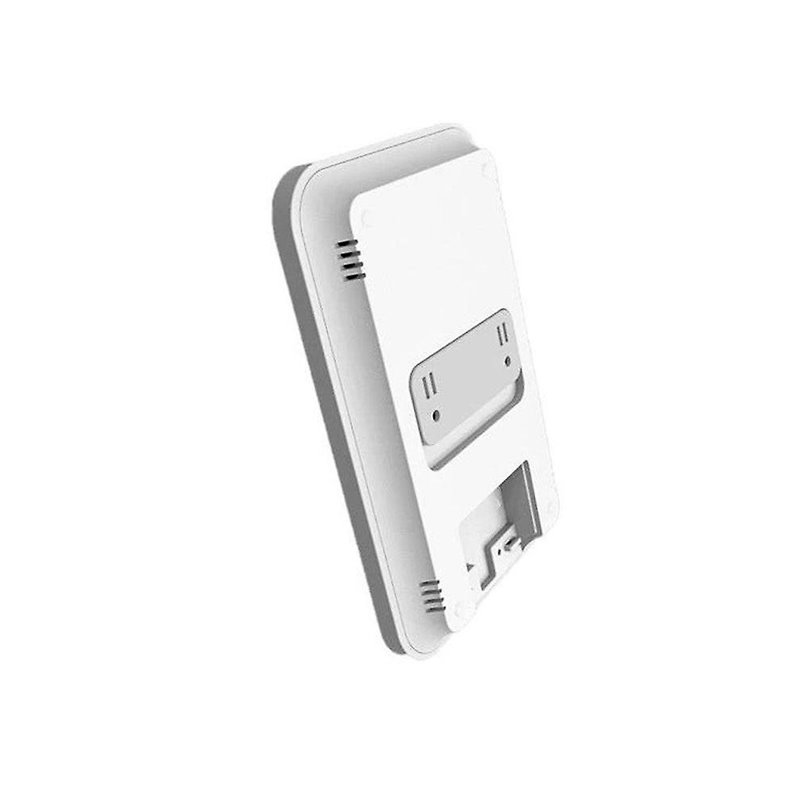

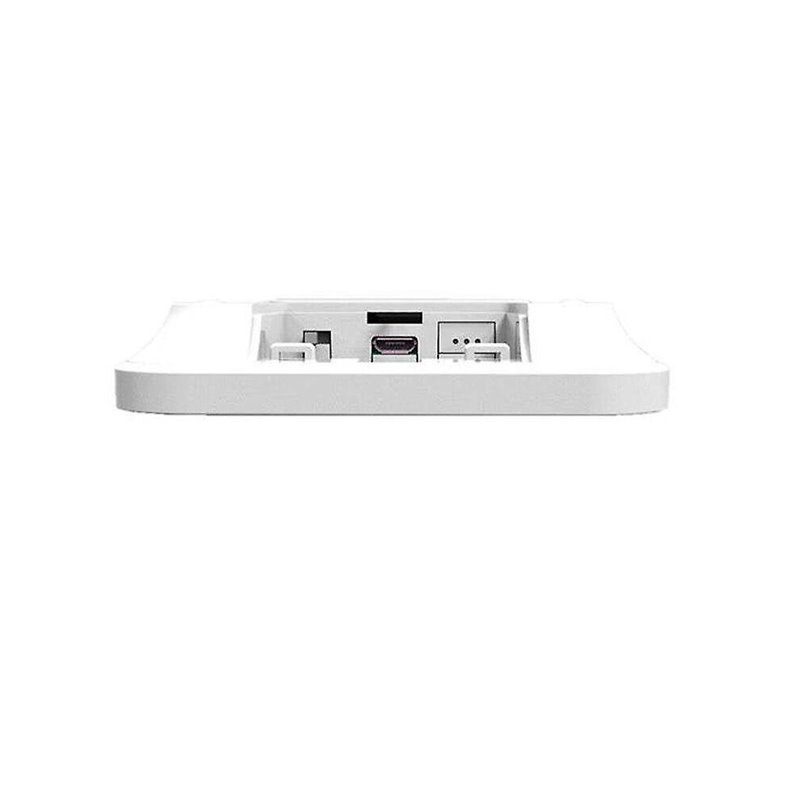

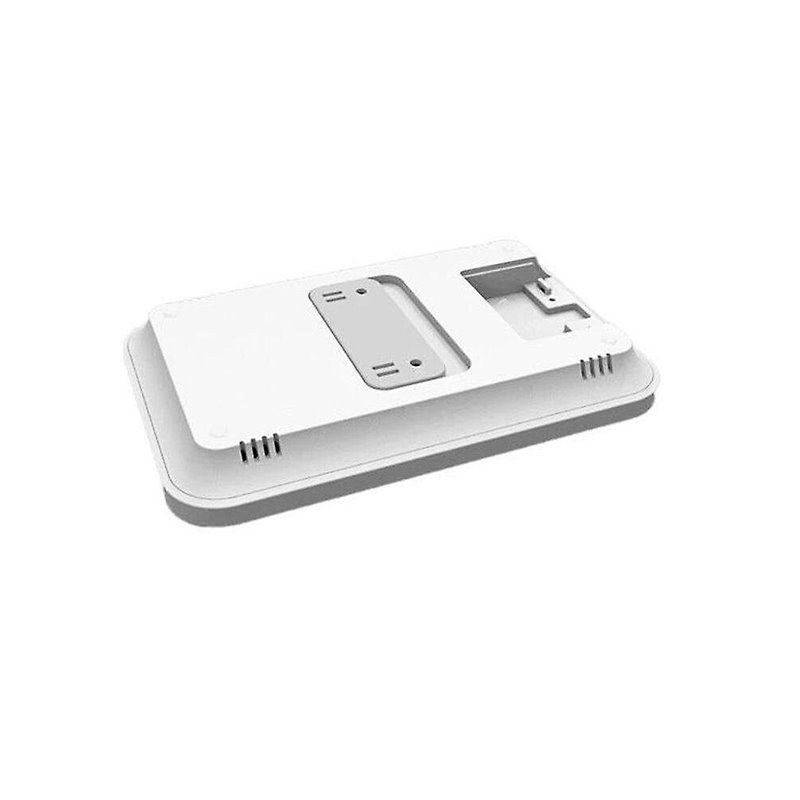

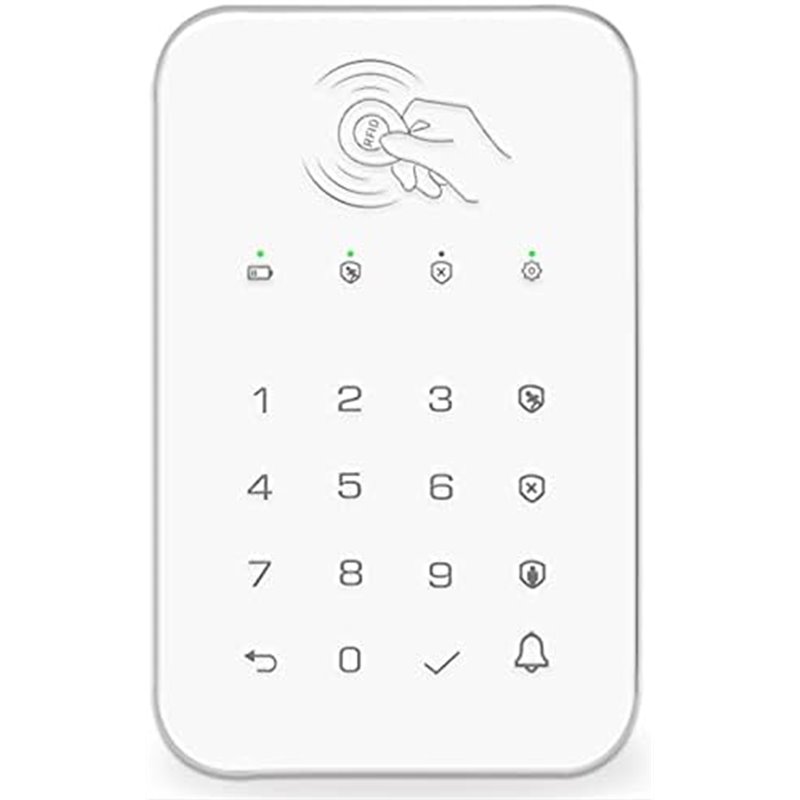

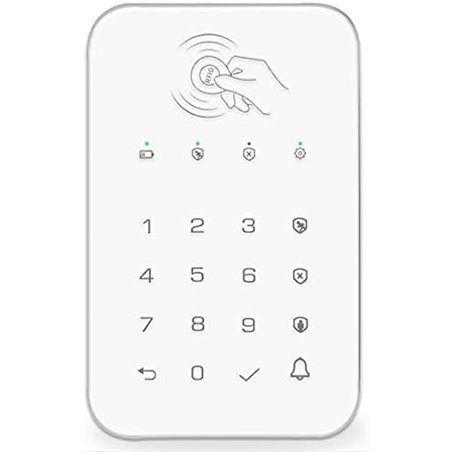

Sentra | Wireless keypad with RF reader for the QT1 & QT2 (white)

The Sentra Wireless Keypad with Tag Reader V2 White allows for convenient control of your alarm system. It is primarily used to arm and disarm the system when entering and exiting the building. Operation is either by entering a PIN code via the illuminated touchscreen or using an RFID chip key. Thanks to the wireless connection and integrated battery, the keypad can be flexibly mounted on any interior wall without the need for wiring.

Product highlights

• Flexible operation: Control the alarm system using up to three freely definable PIN codes or up to ten teachable RFID chips.
• Illuminated touch display: Allows easy operation even in poor lighting conditions.
• Tamper protection: Integrated monitoring against opening and demolition, with display in the alarm center.
• Integrated battery: Rechargeable via USB, no battery changes necessary.
• Easy installation: Wireless installation via radio connection, suitable for indoor use.
• Compatibility: Seamless integration with the Sentra QT1 and QT2 alarm panels.

Technical data

• Weight : 112 g
• Dimensions : 8.77 x 13.76 x 1.71 cm (W x H x D)
• Operation : with Sentra TAG chip key and/or PIN code entry
• Lighting : Yes
• Tamper monitoring : Yes, opening contact and tear-off contact
• Tamper indication of the sensor in the control panel : Yes
• Replaceable batteries : No
• Integrated battery : Yes
• Battery indicator in the app : Yes
• RFID detection range : approx. 0-6 cm
• Transmission range : approx. 30 to 100 meters (depending on local conditions)
• Mounting options : Screwed
• Power supply : Integrated battery for easy charging via USB charging cable, so no batteries are required.
• Mounting location : Wall
• Installation area : Indoor
• Directive compliant : CE, FCC, RoHs
• Learnable tags : maximum 10
• Functions : Arm, Partial Arm, Disarm (with TAG chip key) and Arm, Partial Arm, Disarm (with PIN code entry)
• Operating temperature of the Tag Reader Pad : -10°C to 50°C
• Compatible with : Sentra QT1 & Sentra QT2

Scope of delivery

• 1x Sentra Wireless Keypad with Tag Reader V2 White
• 1x USB charging cable for charging the battery
• 1x mounting material
• 1x User manual (German)

Note: RFID chip keys are not included and must be ordered separately.

This keypad provides a reliable and user-friendly way to control your Sentra alarm system. With its simple installation and versatile operating options, it's an ideal addition to your security system.
