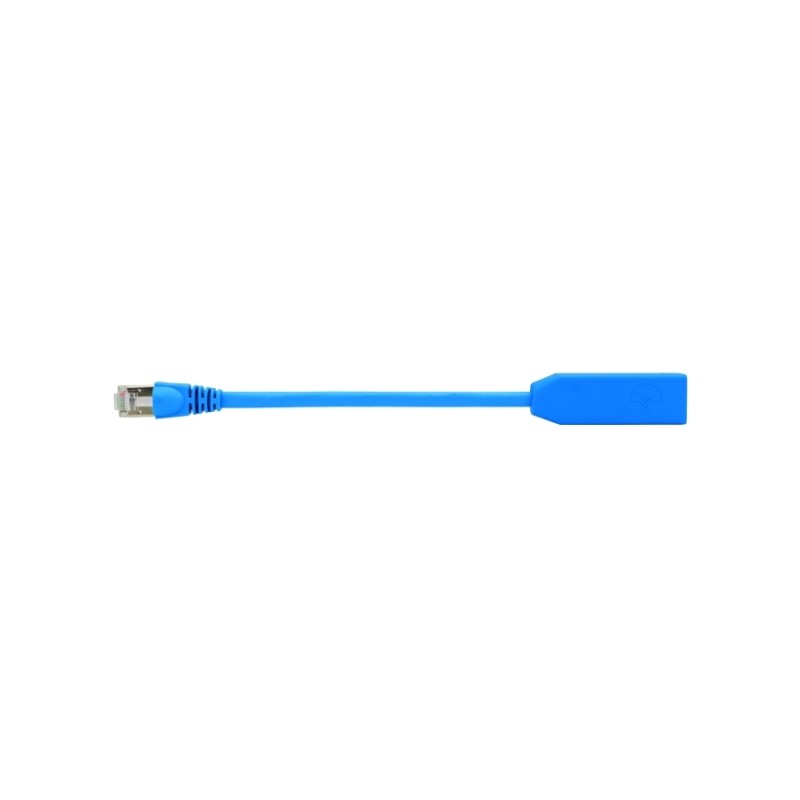

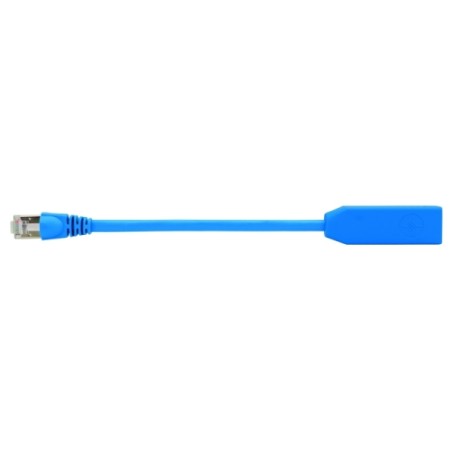

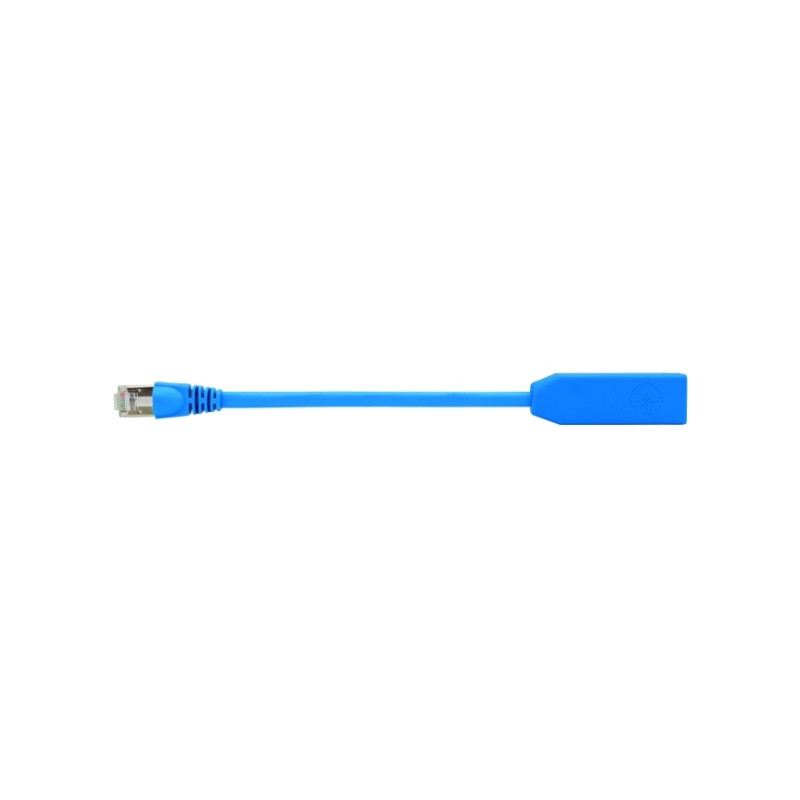

Telegärtner Cable Disconnect CP-Link, Blue, 0.2m, RJ45 plug/socket, DDCP-Link,

* Order-related order * Description of the series/product category The DDCP-Link offers users and network managers a simple way of protecting expensive and mobile IT equipment with a LAN connection from damage. If the mobile IT equipment is moved within a larger radius than the connected RJ45 connection cable allows, the DDCP-Link releases the connection when a certain pulling force is applied and protects the expensive circuit boards of the IT equipment from damage such as torn-out contacts or loss of the RJ45 socket for the network connection. Expensive repairs are therefore a thing of the past. Because the release force is below the standard specifications for RJ45 plugs and sockets according to IEC 60603-7, it is guaranteed that the connection between the RJ45 connection cable and the DDCP-Link is released first. Nevertheless, the DDCP offers sufficient plug-in and pull-out forces to prevent the connection from being accidentally released even with low pulling forces. The DDCP can be easily integrated into existing structures by inserting it between the telecommunications outlet, the connection cable, and in front of the active device.

High Power over Ethernet plus (PoE+) according to IEEE 802.3at Cable: S/FTP 4x2xAWG27/7 Cat.7 LSZH Cable outer diameter: 5.8 mm (+/- 0.2 mm) Service life = 750 mating cycles Circuit diagram 1:1 Pin assignment T568B connector with locking lever protection Plug and socket according to IEC 60603-7-51 Temperature range: -40° C to 70° C Material shielding housing socket: zinc die-cast nickel-plated Material housing cover: ABS blue Material contact surface: Ni1.2Au0.8
