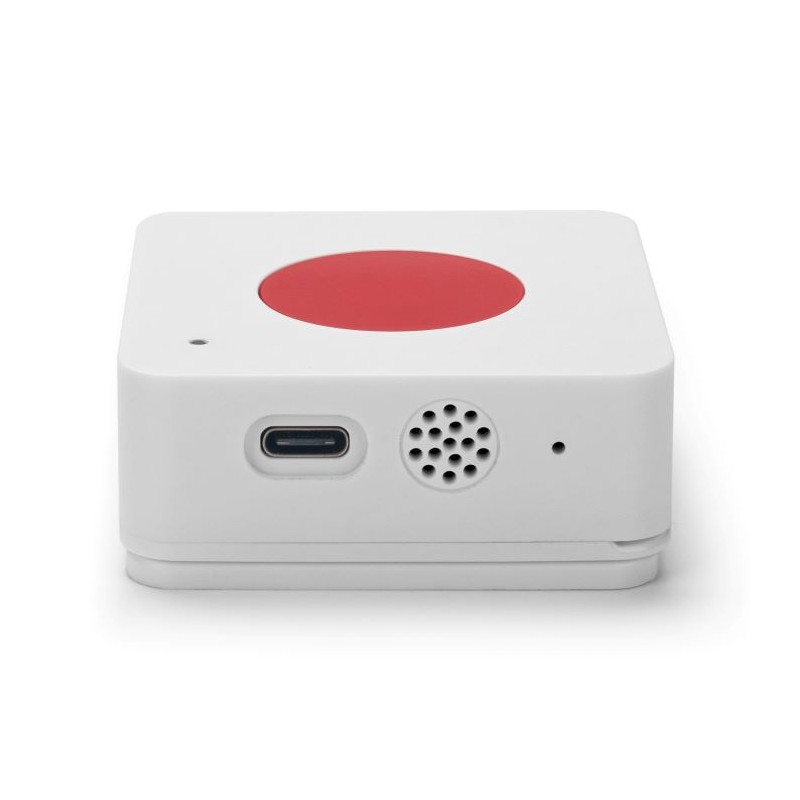

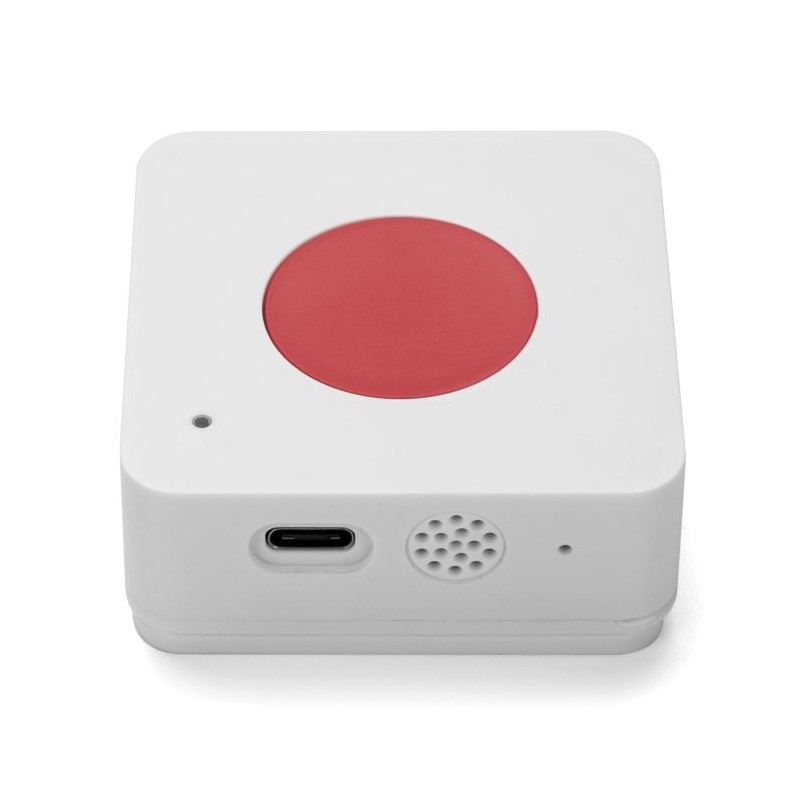

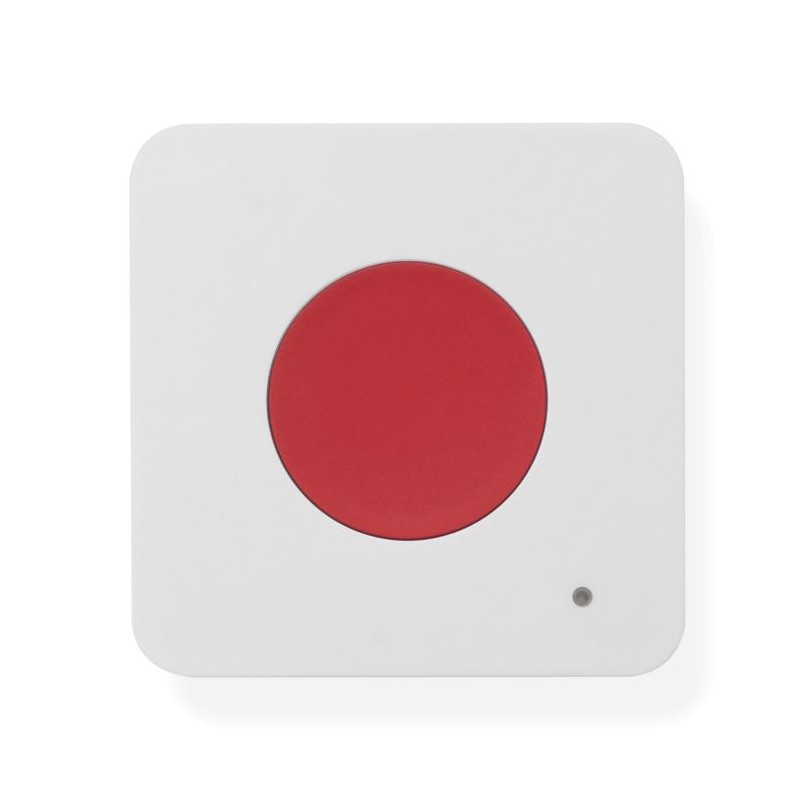

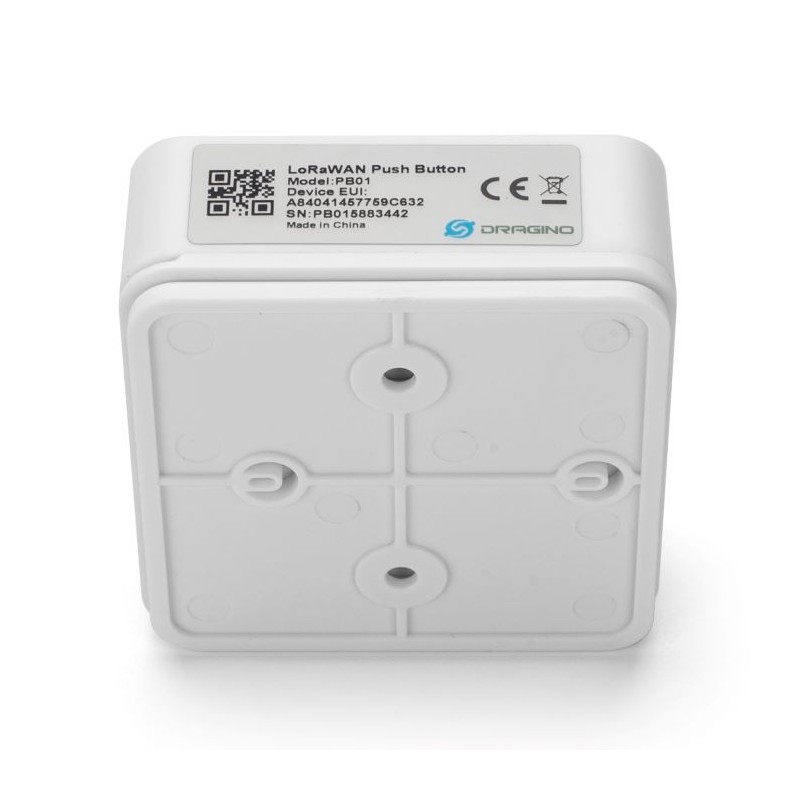

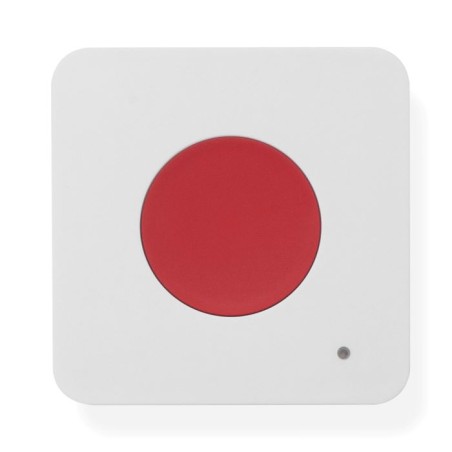

DRAGINO - Sensor - LoRa - Button (red) - PB01-LR-EU868

The PB01 LoRaWAN Button is a LoRaWAN radio device with a push button. As soon as the user presses the button, the PB01 transmits the signal to the IoT server via the long-range LoRaWAN wireless protocol. PB01 also measures the ambient temperature and humidity and transmits this data to the IoT server as well.

PB01 supports 2 x AAA batteries and works for a long time up to several years*. The user can easily replace the batteries when they are used up.

PB01 has a built-in speaker that can make different sounds when you press the button and receive a response from the server. The loudspeaker can be switched off at the user's request.

PB01 is fully compatible with LoRaWAN v1.0.3 protocol, it can work with standard LoRaWAN gateways.

*Battery life depends on how often the data is sent.

Features:

• Wall mountable.
• LoRaWAN v1.0.3 Class A protocol.
• 1 x push button. Different colors available.
• Built-in temperature and humidity sensor
• Built-in speaker
• Frequenzbänder: CN470/EU433/KR920/US915/EU868/AS923/AU915
• AT commands for changing parameters
• Remote configuration of parameters via LoRaWAN downlink
• Firmware upgrade possible via program port
• Supports 2 x AAA LR03 batteries.
• IP rating: IP52

Technical data:

Built-in temperature sensor:

• Resolution: 0.01 °C
• Accuracy tolerance: Type ±0.2 °C
• Long-term drift: &lt 0.03 °C/year
• Operating range: -10 ~ 50 °C or -40 ~ 60 °C

Built-in humidity sensor:

• Resolution: 0.01 %RH
• Accuracy tolerance: Type ±1.8 %RH
• Long-term drift: &lt 0.2 %RH/year
• Operating range: 0 ~ 99.0 %RH(without dew)
