DRAGINO - Sensor - LoRa - Water leakage sensor - WL03A-LB-EU868

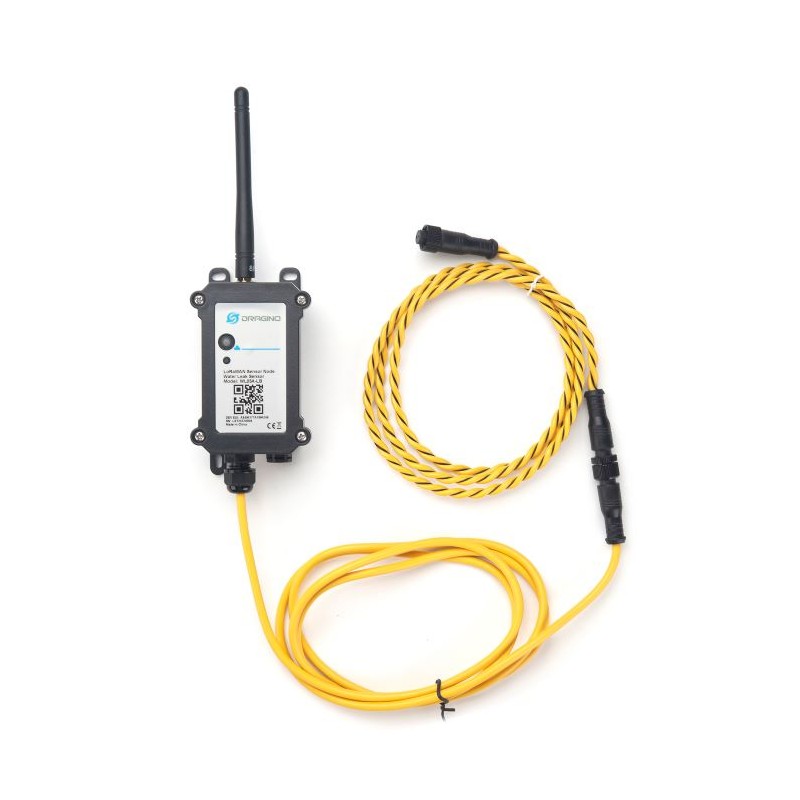

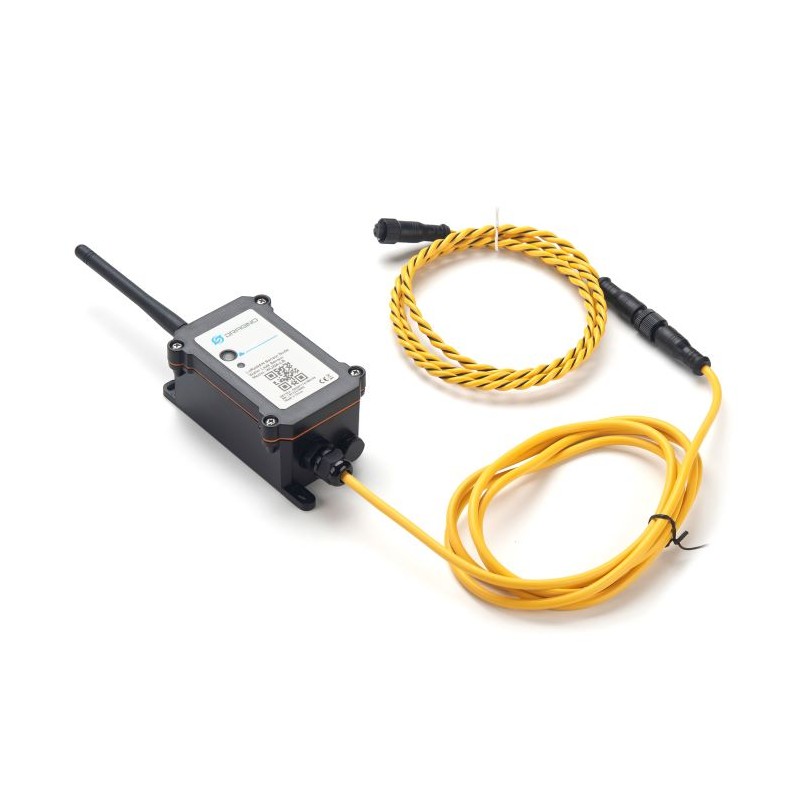

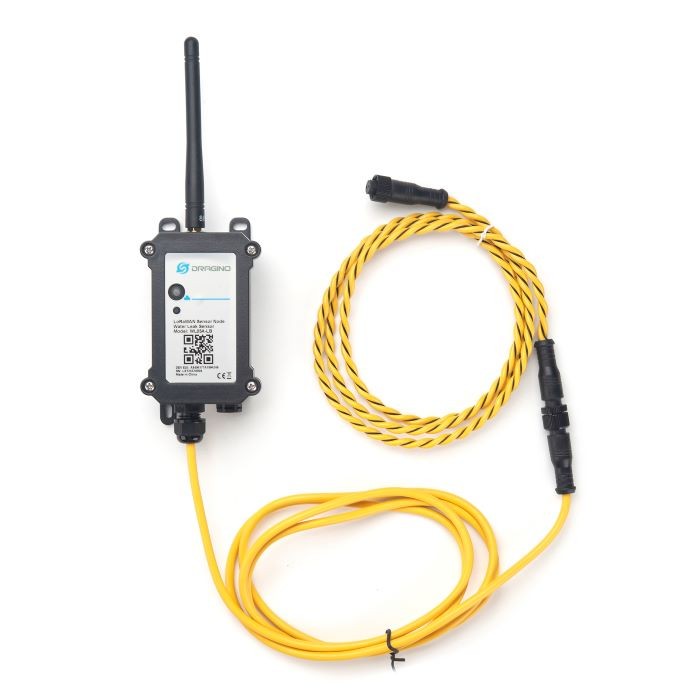

The Dragino WL03A-LB is a LoRaWAN water leakage controller. The user can place the WL03A-LB + water leakage cable on the ground to detect water leaks. The water leakage cable is sensitive when there is water above the leakage cable. WL03A-LB indicates a water leak and sends an uplink to the IoT server via the LoRaWAN network. The WL03A-LB sends data regularly every 2 hours and for each water leak event. It also counts the water leak times and calculates the duration of the last water leak. The WL03A-LB supports BLE configuration and wireless OTA update, which make it easier for the user to use. WL03A-LB is powered by an 8500mAh Li-SOCI2 battery and is designed for long-term use of up to 5 years.

Each WL03A-LB is preloaded with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will connect automatically after power on.

Features:

• LoRaWAN 1.0.3 Class A
• Ultra-low power consumption
• Bänder: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Water leakage detection
• Supports Bluetooth v5.1 and LoRaWAN remote configuration
• Supports wireless OTA update firmware
• Uplink at regular intervals
• Downlink to change the configuration
• 8500mAh Li/SOCl2 battery

Applications:

• Smart buildings & home automation
• Smart cities
• Smart factory

Specifications:

Supply voltage: Built-in battery, 2.5v ~ 3.6v
Operating temperature: -40 ~ 85°C

LoRa specification:

• Frequency range, Band 1 (HF): 862 ~ 1020 Mhz, Band 2 (LF): 410 ~ 528 Mhz
• Max. +22 dBm constant RF output vs.
• RX sensitivity: up to -139 dBm.
• Excellent blocking immunity

Rechargeable battery:

• Non-rechargeable Li/SOCI2 battery
• Capacity: 8500mAh
• Self-discharge: &lt1% / year @ 25°C
• Max. Continuous current: 130mA
• Max. Charging current: 2A, 1 second

Power consumption:

• Sleep mode: 5uA @ 3.3v
• LoRa transmit mode: 125mA @ 20dBm, 82mA @ 14dBm

Scope of delivery:

• 1 x WL03A-LB
• 1 x 1m water cable
• 1 x connection end
