DRAGINO - Sensor - LoRa - Sensor for UVC radiation - UV254-LB-EU868

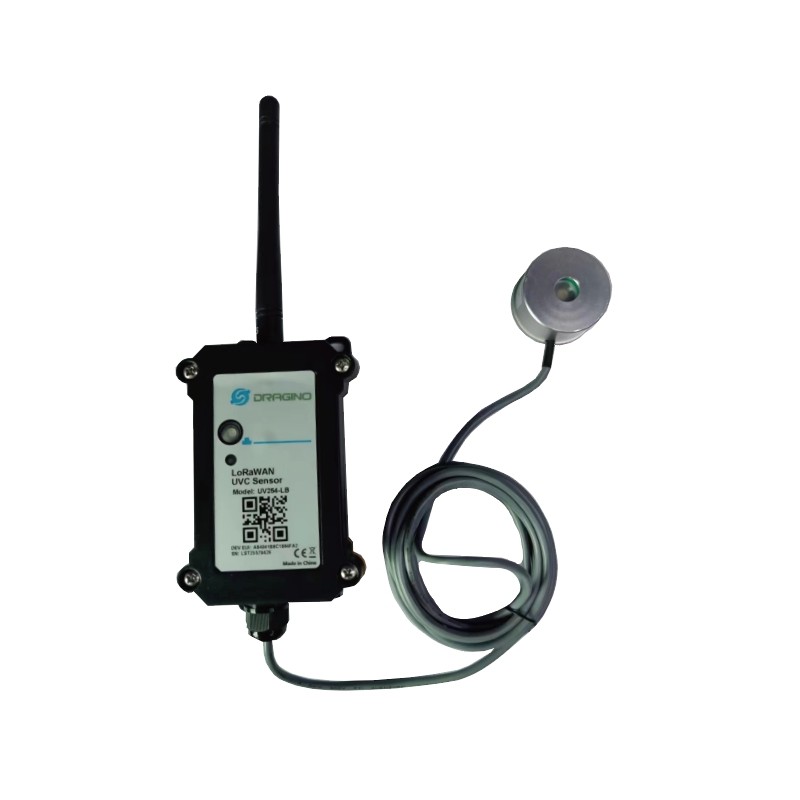

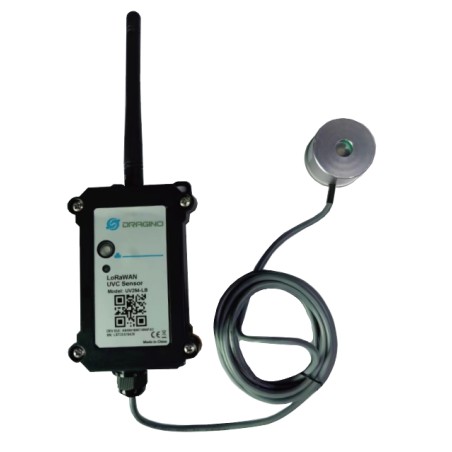

The Dragino UV254-LB is a LoRaWAN UVC radiation sensor for Internet-of-Things solutions. UV254-LB is an indoor UVC sensor specifically designed to detect the intensity of UV lamps. UV254-LB converts the UVC intensity into LoRaWAN radio data and sends it to the IoT platform via the LoRaWAN gateway.

UVC is harmful to human health and UVC lamps lose effectiveness after prolonged use. With the UV254-LB, the administrator can determine whether the UVC lamp is still effective and ensure that it stops working in an unexpected time.

The LoRa radio technology used in the UV254-LB enables the device to transmit data and achieve extremely long ranges at low data rates. It offers spread spectrum communication with extremely long range and high interference immunity with minimal power consumption.

The UV254-LB supports BLE configuration and wireless OTA updates, making it easier for the user to use.

The UV254-LB is powered by an 8500mAh Li-SOCI2 battery, which is designed for long-term use of up to 5 years.

Each UV254-LB is pre-loaded with a set of unique keys for LoRaWAN registrations. These keys are registered on the local LoRaWAN server and the connection is automatically established after power-up.

Features:

• LoRaWAN 1.0.3 Class A
• Ultra-low power consumption
• Detection of the operating status of the UVC lamp
• Detection of the working efficiency of the UVC lamp
• Peak response spectrum 254nm
• Battery level monitoring
• Bänder: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Supports Bluetooth v5.1 and LoRaWAN remote configuration
• Supports wireless OTA update firmware
• Uplink at regular intervals
• Downlink to change the configuration
• 8500mAh battery for long-term operation

Technical data:

Supply voltage: 2.5v ~ 3.6v
Operating temperature: -40 ~ 85°C

Probe specification:

• Measuring range 0~5mw/cm ²
• Response spectrum range 254nm±5nm
• Peak response spectrum 254nm

LoRa spec:

• Frequency range, Band 1 (HF): 862 ~ 1020 Mhz,Band 2 (LF): 410 ~ 528 Mhz
• Max. +22 dBm constant RF output vs.
• RX sensitivity: up to -139 dBm.
• Excellent blocking immunity

Rechargeable battery:

• Non-rechargeable Li/SOCI2 battery
• Capacity: 8500mAh
• Self-discharge: &lt1% / year @ 25°C
• Max. Continuous current: 130mA
• Max. Charging current: 2A, 1 second

Power consumption:

• Sleep mode: 5uA @ 3.3v
• LoRa transmit mode: 125mA @ 20dBm, 82mA @ 14dBm
