DRAGINO · LoRa · LA66 Arduino UNO Shield · LA66 Shield-EU868

DRAGINO LA66 LA66 Arduino UNO Shield

overview

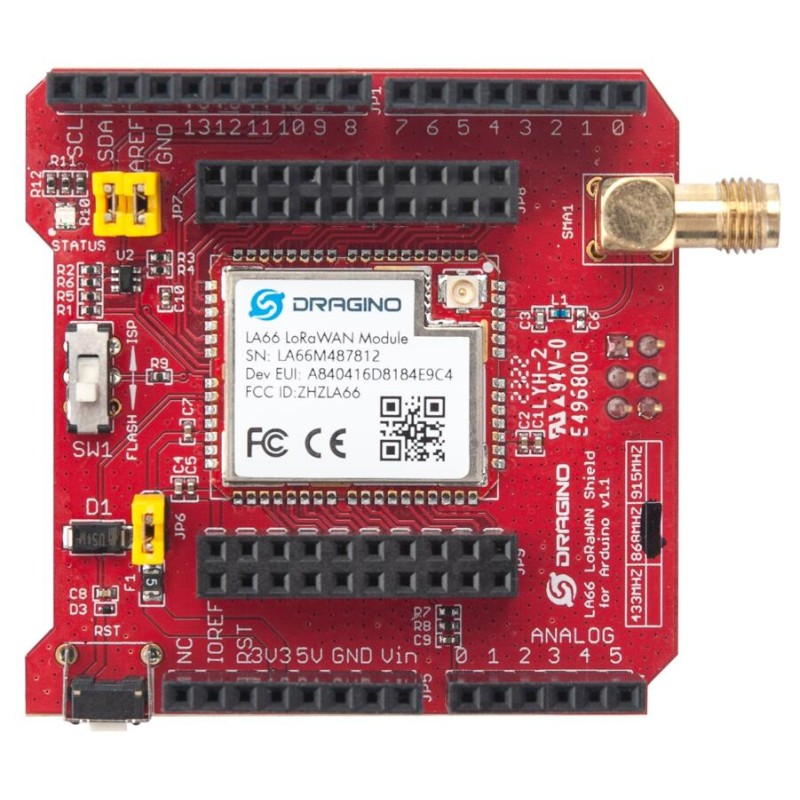

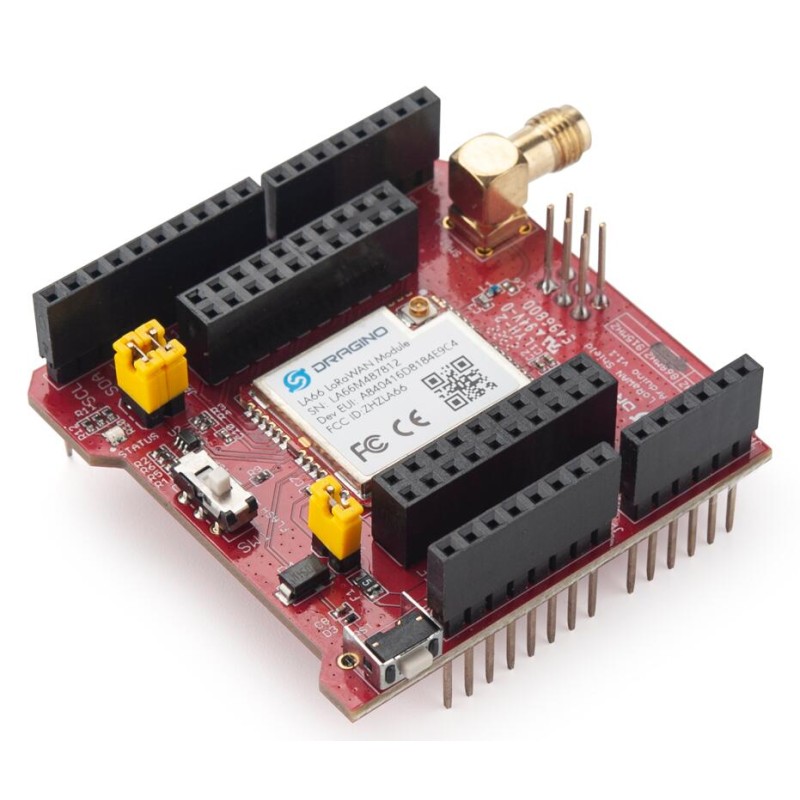

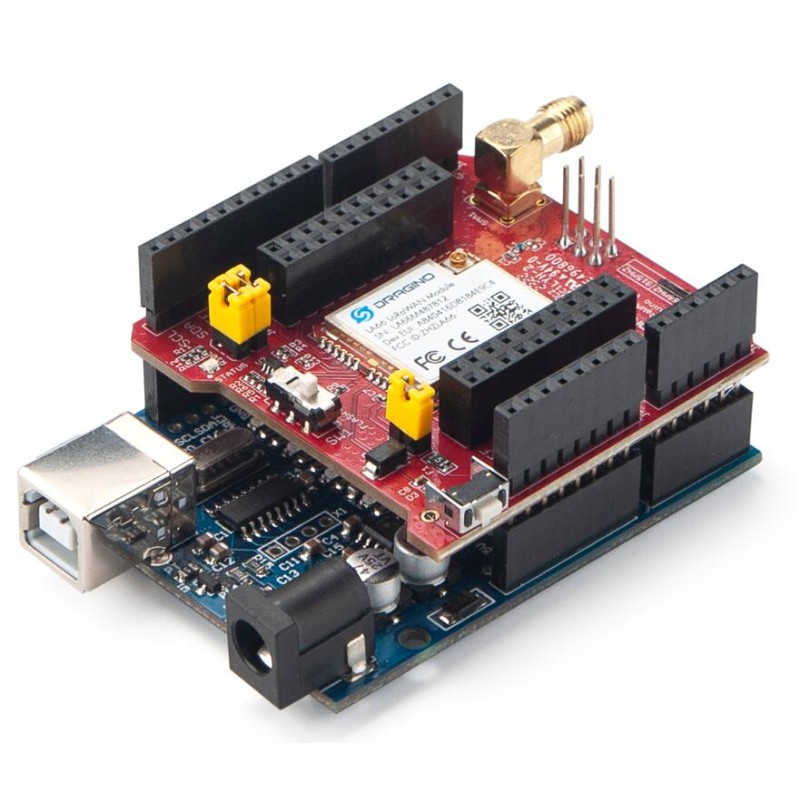

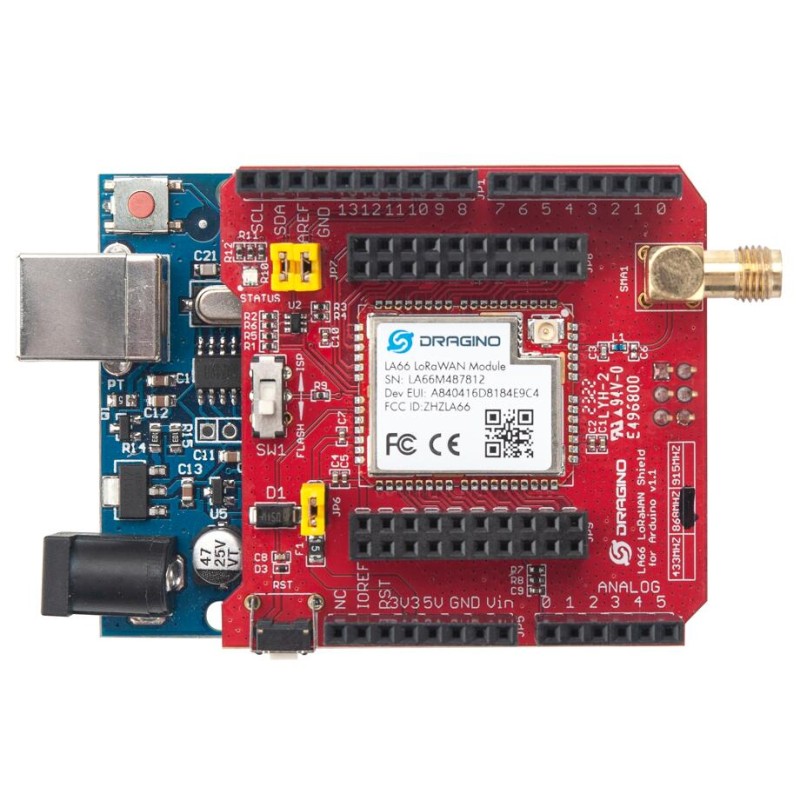

LA66 LoRaWAN Shield is the Arduino shield based on LA66. Users can use LA66 LoRaWAN Shield to quickly add LoRaWAN or peer-to-peer LoRa wireless function to Arduino projects.

LA66 is a ready-to-use module that contains the LoRaWAN v1.0.3 protocol. The LoRaWAN stack used in LA66 is deployed in more than 1 million LoRaWAN end devices worldwide. This mature LoRaWAN stack reduces the risk of developing stable LoRaWAN sensors that support different LoRaWAN servers and different country standards. External MCUs can call LA66 via AT command and start data transmission via LoRaWAN protocol.

Each LA66 module contains a globally unique OTAA key for LoRaWAN registration.

In addition to supporting the LoRaWAN protocol, LA66 also supports the open source peer-to-peer LoRa protocol for non-LoRaWAN applications.

LA66 is equipped with a TCXO crystal, which ensures that the module can deliver stable performance even under extreme temperatures.

Characteristics

• Arduino shield based on the LoRaWAN module LA66
• Supports LoRaWAN v1.0.3 protocol
• Supports peer-to-peer protocol
• TCXO crystal to ensure RF performance at low temperatures

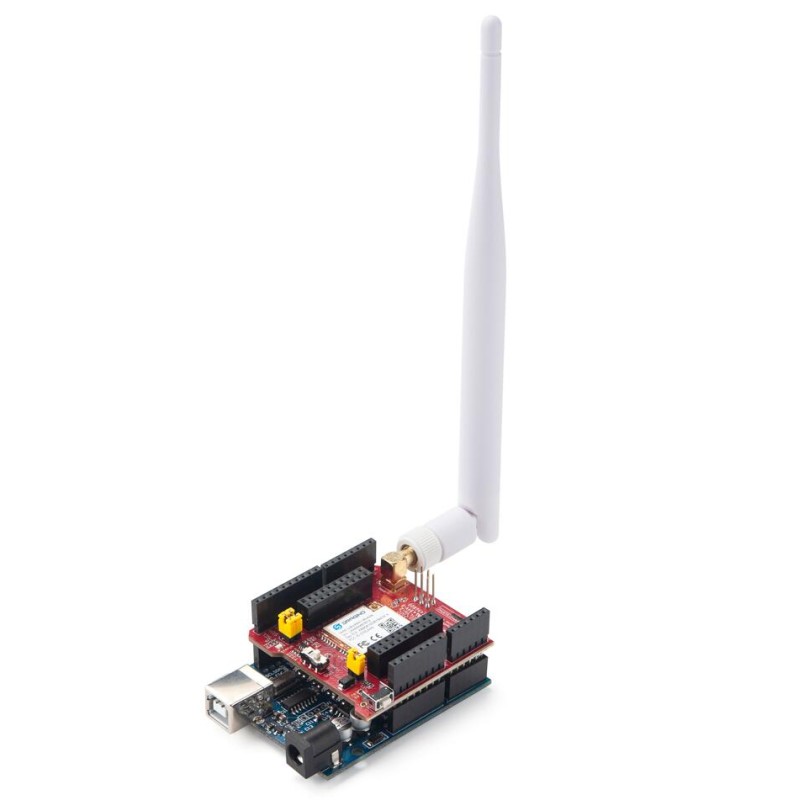

• SMA connector
• Globally unique OTAA keys.
• AT command via UART-TTL interface
• Firmware upgrade possible via UART interface
• Ultra-long RF range

Specifications

• CPU : 32-bit 48MHz
• Flash : 256KB
• RAM : 64KB
• Input Power Range : 1.8v ~ 3.7v
• Power consumption : < 4uA.
• Frequency Range : 150MHz ~ 960MHz
• Maximum Power +22 dBm constant RF output
• High sensitivity : -148 dBm
• Temperatures :
  • Storage : -55 ~ +125?
  • Operating : -40 ~ +85?
• Humidity :
  • Storage : 5 ~ 95% (Non-Condensing)
  • Operating : 10 ~ 95% (Non-Condensing)
• LoRa Tx Current : <90 mA at +17 dBm, 108 mA at +22 dBm
• LoRa Rx current : <9 mA
• I/O Voltage : 3.3v

scope of delivery

• 1 x LA66 Arduino Shield
