DRAGINO TrackerD Accessories: BLE iBeacon for indoor positioning
overview

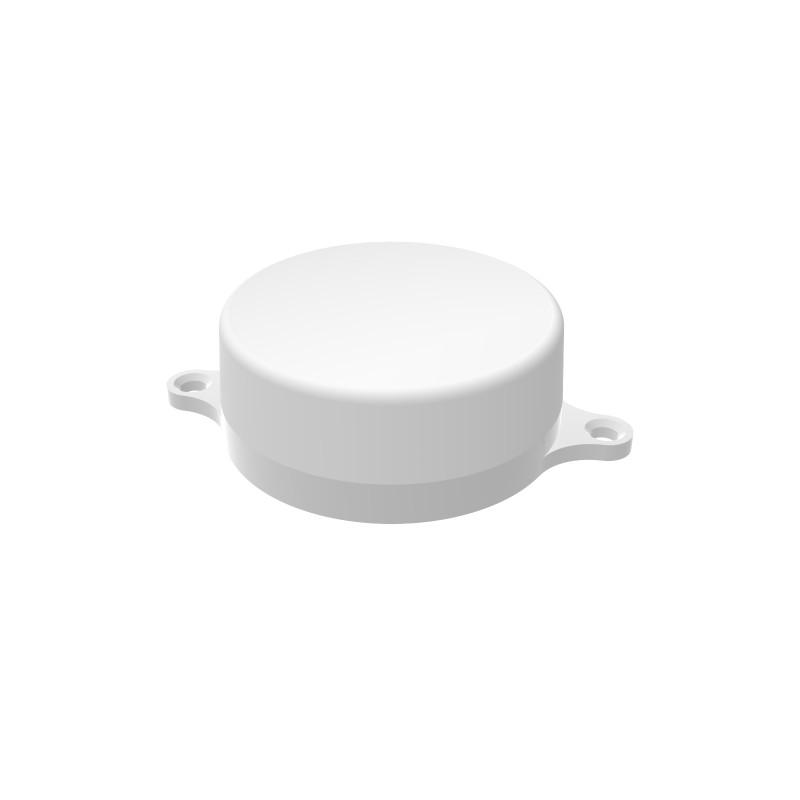

The BCN02 is a Bluetooth BLE iBeacon designed for indoor positioning. BCN02 is based on Diglog IC and supports Bluetooth 5.1 protocol. BCN02 has low power consumption and 1200mAh battery. With a transmission interval of 500ms, BCN02 can work for 4~5 years.
BCN02 is designed to be used together with Dragino TrackerD to provide a LoRaWAN indoor positioning solution. There are many BCN02s placed in different locations and broadcast their UUID via Bluetooth. The user brings the TrackerD LoRaWAN BLE tracker, the TrackerD scans the UUID and chooses the UUID with the highest signal to uplink via LoRaWAN. So the IoT server will know where the TrackerD is.
BCN02 is off when shipped by airplane, user needs to twist it to open and insert the power plug to turn it on.
Characteristics
- 1200mAh battery
- 4~5 years battery life (standard 500ms interval)
- Distance, 100 meters in open area
- RF Power: -19.5 ~ 2.5dBm(Default 2.5dBm)
- Operating temperature: -30 ~ 60 °C
- Suitable for outdoor use, weatherproof
- Configurable via mobile phone
- Battery consumption:
- Standby: 0.27uA
- Transmission: 16uA
scope of delivery
- 1 x BCN02
