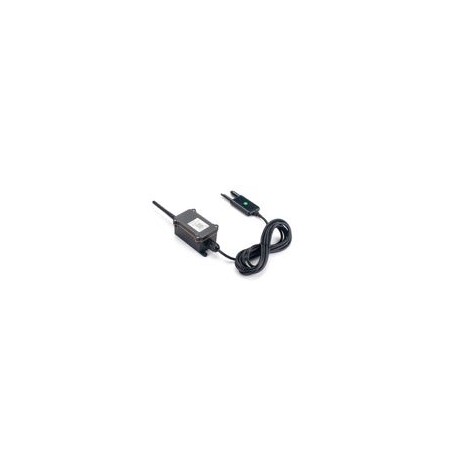

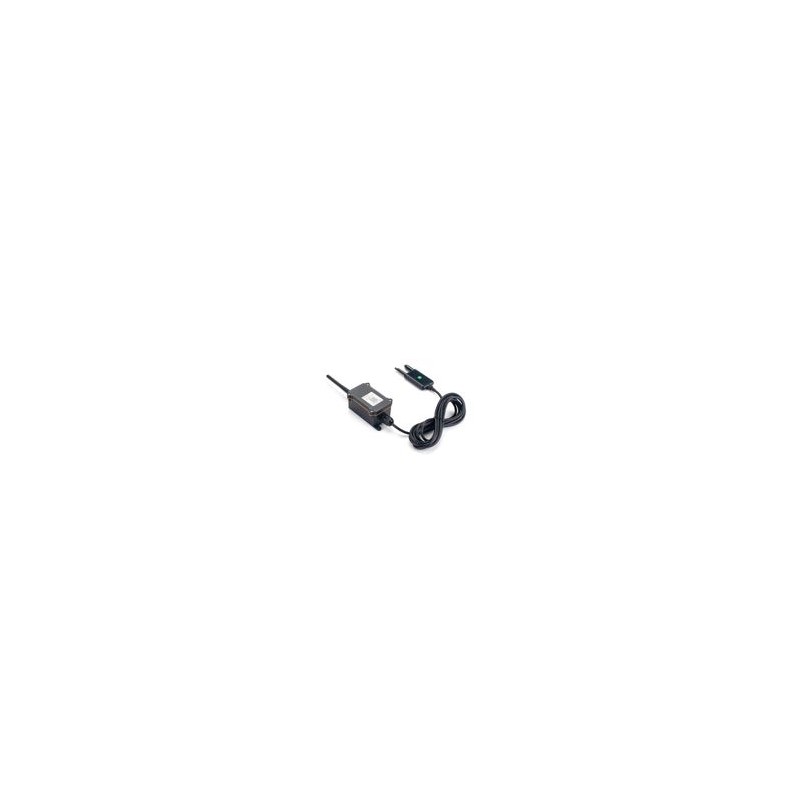

DRAGINO LSPH01-EU868 Soil PH Sensor

overview

Dragino LSPH01 is a LoRaWAN soil pH sensor for IoT in agriculture. It is designed to measure soil pH and soil temperature and send it to the platform to analyze soil acidity or alkalinity. The probe is IP68 waterproof.

The LSPH01 probe is composed of a solid AgCl reference electrode and a pure metal pH sensitive electrode. It can determine the pH value of the soil with high accuracy and stable value. The LSPH01 probe can be buried in the soil for a long time.

The LoRa radio technology used in the LSPH01 enables the device to transmit data and achieve extremely long ranges at low data rates. It provides extremely long range spread spectrum communication with high interference immunity while consuming minimal power.

LSPH01 is powered by a 8500mAh Li-SOCI2 battery, which is designed for long-term use of up to 5 years.

Each LSPH01 is preloaded with a set of unique keys for LoRaWAN registrations. These keys are registered on the local LoRaWAN server and the connection is established automatically after power-on.

Characteristics

• LoRaWAN 1.0.3 Class A
• Ultra-low power consumption
• Monitoring soil pH with temperature compensation
• Monitoring soil temperature
• Monitoring the battery level
• End-user pH calibration support
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• AT commands to change parameters
• Uplink at regular intervals
• Downlink to change the configuration
• Waterproof IP66 housing
• IP68 protection for the sensor probe
• 8500mAh battery for long-term operation

Applications

• Intelligent Agriculture

scope of delivery

• 1 x PIONEER LSPH01
