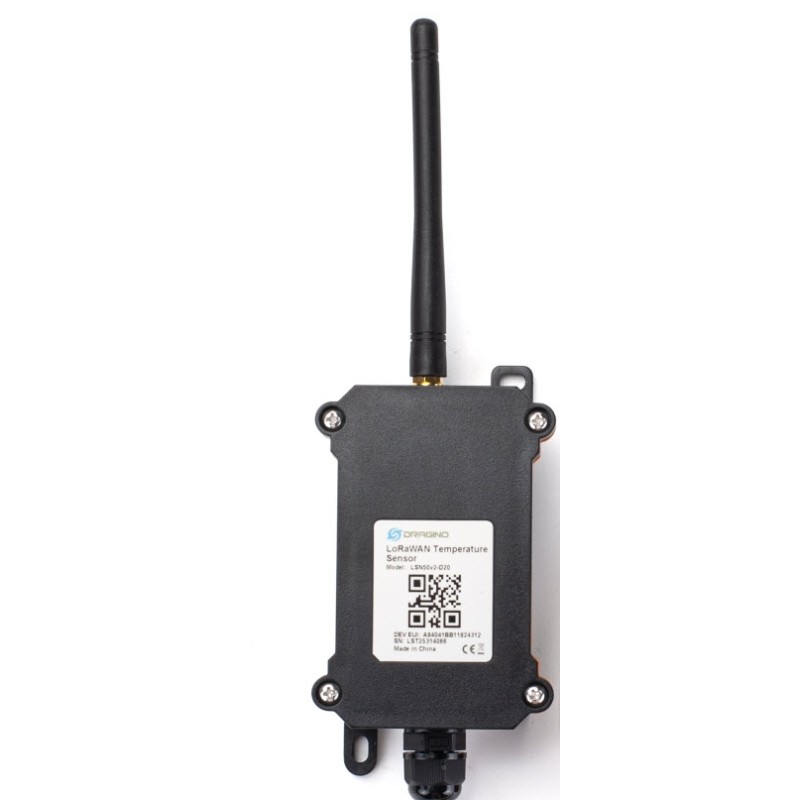

DRAGINO LTC2-NA.EU868 LoRa Industrial Temperature Transmitter

!! without probe !!

overview

The Dragino LTC2 Industrial LoRaWAN Temperature Transmitter is designed for monitoring temperature in various environments. It supports reading PT100 probes and converting the value into temperature and uplink to IoT server via LoRaWAN protocol.

The LTC2 supports data logging function. User can get the sensor value via LoRaWAN downlink command.
The LTC2 is powered by a 8500mA Li-SOCI2 battery for long-term measurements. The battery life is 2 to 10 years, depending on the network environment and working mode.

Each LTC2 has two internal 16-bit ADC interfaces and is calibrated with 12 resistors to ensure measurement accuracy over a wide range.
The LTC2 is compatible with LoRaWAN v1.0.3. Each LTC2 is pre-installed with a set of unique keys for LoRaWAN registration.

Characteristics

• LoRaWAN v1.0.3 Class A
• max: 2 x monitor temperature channels
• Supports 3-wire PT-100
• 8500mAh Li-SOCI2 battery
• Firmware upgrade via console
• Wall mountable
• Configurable via LoRa or UART
• Datalog and retrieval via LoRaWAN
• Using a pre-charged PT100 sensor or a third PT100 sensor
• Factory calibration for various resistance ranges
• Supports resistance accuracy measurement and upload
• Battery monitoring and upload

Application

• Logistics and supply chain management
• Food management.
• Cold chain solution
• Industrial monitoring and control

scope of delivery

• 1 x LTC2 Industrial LoRaWAN Temperature Transmitter
