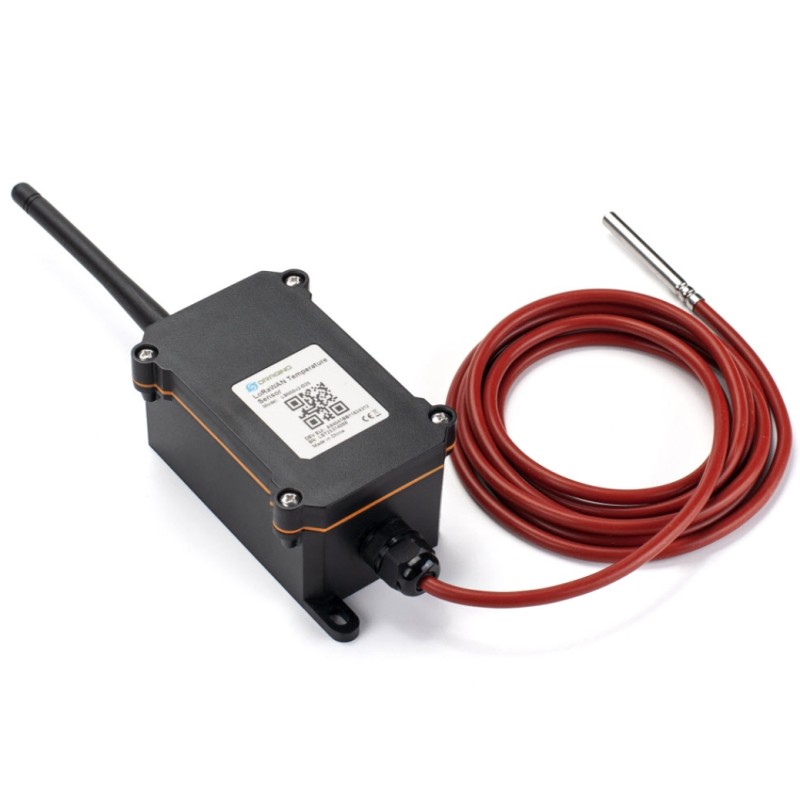

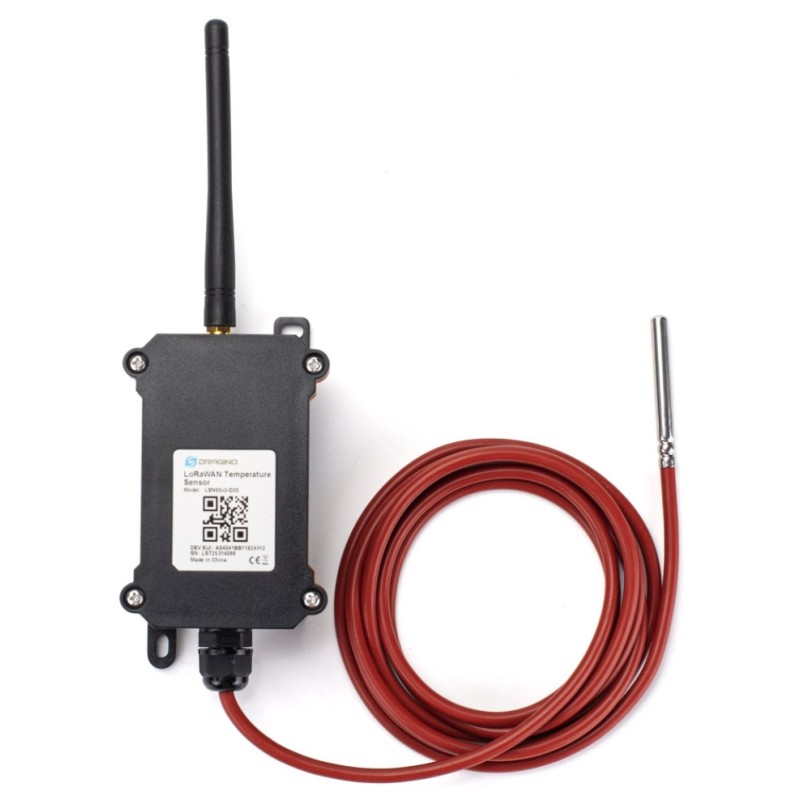

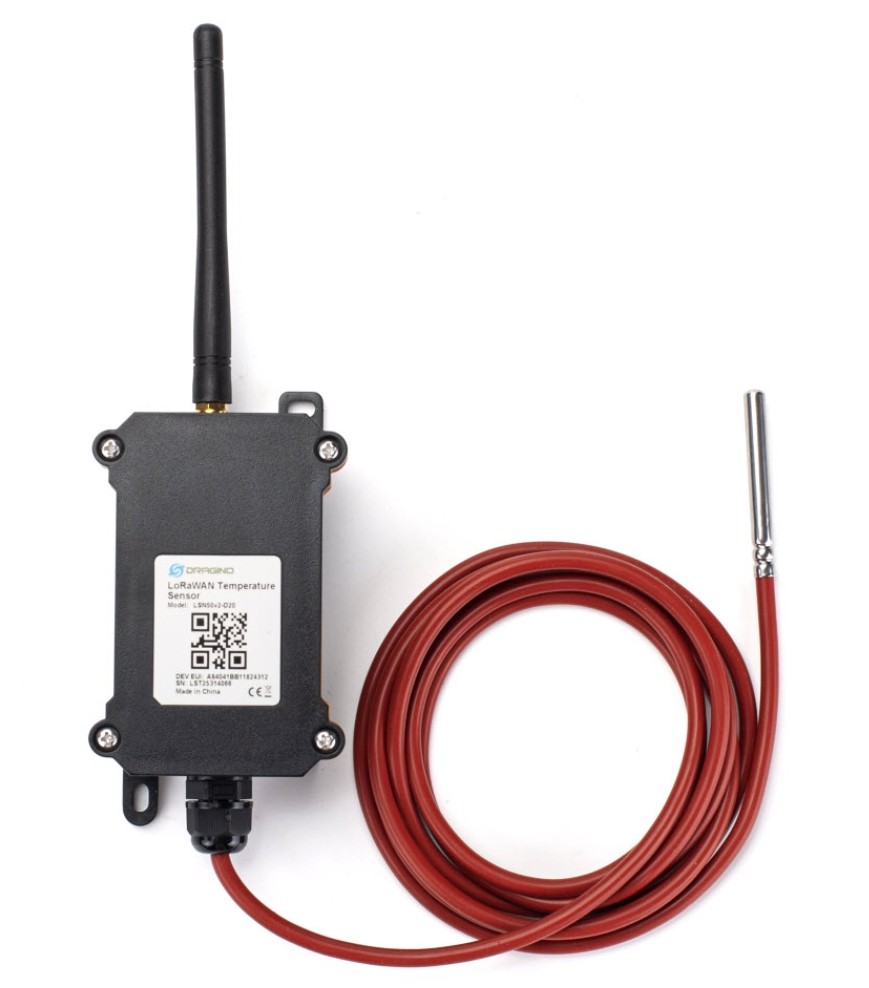

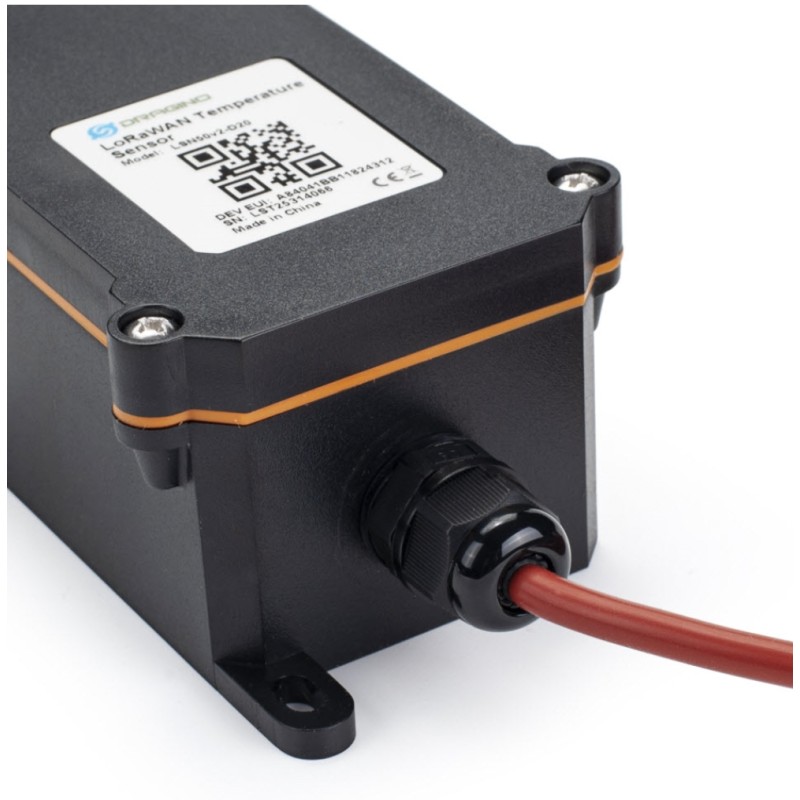

DRAGINO LTC2-LT-EU868 Industrial Temperature Transmitter

overview

The LTC2 supports data logging function. The user can obtain the sensor value via LoRaWAN downlink command. The LTC2 is powered by a 8500mA Li-SOCI2 battery for long-term measurements. The battery life is 2 to 10 years depending on the network environment and working mode. Each LTC2 has two internal 16-bit ADC interfaces and is calibrated with 12 resistors to ensure measurement accuracy in a wide range. The LTC2 is compatible with LoRaWAN v1.0.3. Each LTC2 is preloaded with a set of unique keys for LoRaWAN registration. These keys are registered on the local LoRaWAN server and the connection is established automatically after power on.

Characteristics

• LoRaWAN v1.0.3 Class A
• max: monitor 2 x temperature channels
• Supports 3-wire PT-100
• 8500mAh Li-SOCI2 battery
• Firmware upgrade via console
• Wall mounting possible
• Configurable via LoRa or UART
• Data collection and retrieval via LoRaWAN

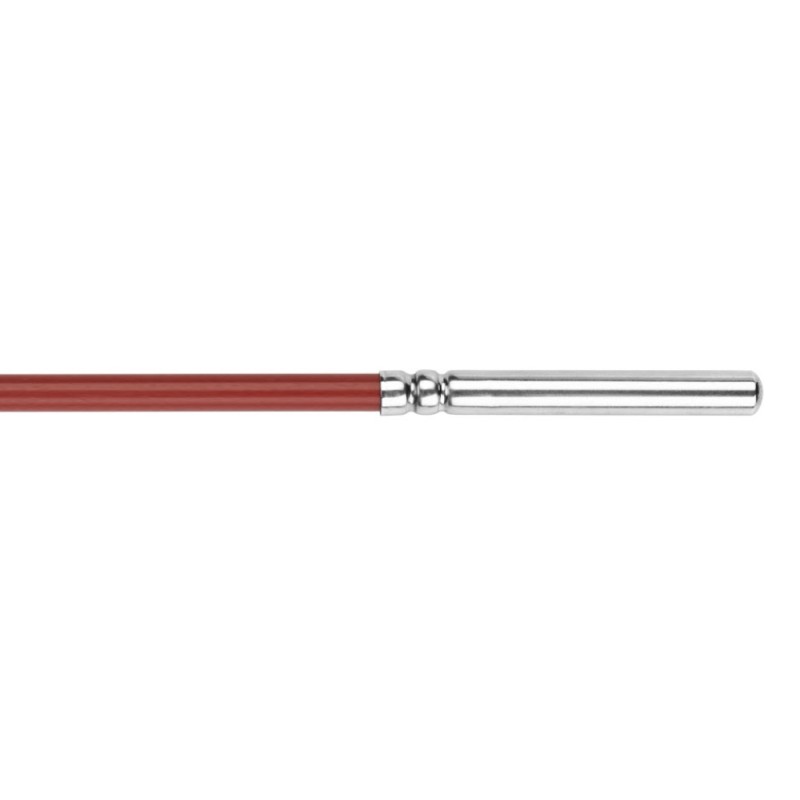

• Using a pre-charged PT100 probe or a third PT100 probe
• Factory calibration for various resistance ranges
• Supports resistance accuracy measurement and upload
• Battery monitoring and upload

Applications

• Logistics and supply chain management
• Food management.
• Cold chain solution
• Industrial monitoring and control

scope of delivery

• 1 x LTC2 Industrial LoRaWAN Temperature Transmitter
