DRAGINO Sensor LoRa LoRaWAN Temperatrue & Humudity Sensor LHT65-EU868-E2

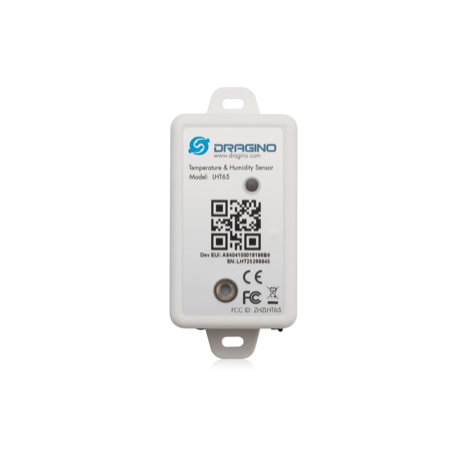

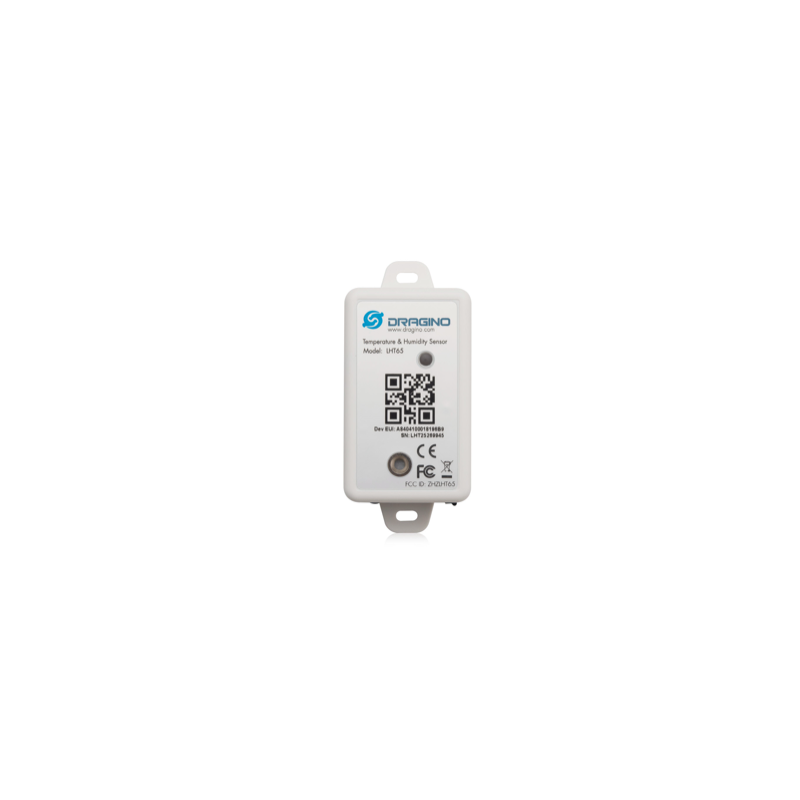

DRAGINO LHT65-EU868-E2 Temperature & Humidity Sensor

overview

The Dragino LHT65 temperature and humidity sensor is a long range LoRaWAN sensor. It contains a built-in SHT20 temperature and humidity sensor and has a port for external sensors such as temperature sensor, soil moisture sensor, tilt sensor, etc.

The LHT65 enables users to send data and achieve ultra-long range. It provides ultra-long range spread spectrum communication and high noise immunity with minimal power consumption. It targets professional wireless sensor network applications such as irrigation systems, smart meters, smart cities, building automation, etc.

The LHT65 has a built-in non-rechargeable 2400mAh battery that can be used for more than 10 years*.

LHT65 is fully compatible with the LoRaWAN v1.0.2 protocol and can work with standard LoRaWAN gateways.

LHT65 has 3200 date stamped records that can be retrieved with date stamp for further analysis.

Characteristics

• LoRaWAN Class A protocol
• Frequency bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
• AT commands to change parameters
• Remote configuration of parameters via LoRaWAN downlink
• Firmware upgrade possible via program port
• Built-in 2400mAh battery for more than 10 years of operation.
• Built-in temperature and humidity sensor
• Optional external sensors
• Three-color LED for status display
• 3200 set sensor recordings with time stamp

Applications

• Wireless alarm and security systems
• Home and building automation
• Automated meter reading
• Industrial monitoring and control
• Long range irrigation systems, etc.

scope of delivery

• 1 x DRAGINOLHT65
